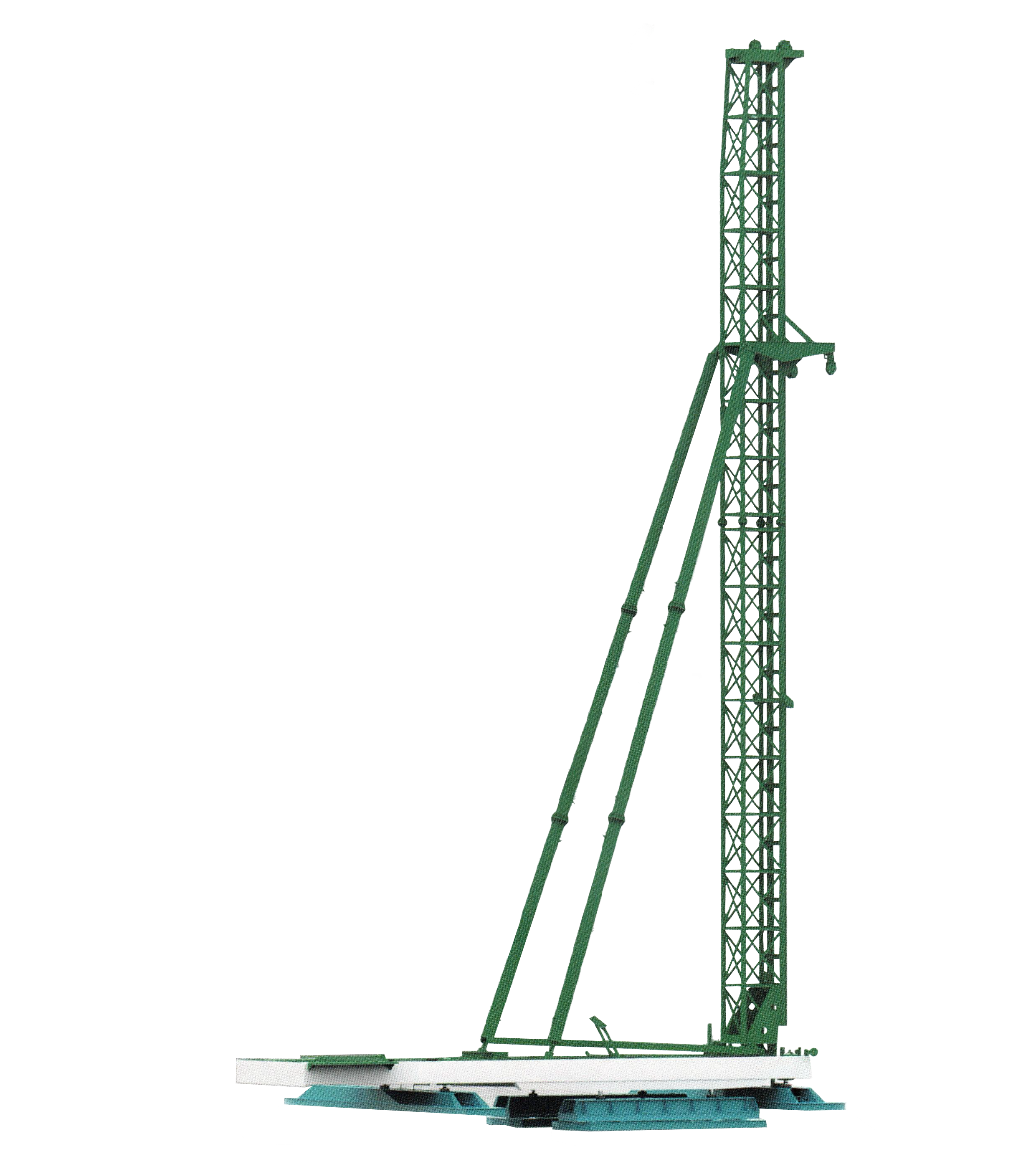

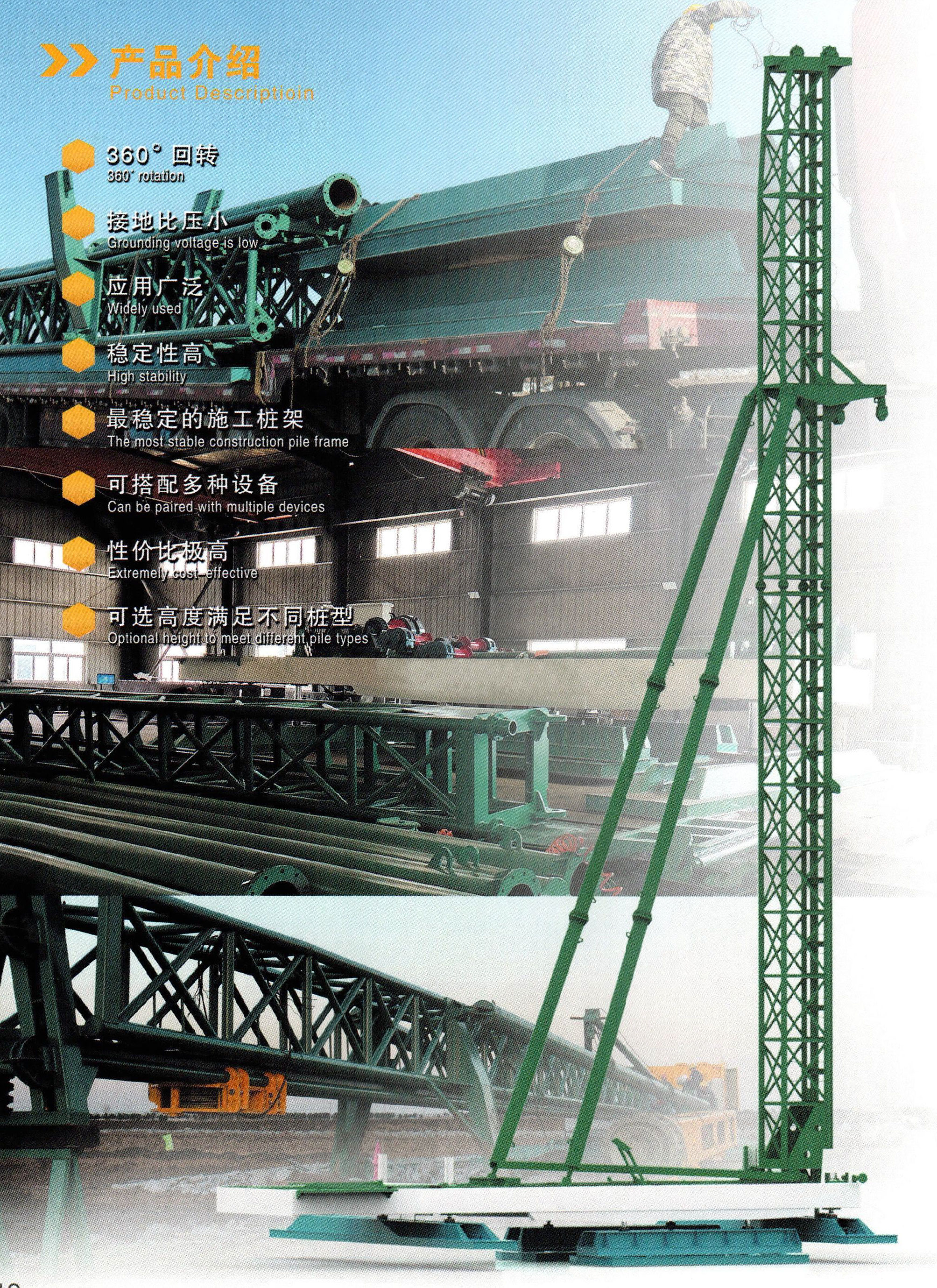

360°rotation Grounding voltage is low Widely used High stability The most stable construction pile frame Can be paired with multiple devices Extremely cost effective Optional height to meet different pile types

Send Inquiry

Product Description

Technical Data Of Series Foot-Step Piling Rig
Model	Unit	JB120B	JB136B	JB138B	JB168B
Leader Height	m	25	25	26	27
Leader guide	mm	600*φ102	600*φ102	600*φ102	600*φ102
Leader inclinations	°	Forward tilt 2° Back tilt 5°	Forward tilt 2° Back tilt 5°	Forward tilt 2° Back tilt 5°	Forward tilt 2° Back tilt 5°
Slope climbing capacity	°	2	2	2	2
Lock lever main winch 1 set	Max stength	8	8	10	12
	Rolling speed	0-30	0-30	0-30	0-30
	Rope	26NAT6*19W+NF1770-165m	26NAT6*19W+NF1770-165m	26NAT6*19W+NF1770-215m	26NAT6*19W+NF1770-222m
	Motor power	37KW-6/650 Gearbox	37KW-6/650 Gearbox	45KW-6/750 Gearbox	55KW-/750 Gearbox
Aux winch for pile lifting 2 sets	Max stength	3	3	3	3
	Rolling speed	0-30	0-30	0-30	0-30
	Wire Rope(pile lifting)	16NAT6*19W+NF1770-115m	16NA6*19W+NF1770-115m	16NA6*19W+NF1770-115m	20NAT6*19W+NF1770-138m
	Motor power	18.5KW-4/400 Gearbox	18.5KW-4/500 Gearbox	18.5KW-6/450 Gearbox	18.5KW-6/450 Gearbox
Aux winch for pile lifting 2 sets	Max stength	3	3	5	5
	Rolling speed	0-33	0-33	0-33	0-33
	Rope	18NAT6*19W+NF1770-110m	18NAT6*19W+NF1770-110m	22NAT6*19W+NF1770-10m	22NAT6*19W+NF 1770-100m
	Motor power	15KW-6/400 Gearbox	15KW-6/400 Gearbox	22KW-6/500 Gearbox	22KW-6/500 Gearbox
Platform rotating angle	°	13	13	13	13
Aux winch for pile lifting 2 sets	Long bridge cylinder and distance	φ110/φ70-2800	φ110/φ70-2800	φ110/φ70-2800	φ110/φ80-2800
	Long bridge step pace	2800	2800	2800	2800
	Short bridge cylinder and distance	φ125/φ70-1000	φ125/φ70-1000	φ125/φ70-1000	φ125/φ70-1000
	Short bridge step pace	1000	1000	800	800
	Long bridge loading pressure	0.028	0.028	0.028	0.028
	Short bridge loading pressure	0.029	0.029	0.029	0.029
Screw adjustment range	mm	0-300	0-300	0-300	0-300
Leg cylinder and stroke	mm	Front φ245/φ160-1100 rear φ225/φ140-1100	Front φ265/φ160-1100 rear φ225/φ140-1100	Front φ265/φ160-1100 rear φ225/φ140-1100	Front φ220/φ180-1100 rear φ200/φ160-1100
Hydraulic system	Motor power (kw)	30	30	30	30
Hydraulic system	Pressure(Mpa)	25	25	25	25
Net weight	t	58	60	64	69
Overall size(LWH)	m	13.59.125.8	13.59.125.8	159.127.5	159.128.5
Transporation	m	153.583.93	153.583.93	153.583.93	153.583.93
Applicable Hydraulic pressure Hammer	/	NDY16 and below	NDY20 and below	NDY25 and below	NDY32 and below

Technical Data Of Series Foot-Step Piling Rig

Frequently Asked Questions (FAQ)

What models are available in the Series Foot-Step Piling Rig?

The series includes four main models: JB120B, JB136B, JB138B, and JB168B, designed to accommodate different construction capacities and project scales.

What is the maximum leader height for these piling rigs?

The leader height ranges from 25 meters for the JB120B and JB136B models, 26 meters for the JB138B model, up to a maximum of 27 meters for the JB168B model.

Which hydraulic pressure hammers are compatible with each model?

Compatibility varies by model size: the JB120B supports NDY16 and below; the JB136B supports NDY20 and below; the JB138B supports NDY25 and below; and the heavy-duty JB168B supports NDY32 and below.

What are the transportation dimensions for these piling rigs?

All models in this series are designed with efficient transport configurations, sharing a standard shipping dimension of 15m * 3.58m * 3.93m (L*W*H).

What is the platform rotating angle and slope climbing capacity of the rigs?

Every model in this series features a platform rotating angle of 13° and a maximum slope climbing capacity of 2°, ensuring stability and precise positioning during operations.
