Driving shed reinforced structure strong and shock resistant.
Max stroke of hammer can recache 5.5m (Standard pilling stroke height up to 3.5 meters)
Guide rail equipped with double-row; chain makes machine high safety coefficient.
High frequency hydraulic hammer with borer pole diameter 85mm impact power up to 1400 joules.
Equipped with angle digital indicator to adjust angle quickly.
Guard rail vertical to the ground when piling, can most reduce the effect of vibration on pile perpendicularity.
Driving shed reinforced structure strong and shock resistant.

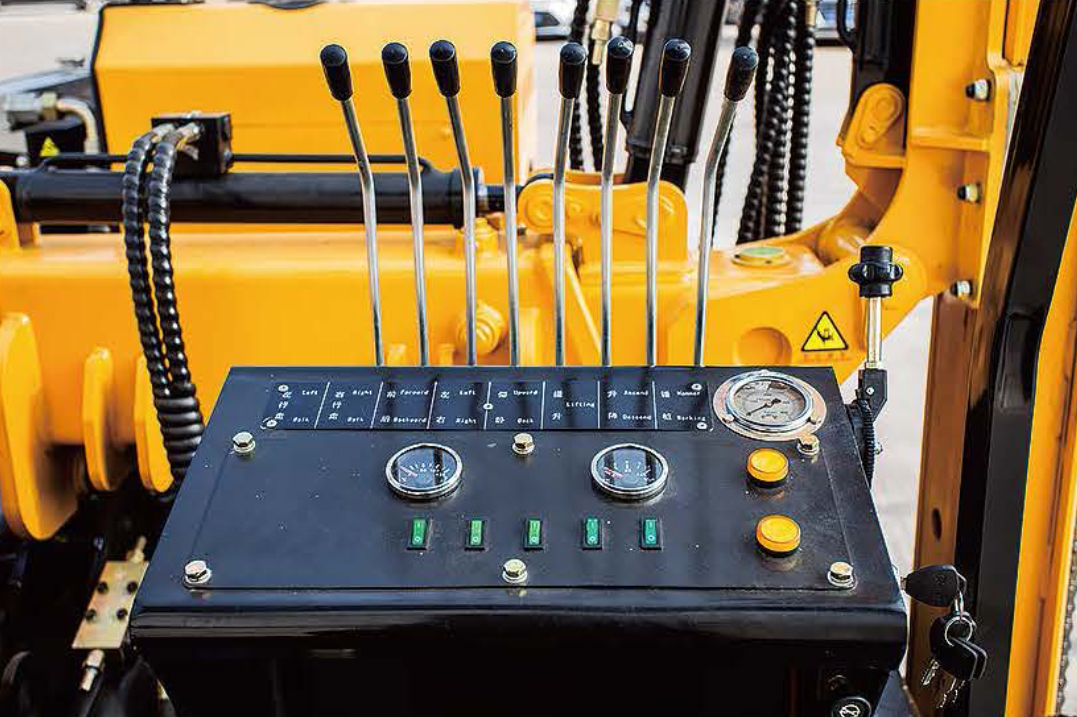

High control accuracy of operation valve Easy and smooth.
The crawler chassis is equipped with protection and make safety first.

Send Inquiry

Product Description

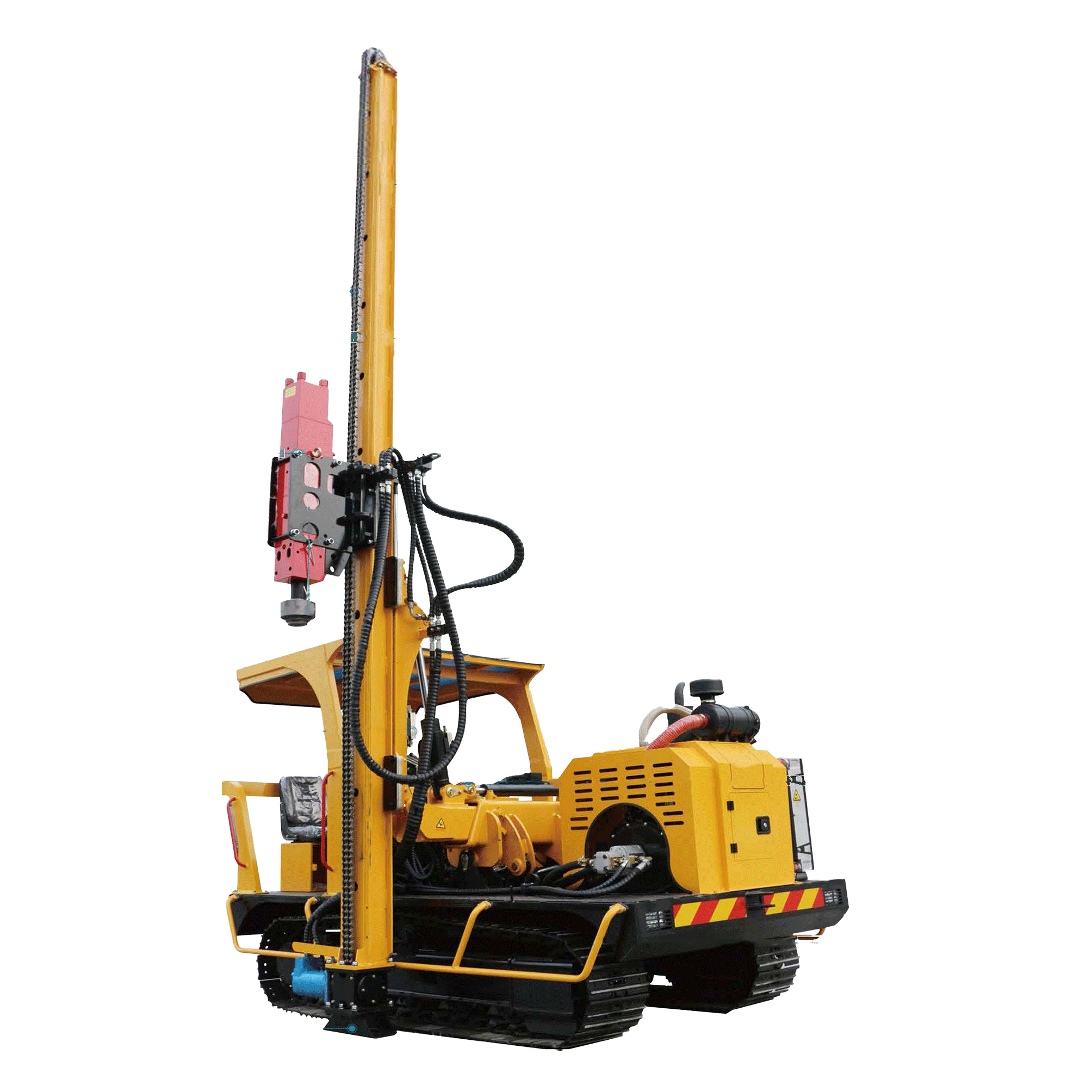

Hydraulic Piling Machine Crawler Chassis

Driving shed reinforced structure strong and shock resistant.
Max stroke of hammer can reach 5.5m (Standard piling stroke height up to 3.5 meters).
Guide rail equipped with double-row chain makes machine high safety coefficient.
High frequency hydraulic hammer with borer pole diameter 85mm impact power up to 1400 joules.
Equipped with angle digital indicator to adjust angle quickly.
Guard rail vertical to the ground when piling, can most reduce the effect of vibration on pile perpendicularity.
High control accuracy of operation valve Easy and smooth.

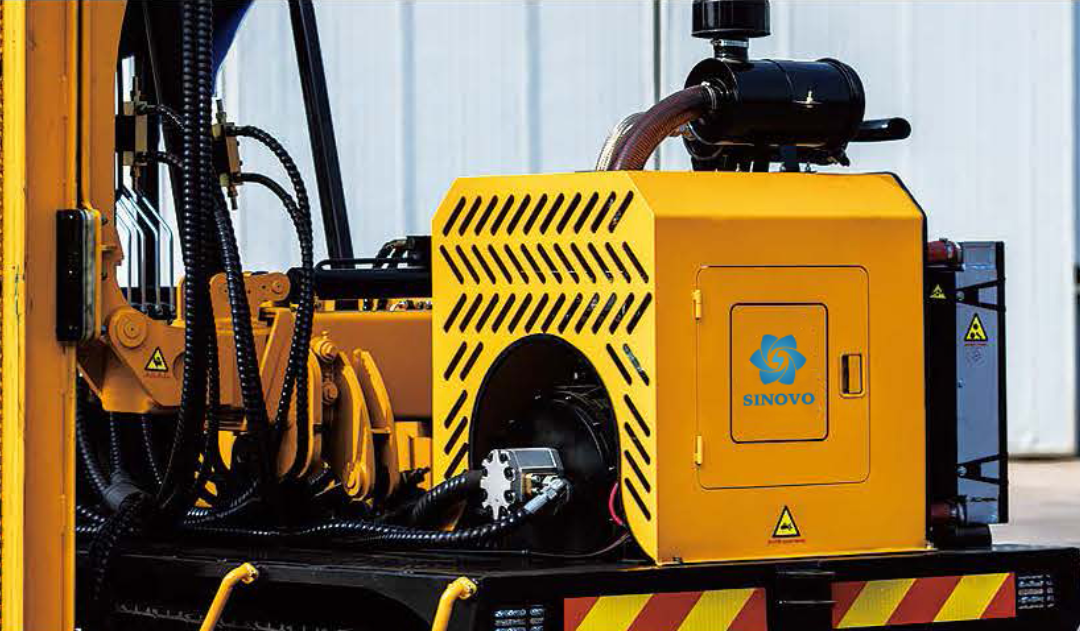

The crawler chassis is equipped with protection and make safety first.

TECHNICAL PARAMETERS
Transport Shape size (LWH)	6500 x 2200 x 2700 mm
Working Shape size (LWH)	3500 x 2200 x 7500 mm
Track size (LWH)	2550 x 1700 x 530 mm
Vehicle Weight	4500 - 5200 kg
Engine Power	70 kW
Flow Rate of Hydraulic System (Metric 1)	113.4 L/min
Flow Rate of Hydraulic System (Metric 2)	20 L/min
Mast Stroke	200 - 5500 mm
Piling Height	200 - 5500 mm
Hydraulic Hammer Type	Y360 (85mm drill rod)
Piling Efficiency	3200
Drilling Depth	≤ 3500 mm
Borehole Diameter	50 - 300 mm
Maximum Climbing Ability	30° (57.7%)
Maximum Walking Speed	3.8 km/h
Left and Right Sliding Stroke	≤ 500 mm
Maximum Inclination Angle of Sliding Guide Frame	Left 30° / Right 8°
Front and Rear Adjusting Angle of Frame	Front 75° / Rear 15°
Min. Ground Clearance	230 mm
Effective Capacity of Hydraulic Tank	80 L
Effective Capacity of Diesel Tank	80 L
