OEM TG70 Diaphragm Wall Equipment Manufacturers, Exporters

SINOVO International is a leading Chinese construction machinery exporter.Since our company was founded, we continually introduce top Chinese construction machinery enterprises and their products to international markets. We not only make more international customers know and approbate our products, but also gradually build up friendship with construction machinery customers all over the world.

Send Inquiry

Product Description

We are a leading Chinese construction machinery exporter. Since our company was founded, we continually introduce top Chinese construction machinery enterprises and their products to international markets. We not only make more international customers know and approbate our products, but also gradually build up friendship with construction machinery customers all over the world.

80 Meter depth hydraulic diaphragm wall equipments are underground structural elements principally used for retention systems and permanent foundation walls.

As a result of their undoubted strength, simplicity and low running cost, our TG Series cable-operated grabs for diaphragm Walls are widely used in the construction of foundations and trenches. Rectangular or semicircular jaws with their relative guides are interchangeable on the actual grab body. Unloading is done by taking advantage of the grab body's weight. When released by the rope, the grab descends with considerable force, thus helping unload material from the jaws.

Key Features & Advantages

1 The special main engine has good adaptability to working conditions and high stability of the whole machine.
2 Double winch single row rope structure, low loss of wire rope.
3 The construction is highly efficient and economical.
4 Optional ± 90° or 0-180° grab slewing device can meet the construction requirements of narrow space in the city.

Video Demonstration

Packaging & Delivery Details

Packaging Details: Nude Packing or by Container.
Port: Tianjin / Shanghai

Quantity (Units)	1 - 1	>1
Est. Time (days)	30	To be negotiated

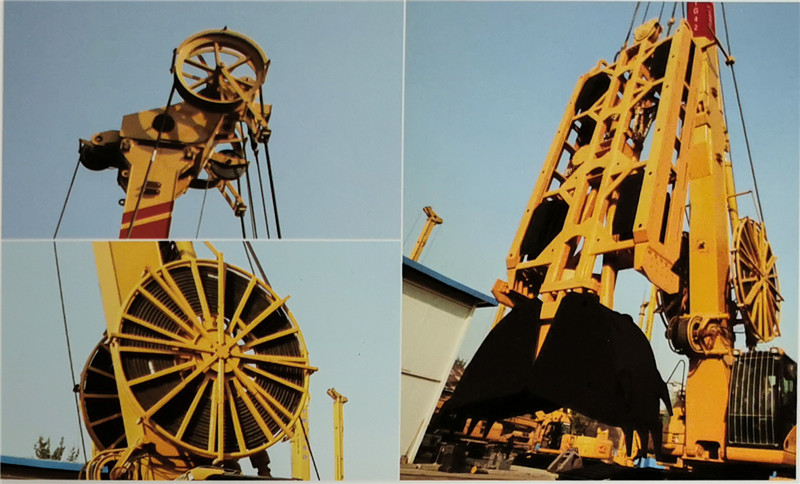

Hydraulic Diaphragm Wall Equipment Image 1

Technical Specifications

Parameters	Euro Standards
Width of trench	800 - 1800mm
Depth of trench	80m
Max. pull force	700kN
Volume of grab bucket	1.1 - 2.1 m³
Undercarriage Model	CAT336D / Self undercarriage
Engine power	261KW / 266kw
Pull force of main winch (The first layer)	350kN
Extendable undercarriage (mm)	800mm
Track shoe width	3000 - 4300mm
System Pressure	35Mpa

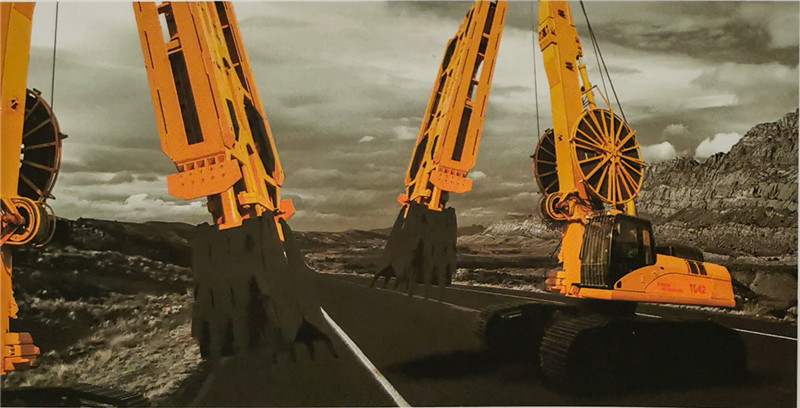

Hydraulic Diaphragm Wall Equipment Image 2

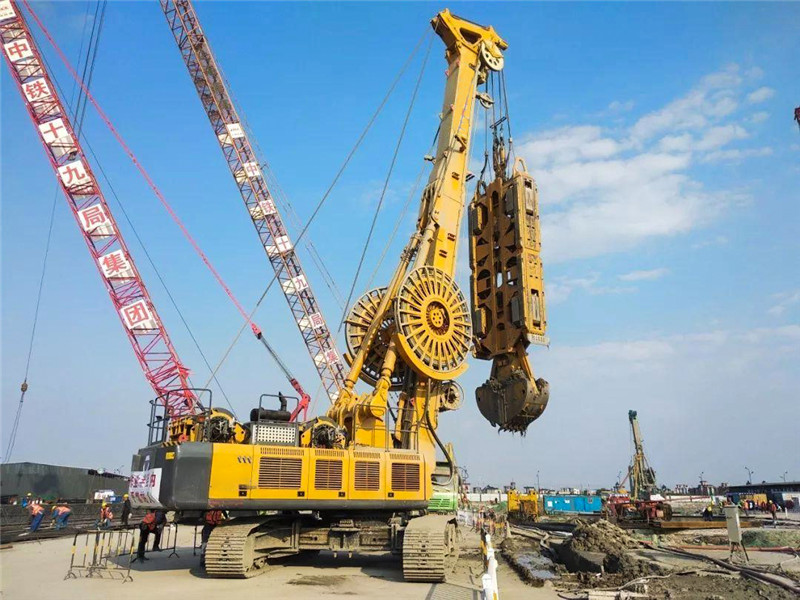

Hydraulic Diaphragm Wall Equipment Image 3

Frequently Asked Questions

Do you have testing facilities?

Yes, our factory has all kinds of testing facilities, and we can send their pictures and test documents to you.

Will you arrange installation and training?

Yes, our professional engineers will guide on installation and commissioning at site and provide technical training as well.

Which payment terms can you accept?

Normally we can work on T/T term or L/C term, and sometimes DP term.

What logistics ways can you work for shipment?

We ship construction machinery via various methods: (1) 80% by sea to major continents (Africa, South America, Middle East, Oceania, Southeast Asia) via container or RoRo/Bulk. (2) By road or rail to inland neighboring countries (Russia, Mongolia, Turkmenistan, etc.). (3) By international courier (DHL, TNT, Fedex) for urgent light spare parts.

What are the main applications of the 80m depth hydraulic diaphragm wall equipment?

They are underground structural elements principally used for retention systems and permanent foundation walls in deep excavation projects.

How does the grab slewing device benefit urban construction?

The optional ± 90° and 0-180° grab slewing devices allow the machine to adapt efficiently to the tight and narrow construction spaces commonly found in urban environments.
