Discount Used XCMG XR360 rotary drilling rig Factory, Quotes

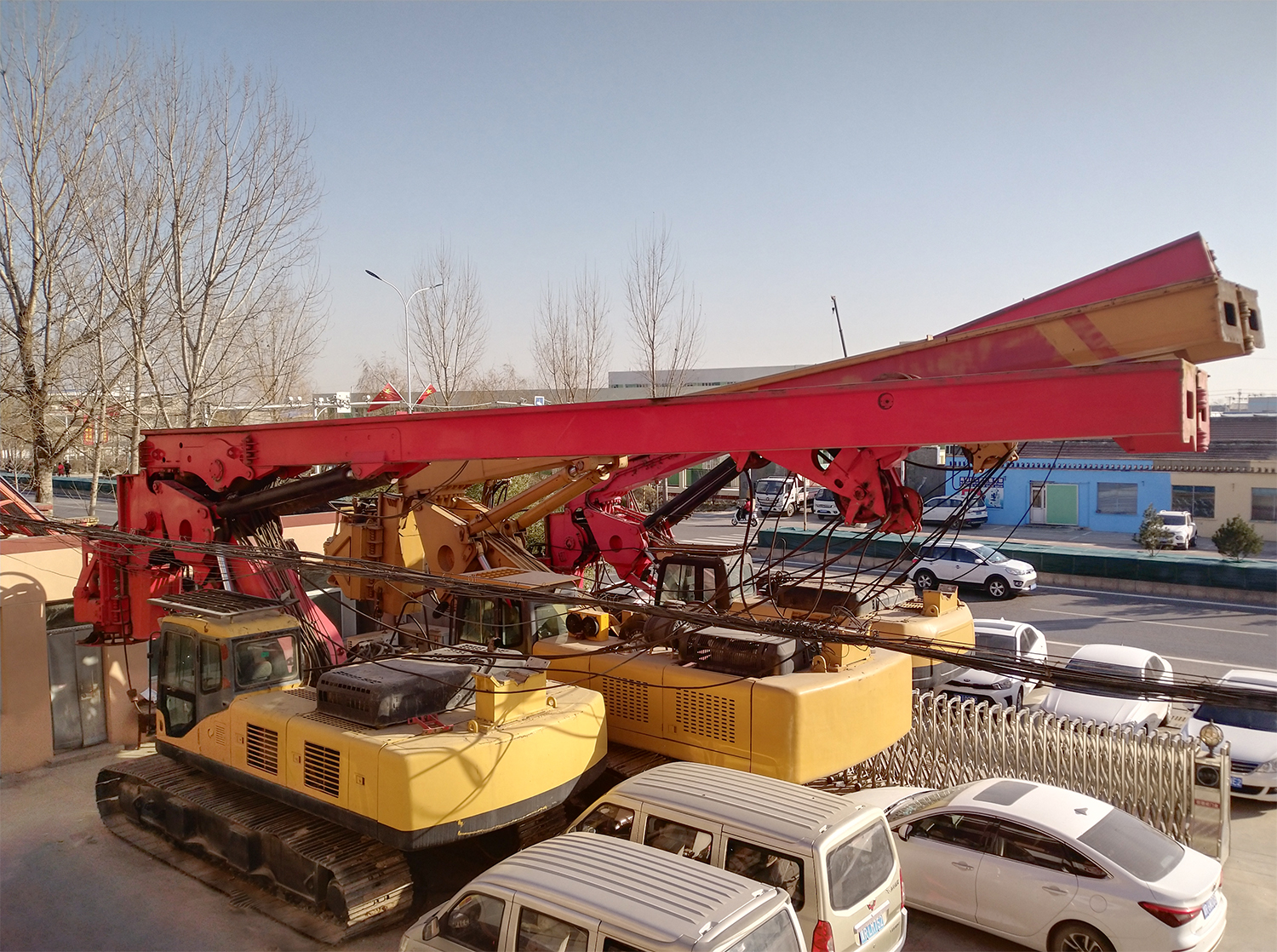

There is a used XCMG XR360 rotary drilling rig for sale, with maximum diameter and depth of 2500mm and 96m, 7500 working hours, equipped with 5 * 508 * 15m friction Kelly bar, the machine is in nice condition and refurbished。

Send Inquiry

Product Description

Item	Unit	Parameter
Engine
Model	-	QSM11-C400
Rated Power	kW	298
Rotary Drive
Max. output torque	kN﹒m	360
Rotary Speed	r/min	5-20
Max. Drilling Diameter	mm	φ2500
Max. Drilling Depth	m	92（102m）
Crowd cylinder
Max. pull-down piston push	kN	240
Max. pull-down piston pull	kN	320
Max. pull-down piston stroke	m	6
Crowd Winch
Max. pull-down piston push	kN	/
Max. pull-down piston pull	kN	/
Max. pull-down piston stroke	m	/
Main Winch
Max. pulling force	kN	320
Max. line speed	m/min	72
Auxiliary Winch
Max. pulling force	kN	100
Max. line speed	m/min	65
Mast Rake（Slide/forwards/backwards）	°	±4°/5°/15°
Undercarriage
Max. traveling speed	km/h	1.5
Max. grade ability	%	35
Min. clearance	mm	445
Track shoe width	mm	800
Distance between tracks	mm	3500-4800
Hydraulic system
Working pressure	MPa	32
Overall Drilling Weight	t	92
Dimension
Working condition	mm	11000×4800×24586
Transportation condition	mm	17380×3500×3810

Key Rig Highlights

Special hydraulic telescopic crawler chassis and large-diameter slewing ring have super stability and convenient transportation.
Cummins turbocharged engine adopts advanced electro-hydraulic control.
Maximum drilling diameter is φ2500 mm, maximum drilling depth is 92 m, equipped with model QSM11 engine.
It's applicable for concrete cast in situ pile for foundation construction such as urban construction, railway, highway, bridge, subway and building.

Frequently Asked Questions (FAQ)

What is the engine model and output of the XR360 rotary drilling rig?

The rig features a Cummins QSM11-C400 engine with a rated output power of 298 kW, using advanced electro-hydraulic controls.

What are the maximum drilling capabilities of this used XR360 rig?

This used XCMG XR360 rotary drilling rig offers a maximum drilling diameter of 2500 mm and a maximum drilling depth of up to 96 meters.

What is the condition and configuration of this used drilling rig?

The machine is in refurbished, excellent working condition with 7,500 working hours, and it comes equipped with a 5 * 508 * 15m friction Kelly bar.

What are the primary applications of this rotary drilling rig?

It is specifically designed for concrete cast-in-situ pile foundation construction projects, including urban construction, highways, railways, bridges, subways, and buildings.

How is the transportability of the XCMG XR360 rig?

The machine features a special hydraulic telescopic crawler chassis that allows the distance between tracks to adjust from 3500mm to 4800mm, ensuring stability during work and convenient size during transportation.
