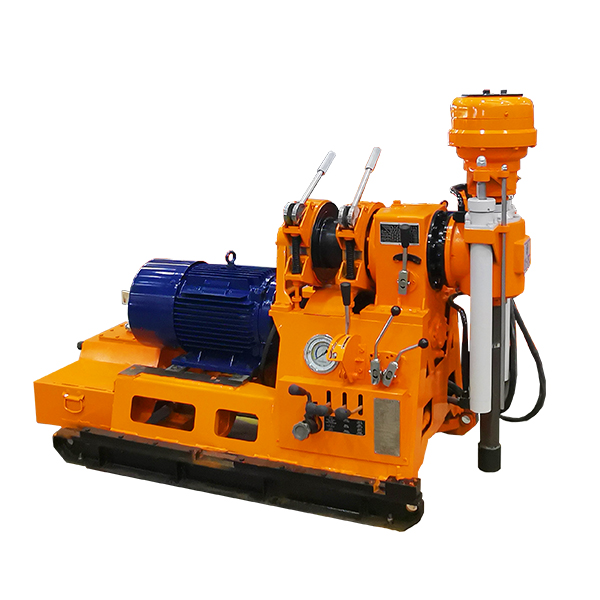

Cheap XY-2PC Core Drilling Rig Exporter, Companies

This drilling rig is used for drilling tunnels and galleries, as well as geological area surveys; It is also suitable for geological surveys in construction, hydropower engineering, highways, railways, ports and other engineering fields,as well as drilling micro pile foundation holes. By replacing a pair of bevel gears, the drilling rig obtains two sets of rotational speeds.This machine is lightweight and compact, making it particularly suitable for construction in water and electricity systems.

Send Inquiry

Product Description

Drilling Capacity

150 - 300 m

Max Torque

1,110 Nm

Angle Range

0° - 90°

Body Weight

650 kg

Fundamental Parameters

Parameter Item	Unit	Specification Detail	Value (XY-2PC)
Drilling capacity	m	-	150 - 300
Spindle speed	r/min	Forward	81; 164; 289; 334; 587; 1190
Spindle speed	r/min	Reverse	98; 199
Max torque	Nm	-	1110
Angle range	°	-	0 - 90
Spindle max pull force	KN	-	45
Spindle stroke	mm	-	495
Hoist max lift capacity (single rope)	KN	-	20
Spindle inner dia	mm	Hexagonal hole	ф51 x 46
Power unit	kW	Electric motor	YD180L-8/4 11/17kW
Power unit	kW	Diesel engine	2100D 13.2kW
Overall dimension	mm	L x W x H	1800 x 800 x 1300
Drill body weight (excluding power)	kg	-	650

Frequently Asked Questions

What is the drilling capacity of the XY-2PC drilling rig?

The XY-2PC features a drilling depth capacity ranging from 150 meters to 300 meters, making it highly versatile for various geotechnical and core drilling tasks.

What are the available power options for the XY-2PC?

It supports dual power configuration options: an electric motor (model YD180L-8/4 rated at 11/17kW) or a diesel engine (model 2100D rated at 13.2kW) to match different operational environments.

How many spindle speeds does this drilling rig support?

The rig is designed with multiple speed options. It offers six forward spindle speeds (81, 164, 289, 334, 587, 1190 r/min) and two reverse speeds (98, 199 r/min) for optimal drilling control.

What is the maximum torque and spindle pull force of the XY-2PC?

The XY-2PC delivers a maximum torque of 1110 Nm and boasts a maximum spindle pull force of 45 KN, ensuring powerful penetration through diverse geological strata.

What is the weight and dimension profile of the drill body?

The drill body has a compact footprint with overall dimensions of 1800 x 800 x 1300 mm. Excluding the power unit, the structural weight of the drill body is 650 kg.

Can the drilling angle be adjusted on the XY-2PC?

Yes, the spindle angle is fully adjustable, supporting an angle range from 0 to 90 degrees, allowing for both vertical and inclined drilling applications.
