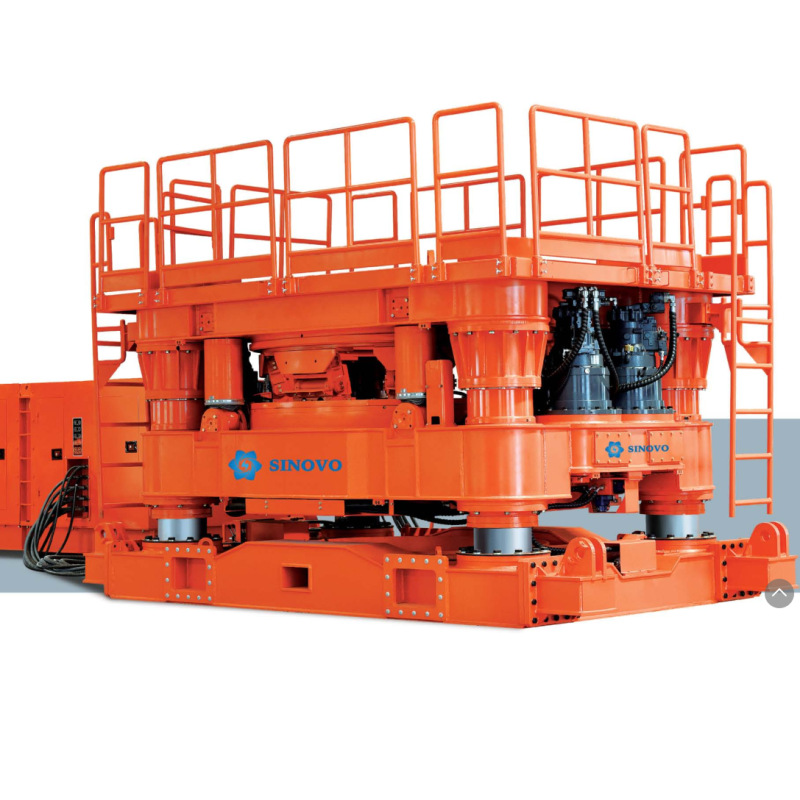

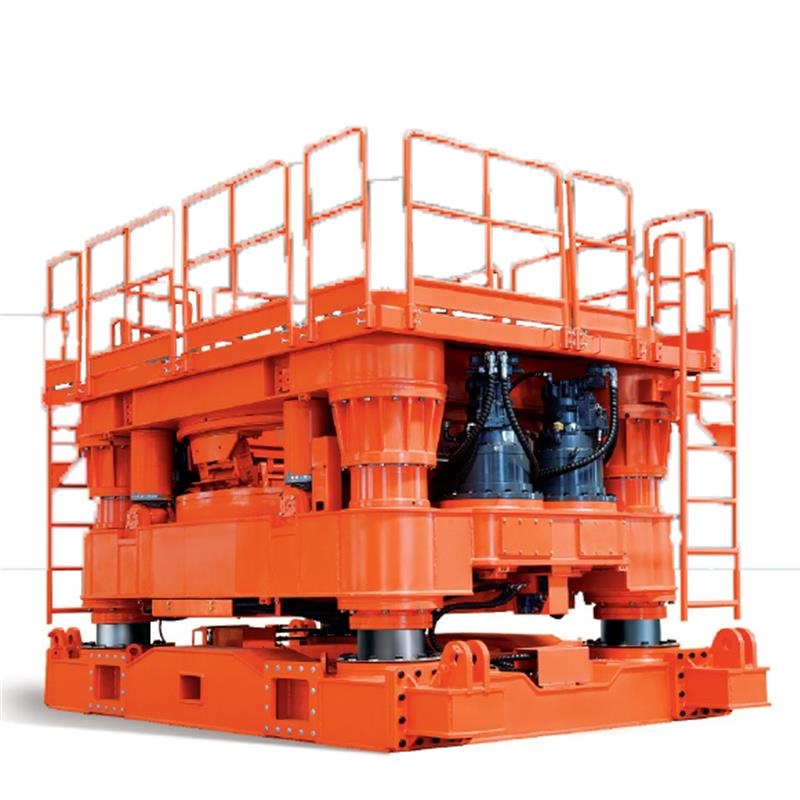

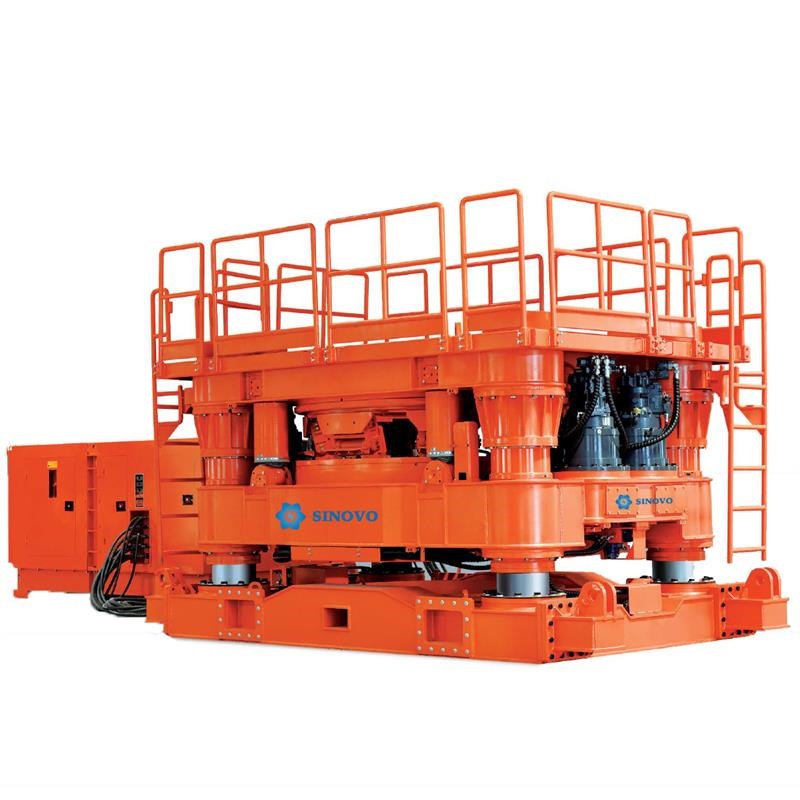

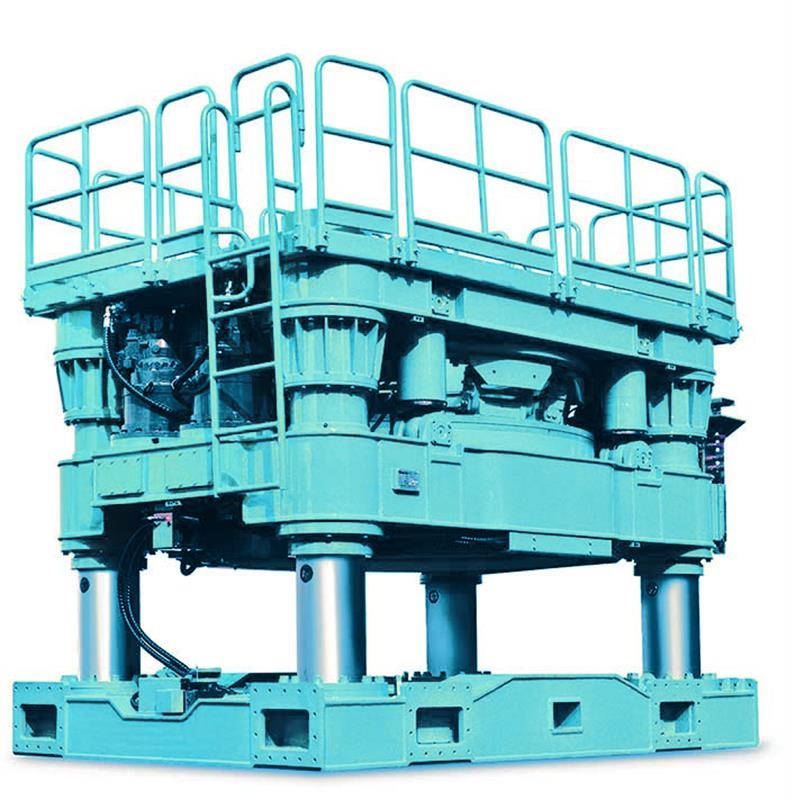

The casing rotator is a new type drill with the integration of the full hydraulic power and transmission, and the combination control of machine, power and fluid. It is a new, environmentally-friendly and highly efficient drilling technology. In recent years, it is widely adopted in the projects such as the constructions of urban subway, articulation pile of deep foundation pit enclosure, clearance of waste piles (underground obstructions ), high-speed rail, road and bridge, and urban construction piles, as well as the reinforcement of reservoir dam.
The casing rotator is a new type drill with the integration of the full hydraulic power and transmission, and the combination control of machine, power and fluid. It is a new, environmentally-friendly and highly efficient drilling technology. In recent years, it is widely adopted in the projects such as the constructions of urban subway, articulation pile of deep foundation pit enclosure, clearance of waste piles (underground obstructions), high-speed rail, road and bridge, and urban construction piles, as well as the reinforcement of reservoir dam.
The successful research of this brand new process method has realized the possibilities for the construction workers to conduct the construction of casing pipe, displacement pile, and underground continuous wall, as well as the possibilities for the pipe-jacking and shield tunnel to pass through the various pile foundations without barriers, when the obstructions, such as the gravel and boulder formation, cave formation, thick quicksand stratum, strong necking down formation, various pile foundation and steel reinforced concrete structure, are not removed.
The construction method of casing rotator has successfully completed construction missions of more than 5000 projects at places of Singapore, Japan, Hongkong District, Shanghai, Hangzhou, Beijing and Tianjin. It certainly will play a bigger role in the future urban construction and other pile foundation construction fields.
Applications & Capabilities
( 1 ) Foundation pile, continuous wall
Foundation piles for high-speed rail, road and bridge and house building.
Articulation pile constructions which are required to be excavated, such as subway platforms, underground architectures, continuous walls.
Water retaining wall of reservoir reinforcement.
( 2 ) Drilling gravels, boulders and karst caves
It is allowable to conduct the foundation pile construction at mountain lands with gravel and boulder formations.
It is allowable to conduct operation and cast the foundation piles at the thick quicksand formation and necking down stratum or the filling layer.
Conduct rock-socketed drilling to the rock stratum, cast the foundation pile.
( 3 ) Clear the underground obstructions
During the urban construction and bridge rebuilding, the obstructions such as the steel reinforced concrete pile, steel pipe pile, H steel pile, pc pile and wood pile can be cleared directly, and cast the foundation pile on the spot.
( 4 ) Cut the rock stratum
Conduct the rock-socketed drilling to the cast-in-place piles.
Drill through-holes on the rock bed (shafts and ventilation holes)
( 5 ) Deep excavation
Conduct the in-place casting or steel pipe pile inserting for the deep foundation improvement.
Excavate deep wells for construction use in the constructions of reservoir and tunnel.
Key Benefits & Advantages
1
No noise, no vibration, and high safety.
2
Without mud, clean working surface, good environmental friendliness, avoiding the possibility for mud to enter the concrete, high pile quality, enhancing the bond stress of concrete to the steel bar.
3
During construction drilling, the characteristics of stratum and rock can be directly distinguished.
4
The drilling speed is fast and reaches about 14m/h for the general soil layer.
5
The drilling depth is large and reaches about 80m according to the situation of soil layer.
6
The hole forming verticality is easy to master, which can be accurate to 1/500;
7
No hole collapse will be caused, and the hole forming quality is high.
8
The hole forming diameter is standard, with little filling factor. Being compared with other hole forming methods, it can save a lot of concrete usage.
9
The hole clearing is thorough and fast. The drilling mud at the hole bottom can be clear to about 3.0cm.
Technical Specifications
TR1305H
Working device
Diameter of drill hole
mm
Φ600-Φ1300
Rotary torque
KN.m
1400/825/466 Instantaneous 1583
Rotary speed
rpm
1.6/2.7/4.8
Lower pressure of sleeve
KN
Max.540
Pulling force of sleeve
KN
2440 Instantaneous 2690
Pressure-pulling stroke
mm
500
Weight
ton
25
Hydraulic power station
Engine model
-
Cummins QSB6.7-C260
Engine Power
Kw/rpm
201/2000
Fuel consumption of engine
g/kwh
222
Weight
ton
8
Control mode
-
Wired remote control/ Wireless remote control
TR1605H
Diameter of drill hole
mm
Φ800-Φ1600
Rotary torque
KN.m
1525/906/512 Instantaneous 1744
Rotary speed
rpm
1.3/2.2/3.9
Lower pressure of sleeve
KN
Max.560
Pulling force of sleeve
KN
2440 Instantaneous 2690
Pressure-pulling stroke
mm
500
Weight
ton
28
Engine model
-
Cummins QSB6.7-C260
Engine Power
Kw/rpm
201/2000
Fuel consumption of engine
g/kwh
222
Weight
ton
8
Control mode
-
Wired remote control/ Wireless remote control
TR1805H
Diameter of drill hole
mm
Φ1000-Φ1800
Rotary torque
KN.m
2651/1567/885 Instantaneous 3005
Rotary speed
rpm
1.1/1.8/3.3
Lower pressure of sleeve
KN
Max.600
Pulling force of sleeve
KN
3760 Instantaneous 4300
Pressure-pulling stroke
mm
500
Weight
ton
38
Engine model
-
Cummins QSM11-335
Engine Power
Kw/rpm
272/1800
Fuel consumption of engine
g/kwh
216
Weight
ton
8
Control mode
-
Wired remote control/ Wireless remote control
TR2005H
Diameter of drill hole
mm
Φ1000-Φ2000
Rotary torque
KN.m
2965/1752/990 Instantaneous 3391
Rotary speed
rpm
1.0/1.7/2.9
Lower pressure of sleeve
KN
Max.600
Pulling force of sleeve
KN
3760 Instantaneous 4300
Pressure-pulling stroke
mm
600
Weight
ton
46
Engine model
-
Cummins QSM11-335
Engine Power
Kw/rpm
272/1800
Fuel consumption of engine
g/kwh
216
Weight
ton
8
Control mode
-
Wired remote control/ Wireless remote control
TR2105H
Diameter of drill hole
mm
Φ1000-Φ2100
Rotary torque
KN.m
3085/1823/1030 Instantaneous 3505
Rotary speed
rpm
0.9/1.5/2.7
Lower pressure of sleeve
KN
Max.600
Pulling force of sleeve
KN
3760 Instantaneous 4300
Pressure-pulling stroke
mm
500
Weight
ton
48
Engine model
-
Cummins QSM11-335
Engine Power
Kw/rpm
272/1800
Fuel consumption of engine
g/kwh
216
Weight
ton
8
Control mode
-
Wired remote control/ Wireless remote control
TR2605H
Diameter of drill hole
mm
Φ1200-Φ2600
Rotary torque
KN.m
5292/3127/1766 Instantaneous 6174
Rotary speed
rpm
0.6/1.0/1.8
Lower pressure of sleeve
KN
Max.830
Pulling force of sleeve
KN
4210 Instantaneous 4810
Pressure-pulling stroke
mm
750
Weight
ton
56
Engine model
-
Cummins QSB6.7-C260
Engine Power
Kw/rpm
194/2200
Fuel consumption of engine
g/kwh
222
Weight
ton
8
Control mode
-
Wired remote control/ Wireless remote control
TR3205H
Diameter of drill hole
mm
Φ2000-Φ3200
Rotary torque
KN.m
9080/5368/3034 Instantaneous 10593
Rotary speed
rpm
0.6/1.0/1.8
Lower pressure of sleeve
KN
Max.1100
Pulling force of sleeve
KN
7237 Instantaneous 8370
Pressure-pulling stroke
mm
750
Weight
ton
96
Engine model
-
Cummins QSM11-335
Engine Power
Kw/rpm
2X272/1800
Fuel consumption of engine
g/kwh
216X2
Weight
ton
13
Control mode
-
Wired remote control/ Wireless remote control

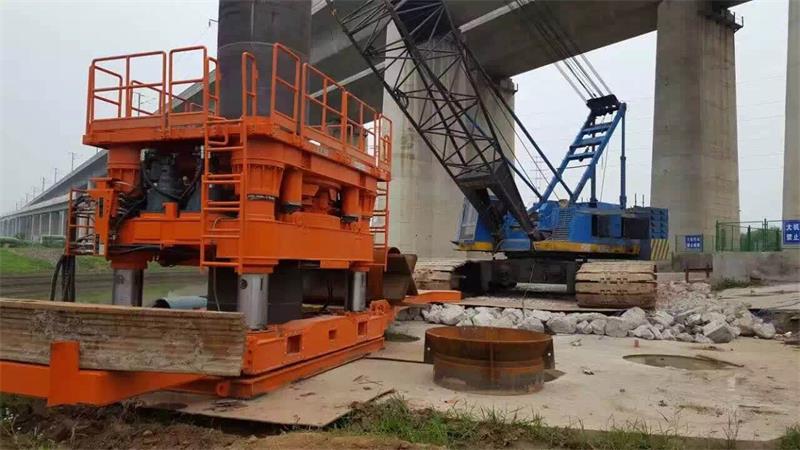

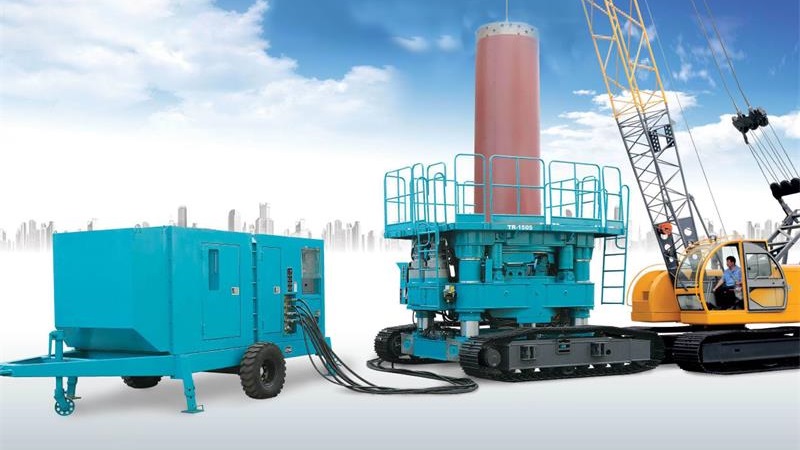

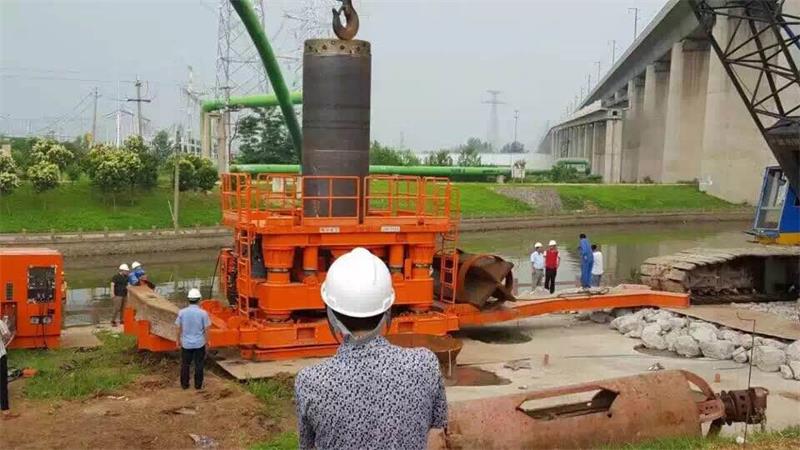

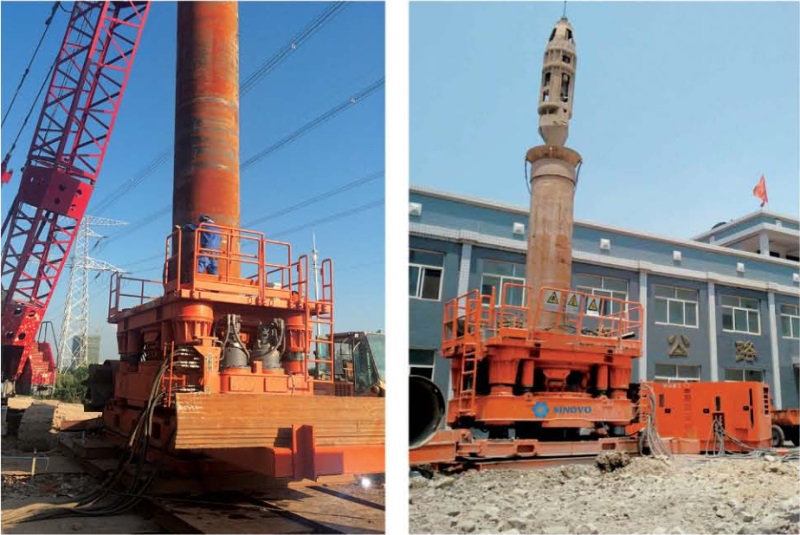

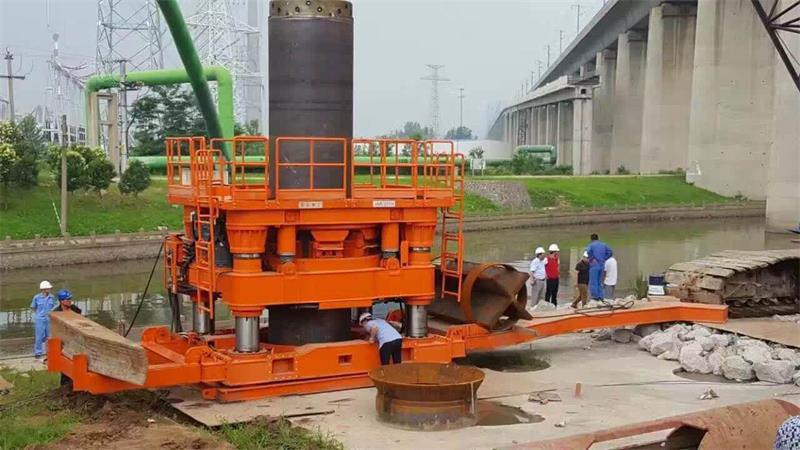

Site Gallery
Frequently Asked Questions
What is a casing rotator and where is it used?
A casing rotator is a new, highly efficient, and environmentally-friendly drilling technology featuring integrated hydraulic power, transmission, and multi-system controls. It is widely used in urban subway construction, deep foundation pit articulation piles, waste pile clearance, high-speed rail, road and bridge construction, and reservoir dam reinforcement.
Can the casing rotator operate in complex geological formations?
Yes. The construction method allows successful pile foundation operation in difficult strata such as gravel and boulder formations, karst caves, thick quicksand layers, strong necking down formations, and directly through steel-reinforced concrete structures without pre-removal.
What are the environmental benefits of the casing rotator?
The casing rotator operates with zero vibration and minimal noise. Additionally, it does not require drilling mud, keeping the working surface clean and eliminating the risk of mud contaminating the concrete, which results in higher overall pile quality.
What is the drilling speed and maximum depth capabilities?
The casing rotator delivers high drilling speeds of approximately 14 meters per hour in standard soil layers. Depending on the soil conditions, it can achieve a maximum drilling depth of up to 80 meters.
How accurate is the verticality of the hole forming?
The verticality of hole forming is exceptionally easy to master and can be accurately controlled to 1/500. This ensures high-quality hole forming and prevents hole collapse during drilling.
How does the casing rotator clear underground obstructions?
During urban construction or bridge rebuilding, the casing rotator can directly cut and clear underground obstructions—including steel reinforced concrete piles, steel pipe piles, H-steel piles, PC piles, and wood piles—allowing new foundation piles to be cast in-place directly on site.
