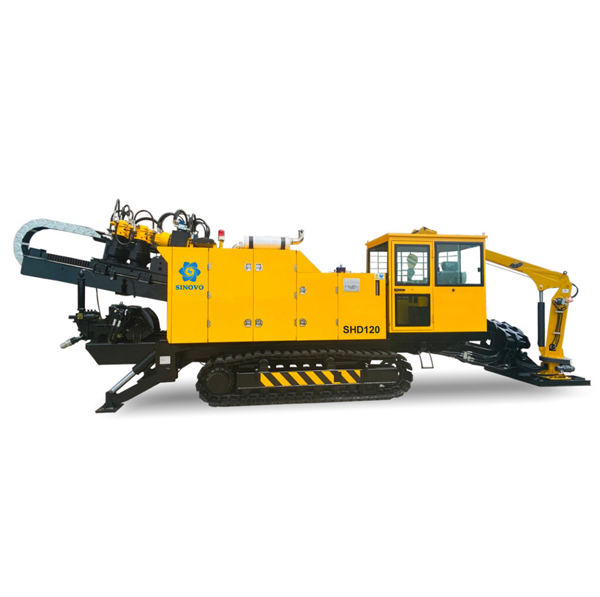

The rotation and thrust is equipped with USA Sauer closed-circuit system, which is efficient, stable and reliable. Rotation motor is originally imported French Poclain brand which is famous all over the world, and push & pull motor is Germany Rexroth and which increases work efficiency more than 20%, and totally saves about 20% energy compared with traditional system.
Hydraulic control is adopted for rotation and push & pull, reducing the faults resulted from the aging of electrical components, realizing more stable and reliable control and quicker response.
It is equipped with Cummins engine specialized in engineering machinery with strong power.

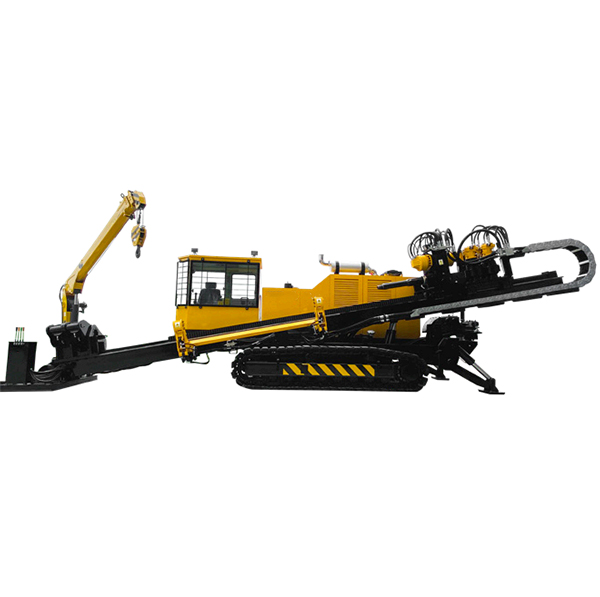

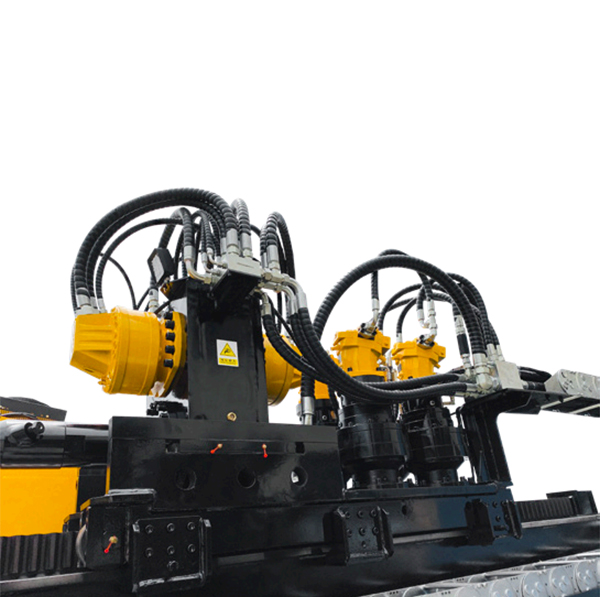

Driving head reserves reinforced power (push & pull force). Push & pull force can be increased to 1800KN, which ensures the safety of the big diameter construction.
Four bar linkage luffing structure is adopted for main girder, which highly increases entry angle range and ensures the large angle and rig tracks are not off ground, having improved the safety performance.
Wireless-control walking system can be used to ensure the safety in the process of walk, transfer and load & unload.
Full lifted manipulator is convenient for loading and unloading drill rod, which can greatly reduce the workers labor intensity, and improve work efficiency.
With Φ114×6000mm drill rod, the machine can be used in medium field area, meeting the requirement for high efficiency construction in small place.
Main hydraulic components are from the international first-class hydraulic component manufacturer, which greatly improve the reliability of the product performance and safety.
Electric design is reasonable with low failure rate, which is easy to maintain.
Push & pull contains rack and pinion push-pull system, which is good for high efficiency, long lifespan, stable work, and maintenance is also convenient.
Steel track with rubber plate can be loaded heavily and walks on all kinds of roads as well.
| Parameter | Specification Value |
|---|---|
| Engine Power | 264/2200KW |
| Max Thrust force | 1200/1800KN |
| Max Pullback force | 1200/1800KN |
| Max Torque | 42000N.M |
| Max Rotary speed | 140rpm |
| Max Moving speed of power head | 38m/min |
| Max Mud pump flow | 800L/min |
| Max Mud pressure | 10±0.5Mpa |
| Size(L*W*H) | 11800×2550×2650mm |
| Weight | 22T |
| Diameter of drilling rod | Φ114mm |
| Length of drilling rod | 6m |
| Max diameter of pullback pipe | Φ1500mm (Soil Dependent) |
| Max construction length | 1000m (Soil Dependent) |
| Incidence Angle | 11~22° |
| Climbing Angle | 15° |
This drilling rig is equipped with a high-power Cummins engine specialized in engineering machinery, delivering a power rating of 264/2200KW.
The standard thrust and pullback force is 1200KN. However, the driving head reserves reinforced power, allowing the maximum thrust and pullback force to be increased up to 1800KN to ensure safe operation during large diameter construction.
This system utilizes Φ114mm diameter drill rods with a length of 6 meters (6000mm), which makes it highly suitable for high-efficiency construction in confined or small-to-medium field areas.
Depending on soil conditions, the machine supports a maximum pullback pipe diameter of Φ1500mm and a maximum construction length of up to 1000 meters.
By integrating a USA Sauer closed-circuit system, an imported French Poclain rotation motor, and a Germany Rexroth push & pull motor, the system increases operational efficiency by more than 20% and saves approximately 20% energy compared to traditional systems.
The machine features steel tracks equipped with protective rubber plates. This setup allows it to carry heavy loads while ensuring it can walk safely on all kinds of road surfaces without causing damage.
