| Name | Specification | Bucket Height | Bucket Type | Bucket Wall Thickness | Thickness of Inner Bottom Plate (mm) | Thickness of Outer Base Plate (mm) | Teeth Quantity pc | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| Double bottom drilling teeth | 0.6M | 1200 | Straight | 20 | 40 | 50 | 8 | 687 |
| 0.7M | 1200 | Straight | 20 | 40 | 50 | 9 | 810 | |
| 0.8M | 1200 | Straight | 20 | 40 | 50 | 12 | 963 | |
| 0.9M | 1200 | Straight | 20 | 40 | 50 | 13 | 1150 | |
| 1.0M | 1200 | Straight | 20 | 40 | 50 | 15 | 1320 | |
| 1.1M | 1200 | Straight | 20 | 40 | 50 | 15 | 1475 | |
| 1.2M | 1200 | Straight | 20 | 40 | 50 | 18 | 1670 | |
| 1.3M | 1200 | Straight | 20 | 40 | 50 | 20 | 1865 | |
| 1.4M | 1200 | Straight | 20 | 40 | 50 | 20 | 2100 | |
| 1.5M | 1200 | Straight | 20 | 40 | 50 | 21 | 2310 | |
| 1.6M | 1200 | Straight | 20 | 40 | 50 | 22 | 2550 | |
| 1.8M | 1000 | Straight | 20 | 40 | 50 | 25 | 3332 | |
| 2.0M | 1000 | Straight | 20 | 40 | 50 | 27 | 3868 | |
| 2.2M | 800 | Straight | 25 | 40 | 50 | 29 | 4448 | |
| 2.4M | 800 | Straight | 25 | 40 | 50 | 33 | 5394 | |
| 2.5M | 800 | Straight | 25 | 40 | 50 | 33 | 5791 | |
| 2.8M | 800 | Straight | 25 | 40 | 50 | 33 | 6790 | |
| 3.0M | 800 | Straight | 30 | 40 | 50 | 39 | 8565 |
Made of plasma surfacing powder, butt-welded by a plasma butt welder. During product use, the butt-welded layer protects the body, extending body life by up to 25% longer.

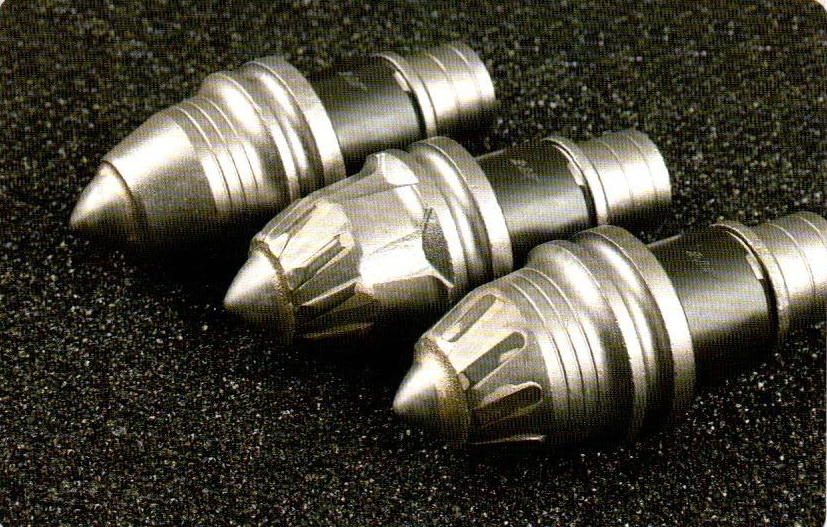

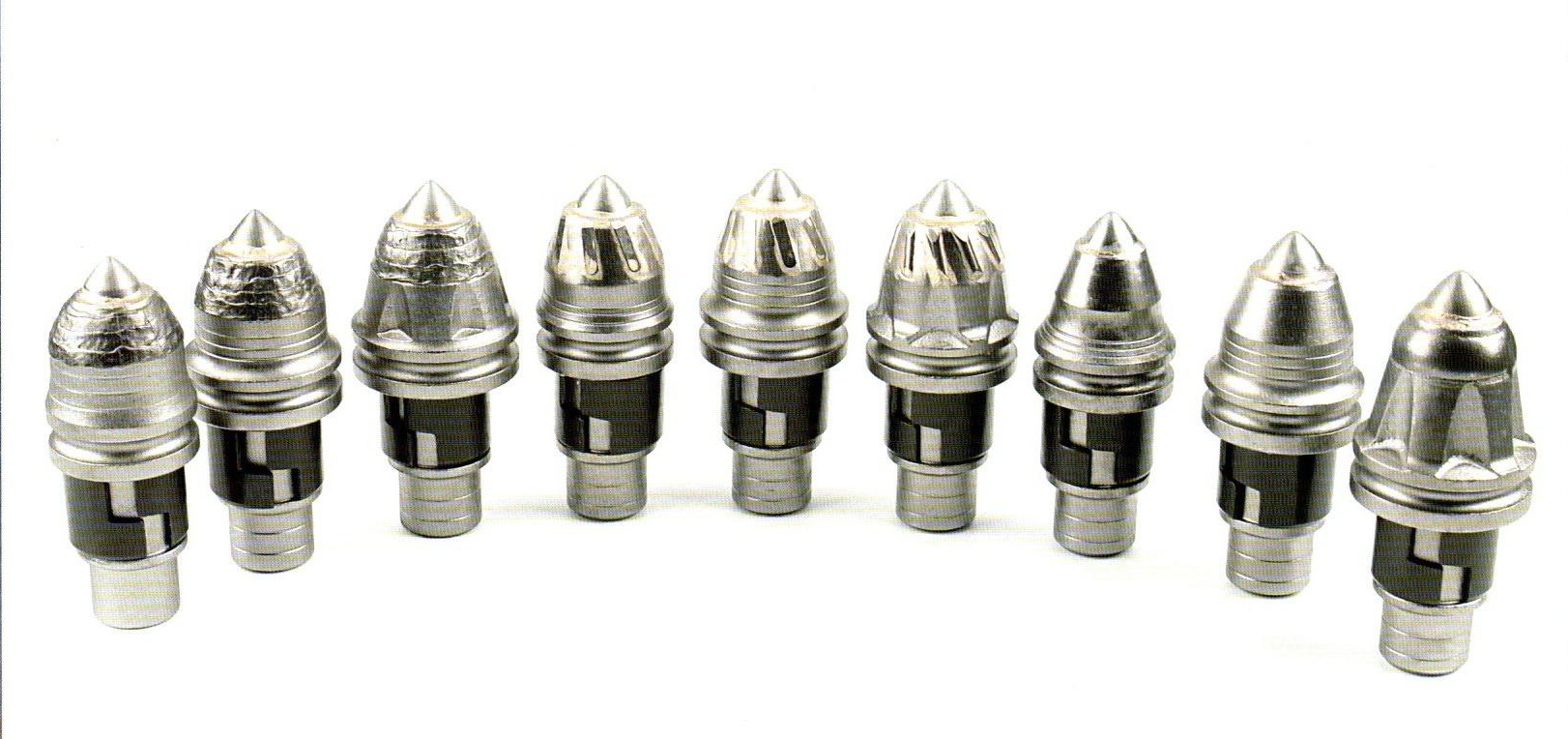

Rich experience in tungsten smelting and calcium carbide manufacturing. Alloy teeth forged with the highest impact and wear resistance of coarse particles and high precision steel. Refuses any recycled alloy materials.
Adopts 42CrMo as the material of the body. Special heat treatment process ensures high hardness and high toughness, wear-resistant, and break-resistant up to 100MPA on rock strata.
Unique & reasonable petal design, conducive to slag discharge during construction. Enhances independent rotation, reduces eccentric wear & gravel abrasion on the body to avoid early failure.
