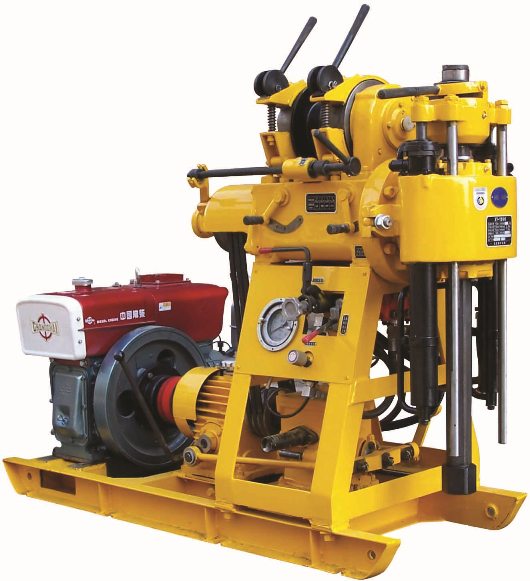

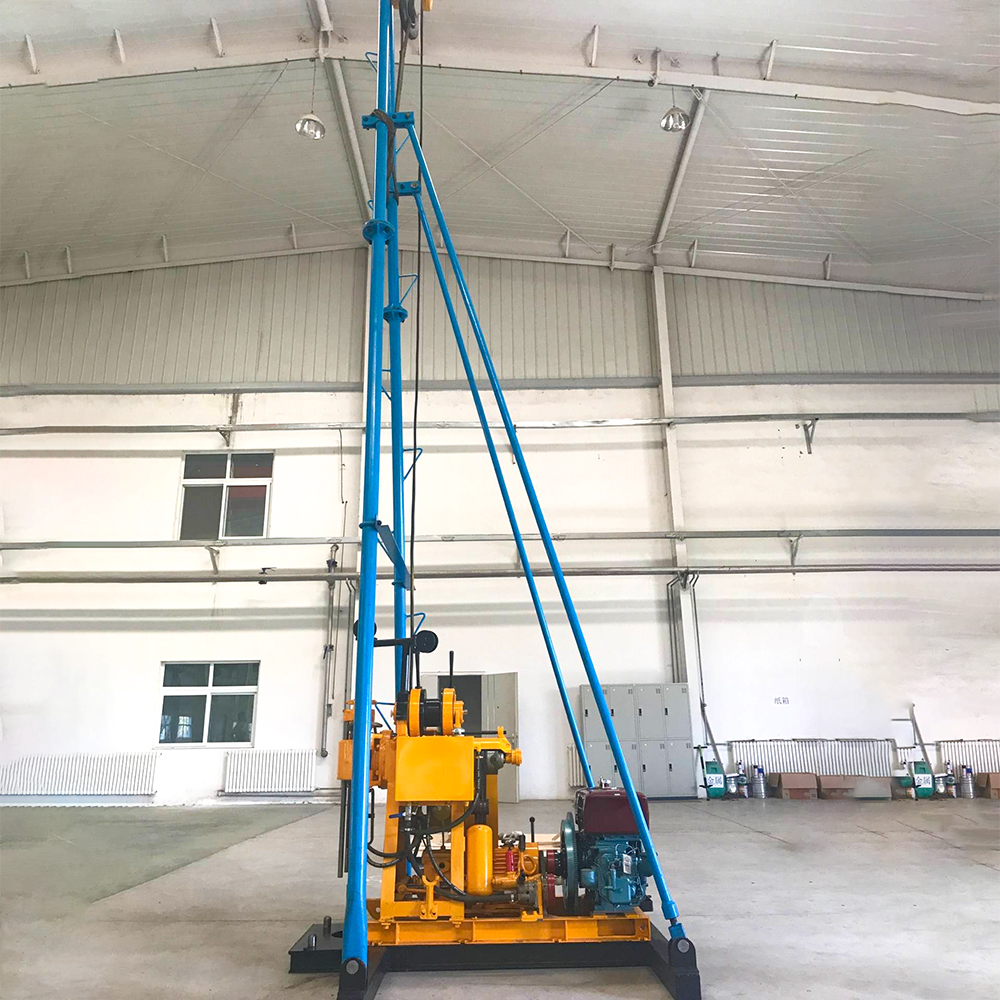

XY-1 core drilling rig can be used to geological exploration, physical geography exploration, road and building exploration, and blasting drilling holes etc. Diamond bits, hard alloy bits and steel-shot bits could be selected to meet different layers. The nominal drilling depth of XY-1 core drilling rig is 100 meters; the maximum depth is 120 meters. The nominal diameter of initial hole is 110mm, the maximum diameter of initial hole is 130 mm, and the diameter of final hole is 75 mm. The drilling depth depends on different conditions of stratum.
XY-1 core drilling rig features hydraulic feed, offering simple operation and high efficiency.
Designed with a ball-type chuck and driving rod, it completes no-stopping rotation while the spindle is relit.
The pressure indicator at the bottom hole allows easy observation and control of well conditions.
Equipped with close levers, ensuring convenient operation that is both safe and reliable.

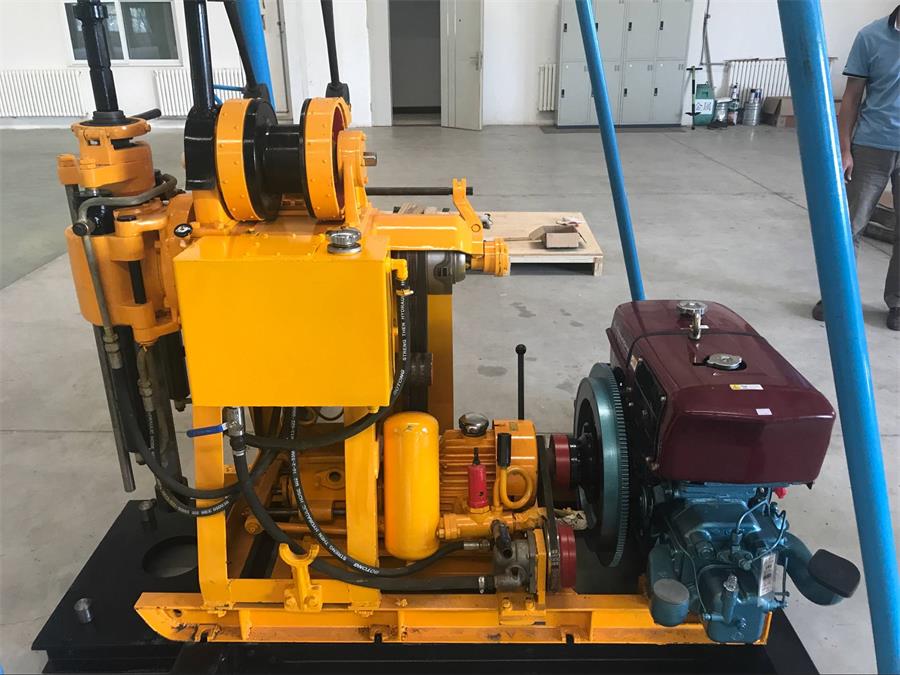

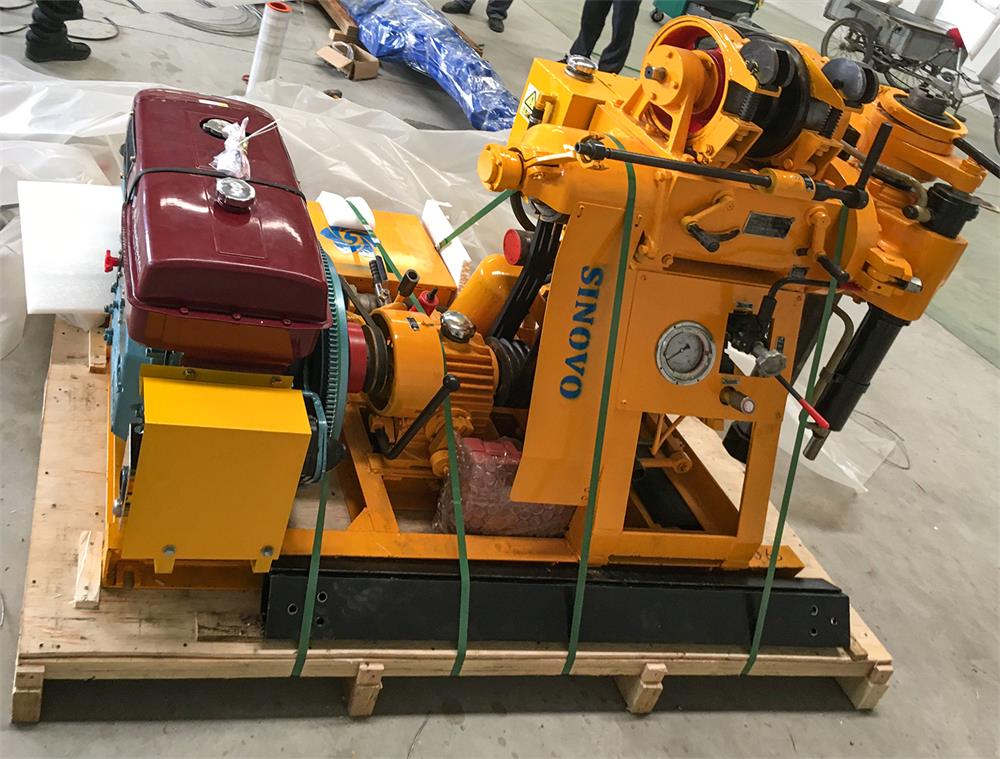

Compact size, installing the rig, water pump, and diesel engine on the same base to save space.
Lightweight construction makes it easy to assemble, disassemble, and transport across plains and mountains.
| Parameter Name | Specifications & Value | |
|---|---|---|
| Fundamental Parameters | ||
| Max. Drilling Depth | 100m | |
| Diameter of the initial hole | 110mm | |
| Diameter of the final hole | 75mm | |
| Diameter of drilling rod | 42mm | |
| Angle of drilling | 90°-75° | |
| Rotation Unit | ||
| Spindle speed (3 positions) | 142, 285, 570 rpm | |
| Spindle stroke | 450mm | |
| Max. feeding pressure | 15KN | |
| Max. lifting capacity | 25KN | |
| Max. lifting speed without load | 3m/min | |
| Hoisting System | ||
| Max. lifting capacity (single wire) | 10KN | |
| Rotation speed of drum | 55, 110, 220 rpm | |
| Diameter of the drum | 145mm | |
| Circumferential velocity of the drum | 0.42, 0.84, 1.68 m/s | |
| Diameter of the wire rope | 9.3mm | |
| Drum capacity | 27m | |
| Brake diameter | 230mm | |
| Brake band width | 50mm | |
| Water Pump | ||
| Max. displacement | With electrical motor | 77L/min |
| With diesel engine | 95L/min | |
| Max. pressure | 1.2Mpa | |
| Diameter of liner | 80mm | |
| Stroke of piston | 100mm | |
| Hydraulic Oil Pump | ||
| Model | YBC-12/80 | |
| Nominal pressure | 8Mpa | |
| Flow | 12L/min | |
| Nominal speed | 1500rpm | |
| Power Unit | ||
| Type of diesel (ZS1100) | Rated power | 10.3KW |
| Rated rotating speed | 2000rpm | |
| Type of electrical motor (Y132M-4) | Rated power | 7.5KW |
| Rated rotating speed | 1440rpm | |
| Dimensions & Weight | ||
| Overall dimension | 1640*1030*1440mm | |
| Total weight (not include power unit) | 500kg | |
The XY-1 core drilling rig is suitable for geological exploration, physical geography exploration, road and building exploration, as well as blasting drilling holes.
The nominal drilling depth of the XY-1 core drilling rig is 100 meters, with a maximum depth capability of up to 120 meters depending on stratum conditions.
To adapt to various geological layers, you can select diamond bits, hard alloy bits, or steel-shot bits.
The rig can be equipped with either a ZS1100 diesel engine (rated at 10.3KW / 2000rpm) or a Y132M-4 electrical motor (rated at 7.5KW / 1440rpm).
The XY-1 rig uses a single compact base for the installation of the drilling rig, water pump, and diesel engine, requiring minimal workspace and simplifying installation.
Excluding the power unit, the total weight is 500kg. Because of its light weight and compact size, it is easy to assemble, disassemble, and transport in mountain and plain regions.
