Best YTQH700B Dynamic compaction crawler crane Factory, Exporter

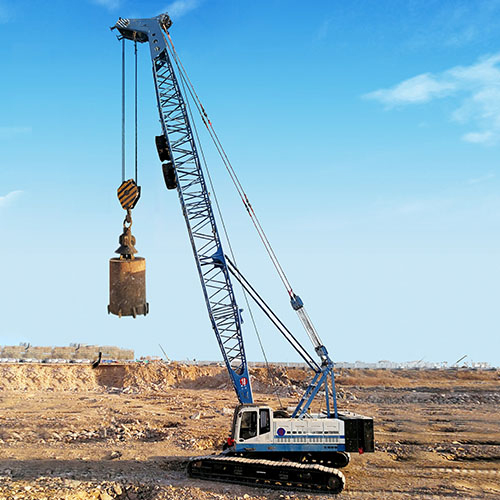

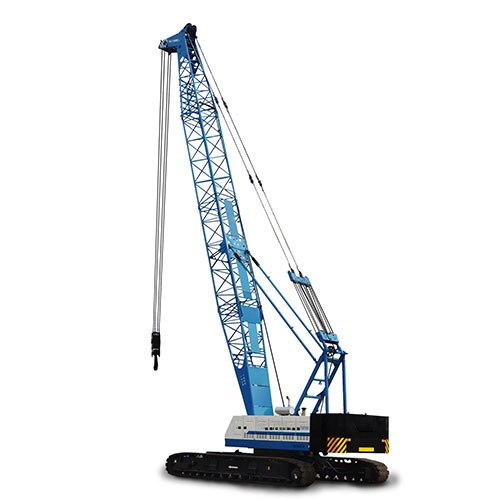

Strong professional and easy to operate. YTQH700B dynamic compaction crawler crane is a fully-slewing, multi-section truss-boom combination and fully hydraulically driven dynamic compaction hoisting machinery developed to meet market needs and combined with years of experience in production engineering lifting and compaction equipment. This model has the characteristics of high performance, high reliability, and beautiful appearance.

Send Inquiry

Product Description

Item	Unit	YTQH700B
Compaction capacity	t.m	700（1500）
Hammer weight permit	t.m	32.5（75）
Wheel tread	mm	6410
Chassis width	mm	5850
Track width	mm	850
Boom length	mm	19～25（28）
Working angle	°	60～77
Max.lift height	mm	26.3
Working radius	mm	6.5～16.1
Max. pull force	t	18
Lift speed	m/min	0～98
Slewing speed	r/min	0～1.8
Travel speed	km/h	0～1.3
Grade ability		30
Engine power	kw	294
Engine rated revolution	r/min	1900
Total weight	t	95
Counter weight	t	30
Main body weight	t	32
Dimension(LxWxH)	mm	7025x3360x3200

Key Advantages & Features

Wide application range of dynamic compaction construction

Excellent power performance

High strength, reliability and stability chassis

High boom strength

Big single rope line pull for lifting winch

Easy and flexible control

Long-time and high-power operation

Comfortable operation

Easy transportation

Frequently Asked Questions

What is the compaction capacity of the YTQH700B?

The YTQH700B dynamic compaction equipment features a standard compaction capacity of 700 t.m, with a maximum capability reaching up to 1500 t.m.

What are the engine specifications for this equipment?

The machine is powered by a high-performance engine delivering 294 kW of power at a rated revolution of 1900 r/min, ensuring excellent and long-lasting power performance.

What is the boom length and working angle range?

The boom length of the YTQH700B ranges from 19 to 25 meters, extendable up to 28 meters, operating effectively within a working angle range of 60° to 77°.

How is the transportability and dimension setup of the YTQH700B?

Designed for easy transportation, the main body weight is 32 tons. The overall machine dimensions (Length x Width x Height) are 7025 x 3360 x 3200 mm.

What are the key safety and chassis specifications?

The YTQH700B features a high-strength, reliable, and stable chassis with a track width of 850 mm, wheel tread of 6410 mm, and a total operating weight of 95 tons, including a 30-ton counterweight.

What are the winch line pull and speed features?

This machine is equipped with a high single-rope line pull for the lifting winch, supporting a maximum pull force of 18 tons and a fast lifting speed ranging from 0 to 98 m/min.
