Innovative design of the industry’s first all-electric control technology, which is controlled by electrical signals throughout the entire process, subverts the traditional control method of rotary drilling rigs, and possesses super-generation technical advantages.
A new layout of the vehicle structure; The latest Carter rotary excavator chassis; A new generation of power heads, high-strength twision resistant drill pipes; hydraulic components such as main pumps and motors are all equipped with large displacement.
Guided by marker demand and guided by technological innovation, it is positioned to develop high-quality pile foundation construction machinery to solve the problems of low construction efficiency, high construction cost and severe pollution of ordinary drilling rigs, and to provide high-end quality products for construction enterprises.
It is positioned to provide customers with overall construction solutions, especially in complex application environments and geological conditions, to improve the construction revenue of construction projects and achieve win-win cooperation with customers. Realize win-win cooperation with customers.
| Main parameters | Parameter | Unit |
|---|---|---|
| Pile | ||
| Max. drilling diameter | 2500 | mm |
| Max. drilling depth | 90/95 | m |
| Rotary drive | ||
| Max. output torque | 300 | KN-m |
| Rotary speed | 6~23 | rpm |
| Crowd system | ||
| Max. crowd force | 290 | KN |
| Max. pulling force | 335 | KN |
| Stroke of crowd system | 6000 | mm |
| Main winch | ||
| Lifting force (the first layer) | 320 | KN |
| Wire-rope diameter | 36 | mm |
| Lifting speed | 65 | m/min |
| Auxiliary winch | ||
| Lifting force (the first layer) | 110 | KN |
| Wire-rope diameter | 20 | mm |
| Mast inclination angle | ||
| Left/right | 6 | ° |
| Forward | 5 | ° |
| Chassis | ||
| Chassis model | CAT345GC | |
| Engine manufacturer | 卡特彼勒CAT | CATERPILLAR |
| Engine model | C-9.3 | |
| Engine power | 263 | KW |
| Engine power | 1750 | rpm |
| Chassis overall length | 5860 | mm |
| Track shoe width | 800 | mm |
| Tractive force | 680 | KN |
| Overall machine | ||
| Working width | 4300 | mm |

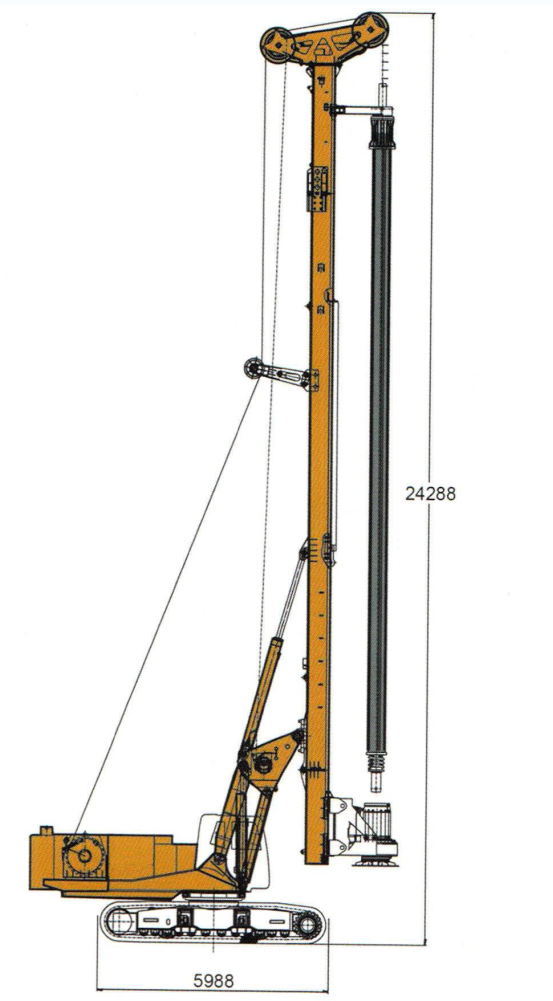

| Working height | 24288 | mm |

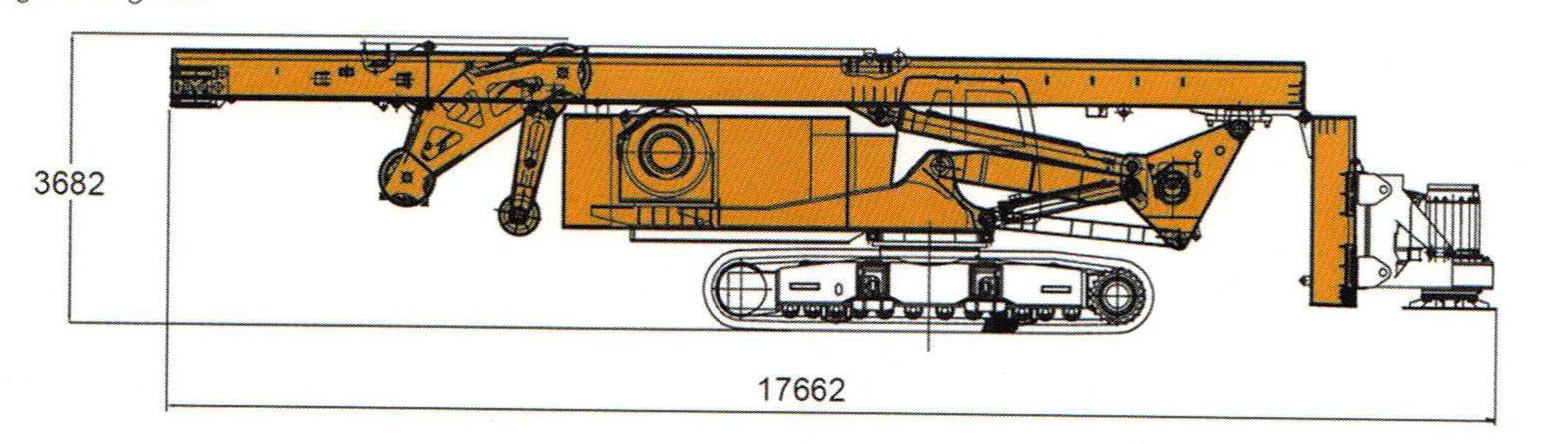

| Transport length | 17662 | mm |
| Transport width | 3000 | mm |
| Transport height | 3682 | mm |
| Total weight (with kelly bar) | 93 | t |
| Total weight (without kelly bar) | 79 | t |

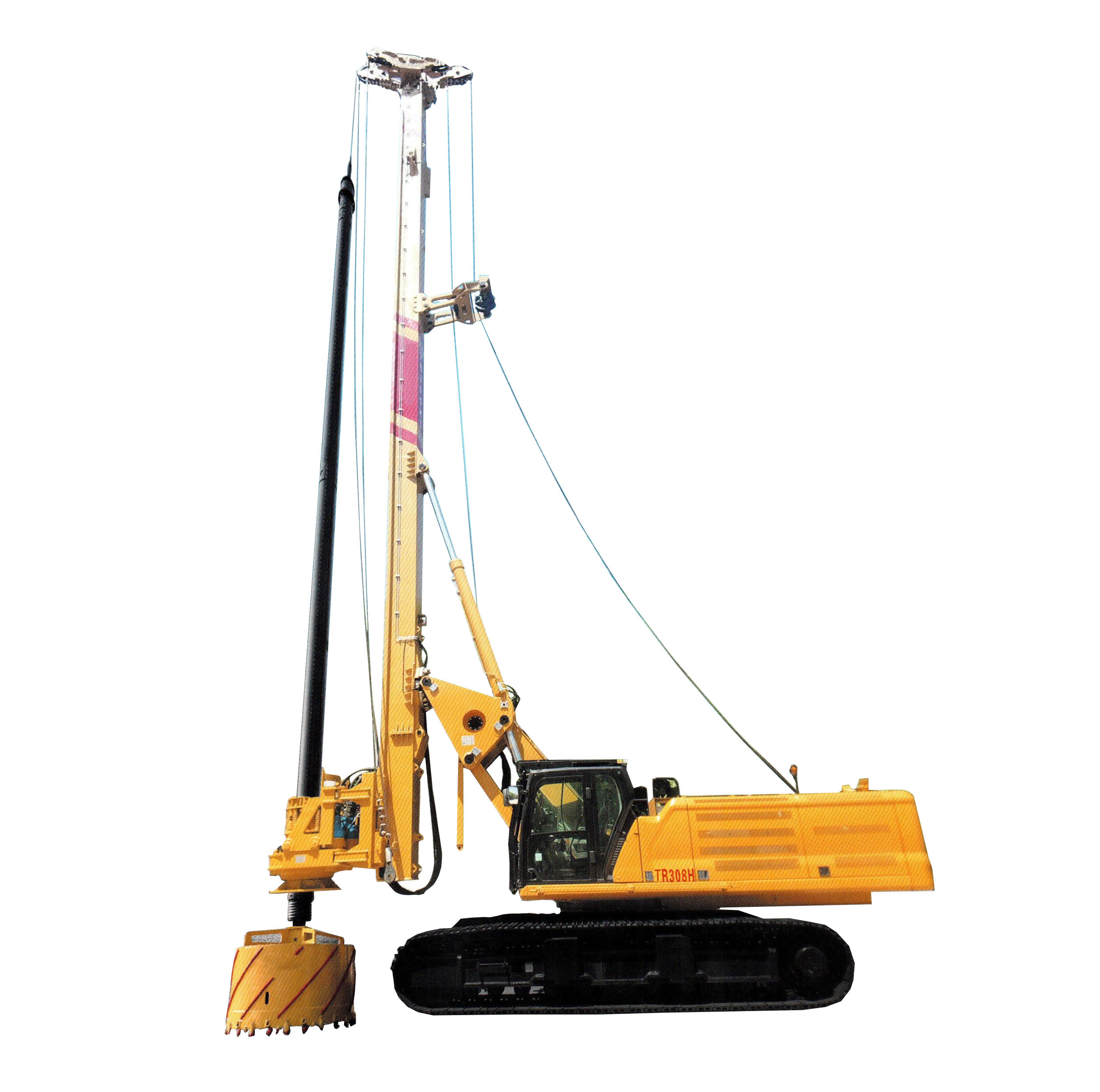

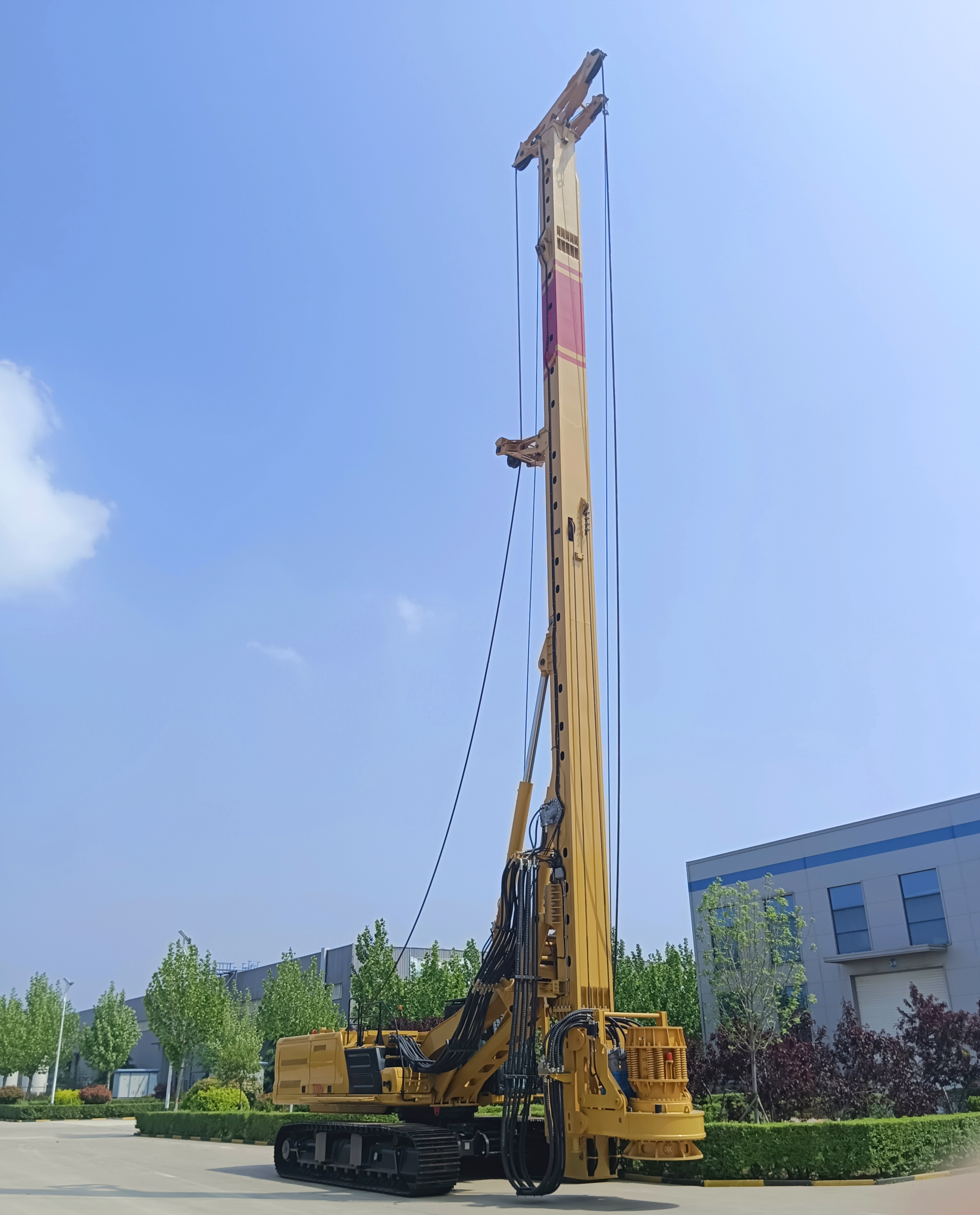

The TR308H is a classic medium-sized rotary drilling rig specifically designed for the construction of medium-sized pile foundations. It is highly optimized for geological environments and projects in East China, Central China, and Southwest China.
This system uses electrical signals rather than traditional pilot hydraulic lines to control the entire rig operation. This advanced configuration ensures faster response times, more precise positioning, higher operational efficiency, and a significant improvement in energy utilization.
The drilling rig is built upon the latest Carter (Caterpillar) rotary excavator chassis and powered by a reliable CAT C-9.3 engine. It features an engine power of 263 KW at 1750 rpm, providing substantial stability and torque for challenging soil layers.
The TR308H drilling rig supports a maximum drilling diameter of 2500 mm and can reach a maximum drilling depth of up to 90 to 95 meters, making it highly versatile for various civil and industrial foundation projects.
Standard configurations feature either a Friction Kelly Bar (∅508-6*16.5) for softer, cohesive soils or an Interlock Kelly Bar (∅508-4*16.5) designed to penetrate harder rock and challenging strata.
The total operational weight of the TR308H with the Kelly bar installed is 93 tons. When configured without the Kelly bar for ease of logistics, the transport weight is reduced to 79 tons.
