| Category | Parameter | Unit | Specification (TR35) |
|---|---|---|---|
| Model | - | - | TR35 |
| Engine | Brand | - | Yanmar |
| Power | KW | 44 | |
| Rotating speed | r/min | 2100 | |
| Rotary head | Torque | KN.m | 35 |
| Rotating speed | rpm | 0-40 | |
| Max drilling diameter | mm | 1000 | |
| Max drilling depth | m | 18 | |
| Feeding cylinder | Max pull force | kN | 40 |
| Max lifting force | kN | 50 | |
| Stroke | mm | 1000 | |
| Main winch | Max lifting force | kN | 50 |
| speed | m/min | 50 | |
| Rope dia | mm | 16 | |
| Auxiliary winch | Max lifting force | kN | 15 |
| speed | m/min | 50 | |
| Rope dia | mm | 10 | |
| Mast | Side | ° | ±4° |
| Forward | ° | 5° | |
| Kelly bar | Out diameter | mm | 419 |
| Interlocking | m | 8*2.7 | |
| Weight | kg | 9500 | |
| L*W*H in working | mm | 5000×2000×5500 | |
| L*W*H in Transportation | mm | 5000×2000×3500 | |
| Shipped with Kelly bar | Yes | ||

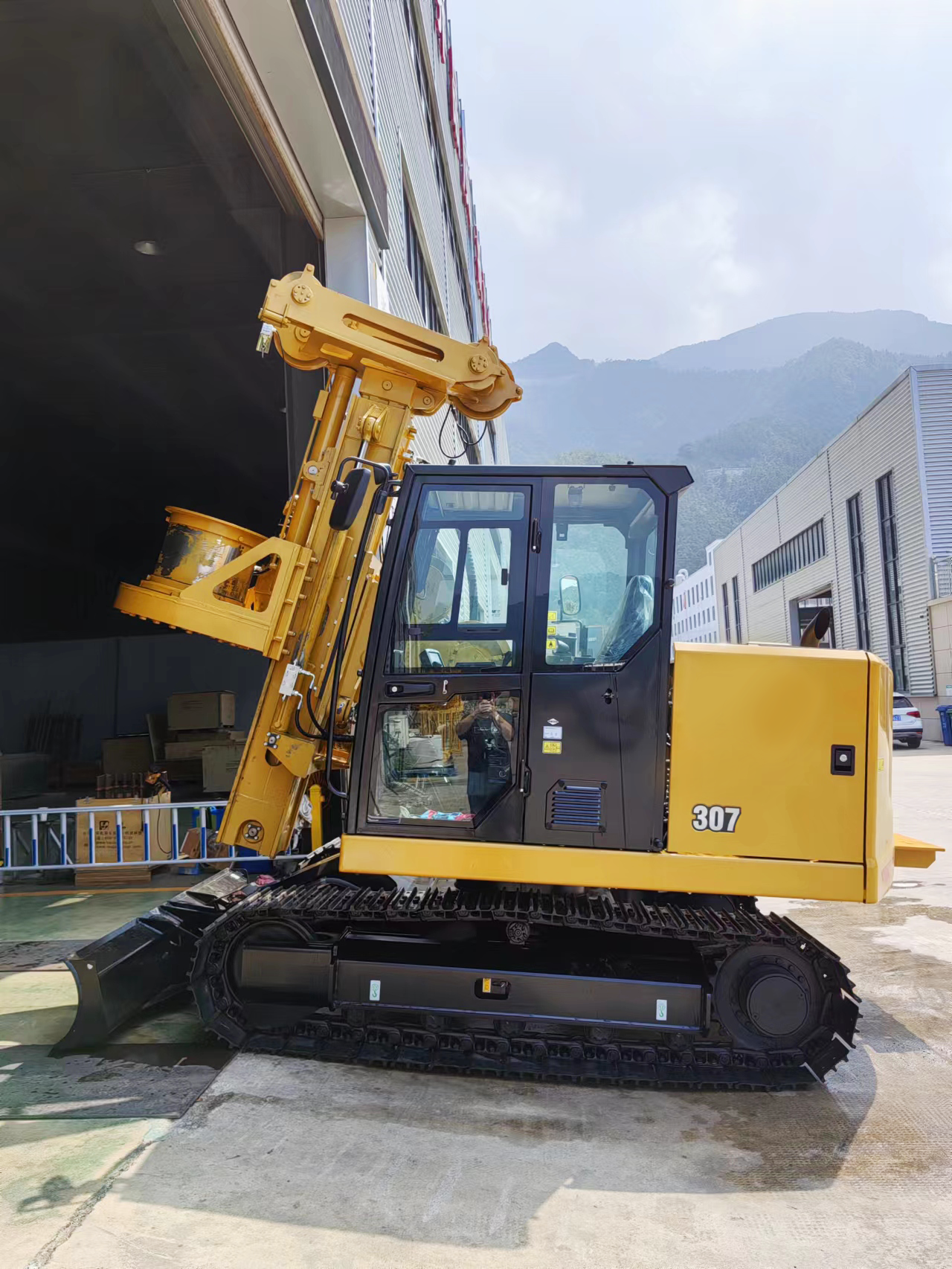

The TR35 rotary drilling rig features a maximum drilling depth of 18 meters and a maximum drilling diameter of 1000 mm.
The TR35 is powered by a Yanmar engine, delivering a rated power of 44 KW at a rotating speed of 2100 r/min.
Yes, with a mini undercarriage width of only 2000mm and a special telescopic section mast, the TR35 is specifically designed to move and operate efficiently in very tight locations and limited access areas.
During transportation, the dimensions (L*W*H) are 5000×2000×3500 mm. The total weight of the machine is 9500 kg.
Yes, the TR35 is shipped with an interlocking Kelly bar that has an outer diameter of 419 mm and a specification of 8*2.7 m.
