| Specification Parameter | Unit | Details | |
|---|---|---|---|
| Max. drilling depth | m | 650 | |
| Drilling diameter | mm | 200-350 | |
| Hole diameter of covering layer | mm | 300-500 | |
| Length of drill rod | m | 4.5 | |
| Diameter of drill rod | mm | Ф102/89 | |
| Axial pressure | kN | 400 | |
| Lifting force | kN | 400 | |
| Slow down, slow speed | m/min | 9.2 | |
| Rise fast, fast forward speed | m/min | 30 | |
| Truck Chassis | — | HOWO 8*4/6*6 | |
| Rotary Torque | N.m | 20000 | |
| Rotary Speed | rpm | 0-120 | |
| Engine power (Cummins engine) | KW | 160 | |
| Mud Pump | Displacement | L/min | 850 |
| Pressure | Mpa | 5 | |
| Air compressor (Optional) | Pressure | Mpa | 2.4 |
| Air Volume | m³/min | 35 | |
| Overall dimension | mm | 10268*2496*4200 | |
| Weight | t | 18 | |

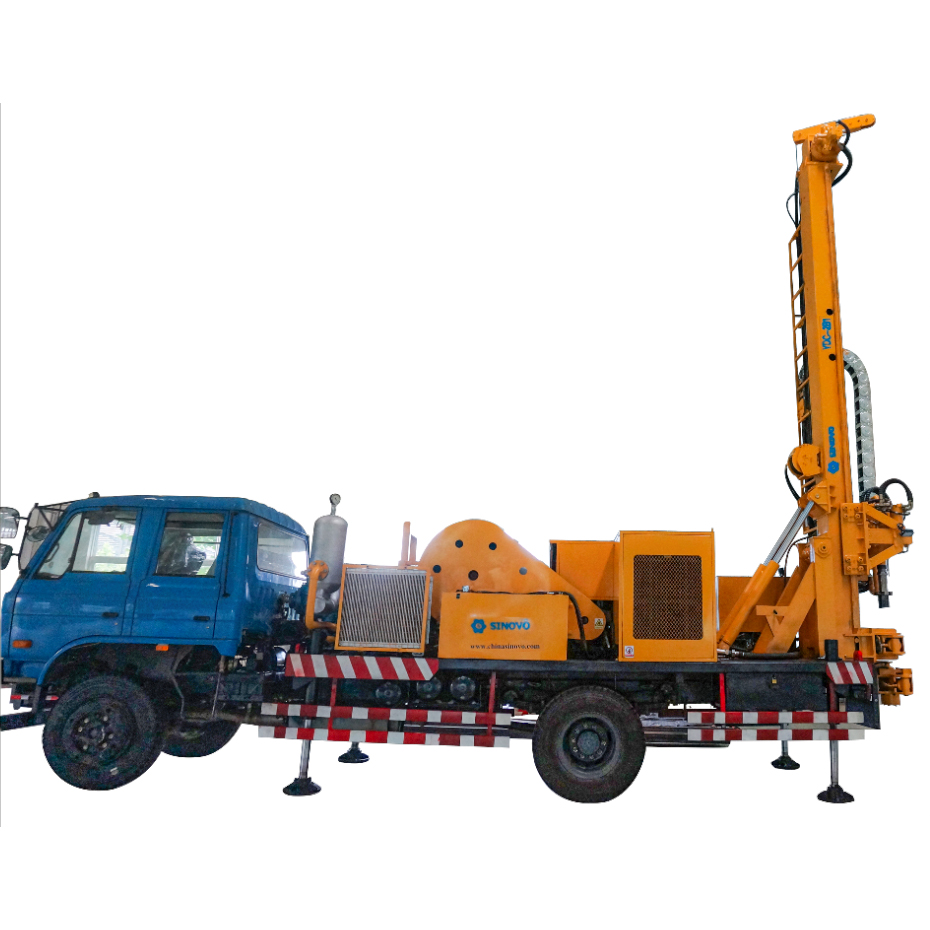

The YDC-2B1 full hydraulic water well drilling rig is equipped with Cummins engine or electric power as the clients special request.

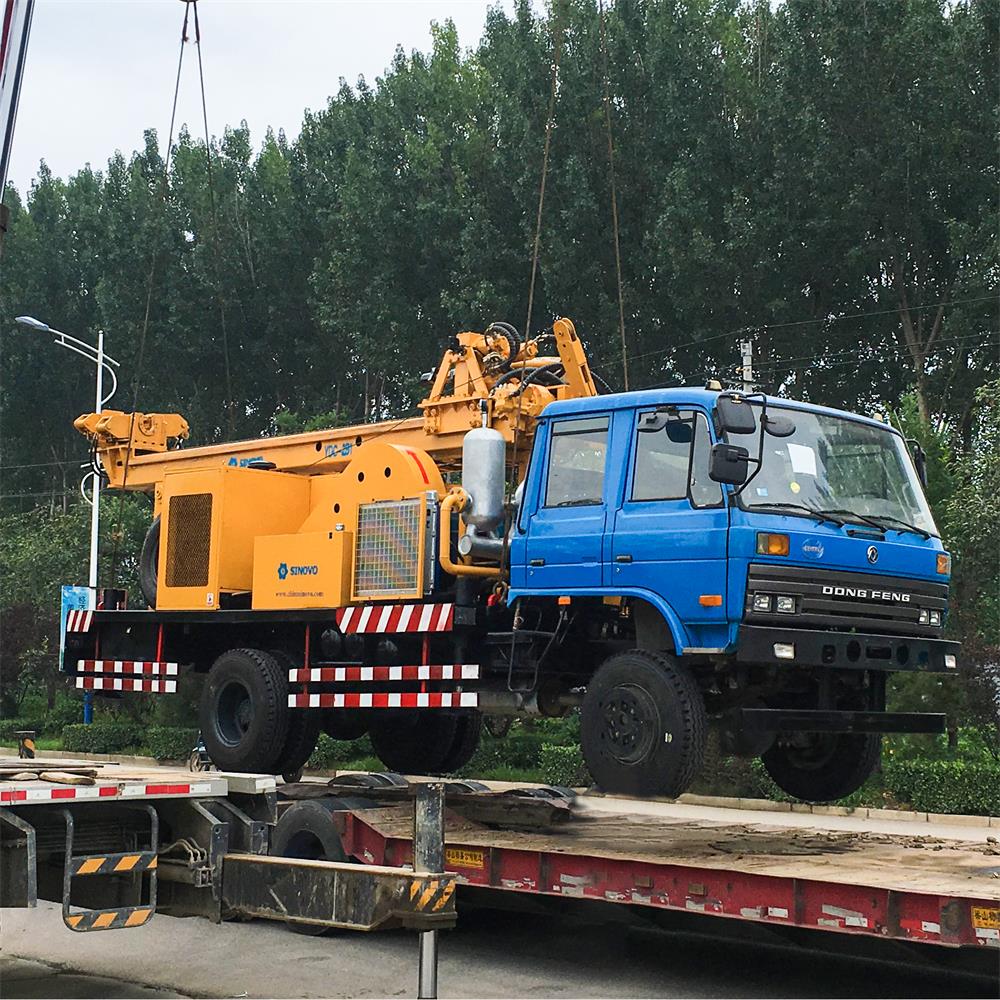

YDC-2B1 full hydraulic water well drilling rig can be either crawler, trailer or truck mounted, optional 6×6 or 8×4 heavy truck.
Hydraulic rotary head and break in-out clamp device, advanced motor-chain feeding system, and hydraulic winch are reasonable matched.
The YDC-2B1 full hydraulic water well drilling rig can be used by two drilling method in set covering layer and stratum soil condition.
Conveniently equipped with air compressor and DTH hammer, YDC-2B1 full hydraulic water well drilling rig can be used to drill the hole in rock soil condition by air drilling method.
The YDC-2B1 full hydraulic water well drilling rig is adopted with patent technology hydraulic rotating system, mud pump, hydraulic winch, which can be work with circulation drilling method.
Hydraulic system is equipped with separate air-cooled hydraulic oil cooler, also can install water cooler as clients optional in order to ensure hydraulic system work continuously and efficiently under the high temperature weather conditions in different regions.
Two-speed hydraulic regulation is used in rotating, thrusting, lifting system, which shall make drilling specification more match with well working situation.

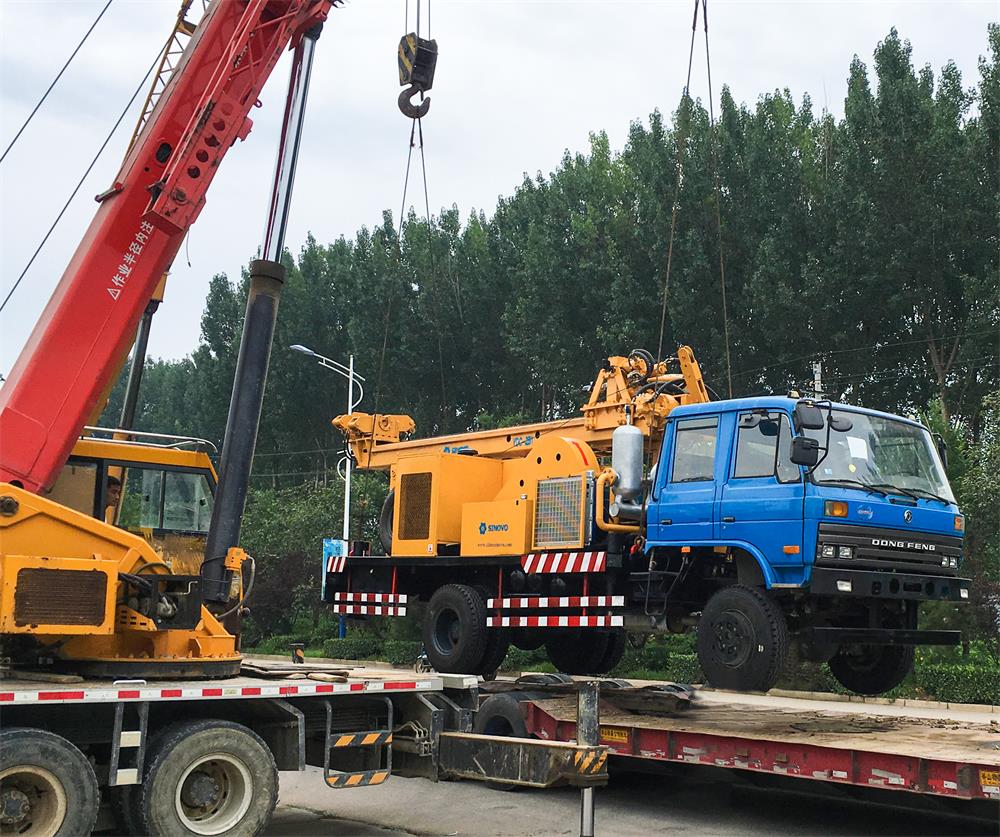

Four hydraulic support jacks can level rapidly undercarriage to ensure the drilling accuracy. The support jack extension as optional can be easy to make the rig load and unload on truck as Self-loading by itself, which save more transportation cost.
The YDC-2B1 full hydraulic drilling rig has a maximum drilling depth of 650 meters, which makes it ideal for deep water well exploration.
This versatile drilling rig can be crawler, trailer, or truck-mounted. For truck mounting, optional heavy truck chassis configurations include HOWO 8*4 or 6*6 options.
Yes. The rig is designed to easily integrate with an air compressor and DTH (Down-the-Hole) hammer to efficiently drill through hard rock soil conditions.
The system comes with a separate air-cooled hydraulic oil cooler as standard. Clients can also opt for an additional water cooler to guarantee continuous, high-efficiency operation in extremely hot environments.
The rig is equipped with four hydraulic support jacks for rapid leveling. Optional support jack extensions enable the rig to self-load and unload directly onto transport trucks, reducing setup and transit costs.
