| Parameter | |||
|---|---|---|---|
| Item | Unit | Data | |
| Drill hole depth | m | ≤250 | |
| The hole diameter | mm | 450-2000 | |
| Spindle speed | r/min | 11 | |
| Spindle power | KW | (5.5-7.5)*2 | |
| The spindle torque | N.m | 12000 | |
| Winch lifting force | T | 15 | |
| Reverse circulation pump | Flow | m³/h | 500 |
| Power | KW | 30 | |
| Generating set | Rated voltage | V | 380 |
| Rated current | A | 115 | |
| Rated speed | r/min | 1500 | |
| Rated power | KW | 64 | |
| Drill pipe | mm | Ф168*2000/Ф180*2000 | |
| Main power supporting power | 4105-6105 diesel engine | ||
| Overall dimension | mm | 9000*2400*3300 | |
| Weight | T | 13 | |

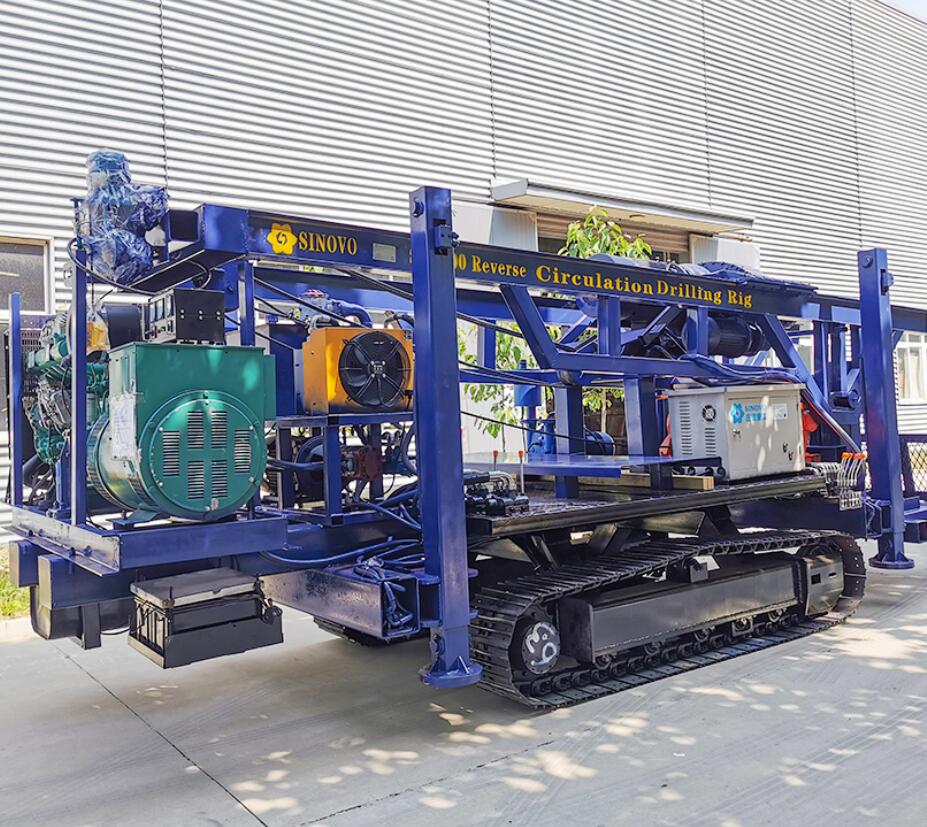

This drilling rig is capable of reaching a maximum drill hole depth of up to 250 meters (≤250m).
The equipment supports a wide hole diameter range from 450 mm up to 2000 mm, making it suitable for various drilling applications.
The integrated reverse circulation pump features a rated flow rate of 500 m³/h and operates with a power capacity of 30 KW.
The system utilizes a 4105-6105 diesel engine for its main power support, along with a generating set rated at 64 KW (380V, 115A, 1500 r/min).
The overall physical dimensions of the machinery are 9000 * 2400 * 3300 mm, and it has a total operating weight of approximately 13 Tons.
