Buy Used SANY SH400C Diaphragm Wall Grab for Sale Suppliers, Factory

The used SANY SH400C diaphragm wall hydraulic grab, manufactured in 2013, has a maximum grab depth of 70m and a thickness of 1500mm. The working hours of the equipment are 7000 hours and the grab length is 2800mm. It is in good condition and has been maintained. The FOB Tianjin Seaport price is 288,600.00$.

Send Inquiry

Product Description

Product	Brand	Model	YOM	Max dia. of piles and depth	Working hours(h)	Kelly Bar	FOB Price (USD)	Condition
Diaphragm Wall Grab Base: CAT336DL Engine: C9 261kw	SANY	SH400C	2013	Max grab depth: 70m Thickness: 1500mm	7000	Length of grab: 2800mm	288,600.00	Nice and refurbished

Key Features

a. Powerful

The working device has large weight and maximum impact power, and can be constructed in strongly weathered rock strata within 10MPa.

b. Fast

The opening and closing time of the bucket is only 9 seconds, and the efficiency of soil catching, slag collecting and unloading is higher. Winch adopts synchronous confluence technology with the fastest speed.

c. Straight

Adopt the dynamic real-time detection technology of gyroscope to adjust the deviation of the gantry push plate in real time, and the perpendicularity of the groove can reach 1‰.

d. Stable

Professional large gauge chassis, reduce rapid impact and shake, improve construction safety.

e. Deep

The construction depth is 70 meters, covering more than 90% of underground support projects, and the quality of grooves deeper than 60 meters is higher.

f. Economical

The main winch adopts single-layer large drum, the wire rope has longer service life.

g. Convenient

It is equipped with electric centralized lubrication system and hydraulic quick change joint to improve the convenience of disassembly, installation and maintenance.

h. Intelligent

Professional operating system, real-time display of drilling situation.

Product Gallery

SANY SH400C Diaphragm Wall Hydraulic Grab - Image 1

SANY SH400C Diaphragm Wall Hydraulic Grab - Image 2

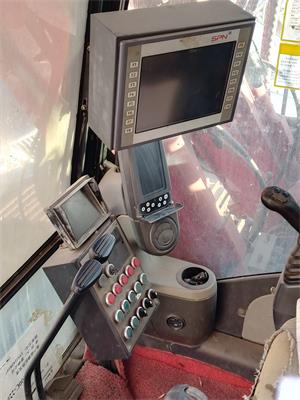

SANY SH400C Diaphragm Wall Hydraulic Grab - Image 3

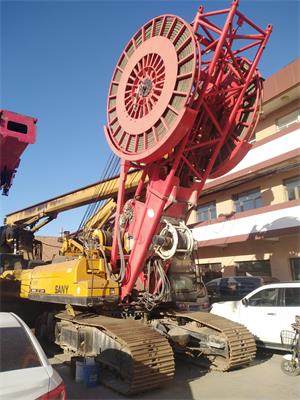

SANY SH400C Diaphragm Wall Hydraulic Grab - Image 4

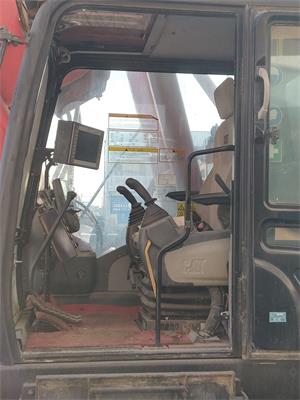

SANY SH400C Diaphragm Wall Hydraulic Grab - Image 5

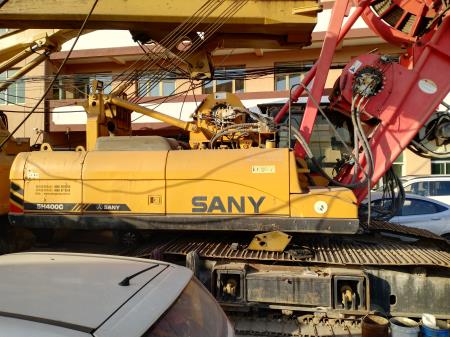

SANY SH400C Diaphragm Wall Hydraulic Grab - Image 6

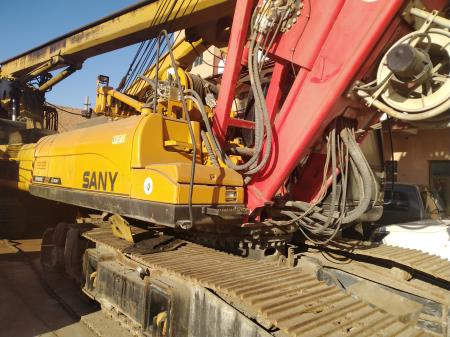

SANY SH400C Diaphragm Wall Hydraulic Grab - Image 7

Frequently Asked Questions

What are the brand and model details of this diaphragm wall hydraulic grab?

This is a used SANY SH400C diaphragm wall hydraulic grab, manufactured in YOM 2013. It features a CAT336DL grab base and a C9 261kw engine.

What is the maximum depth and thickness capacity of the SANY SH400C?

The SANY SH400C hydraulic grab has a maximum grab depth of 70 meters and is capable of handling a grab thickness of up to 1500mm. The length of the grab is 2800mm.

How many working hours does this used equipment have?

This equipment has registered approximately 7000 working hours and is maintained in nice, refurbished condition.

What is the price of the used SANY SH400C grab?

The price is 288,600.00 USD under FOB Tianjin Seaport shipping terms.

What features ensure the perpendicularity and precision during operation?

The equipment adopts dynamic real-time detection technology using a gyroscope to adjust the deviation of the gantry push plate in real-time, allowing the perpendicularity of the groove to reach up to 1‰.

Is the SANY SH400C grab efficient in tough soil conditions?

Yes, it features a heavy-weight working device with maximum impact power suitable for strongly weathered rock strata within 10MPa. Additionally, it offers a fast bucket opening and closing time of just 9 seconds.
