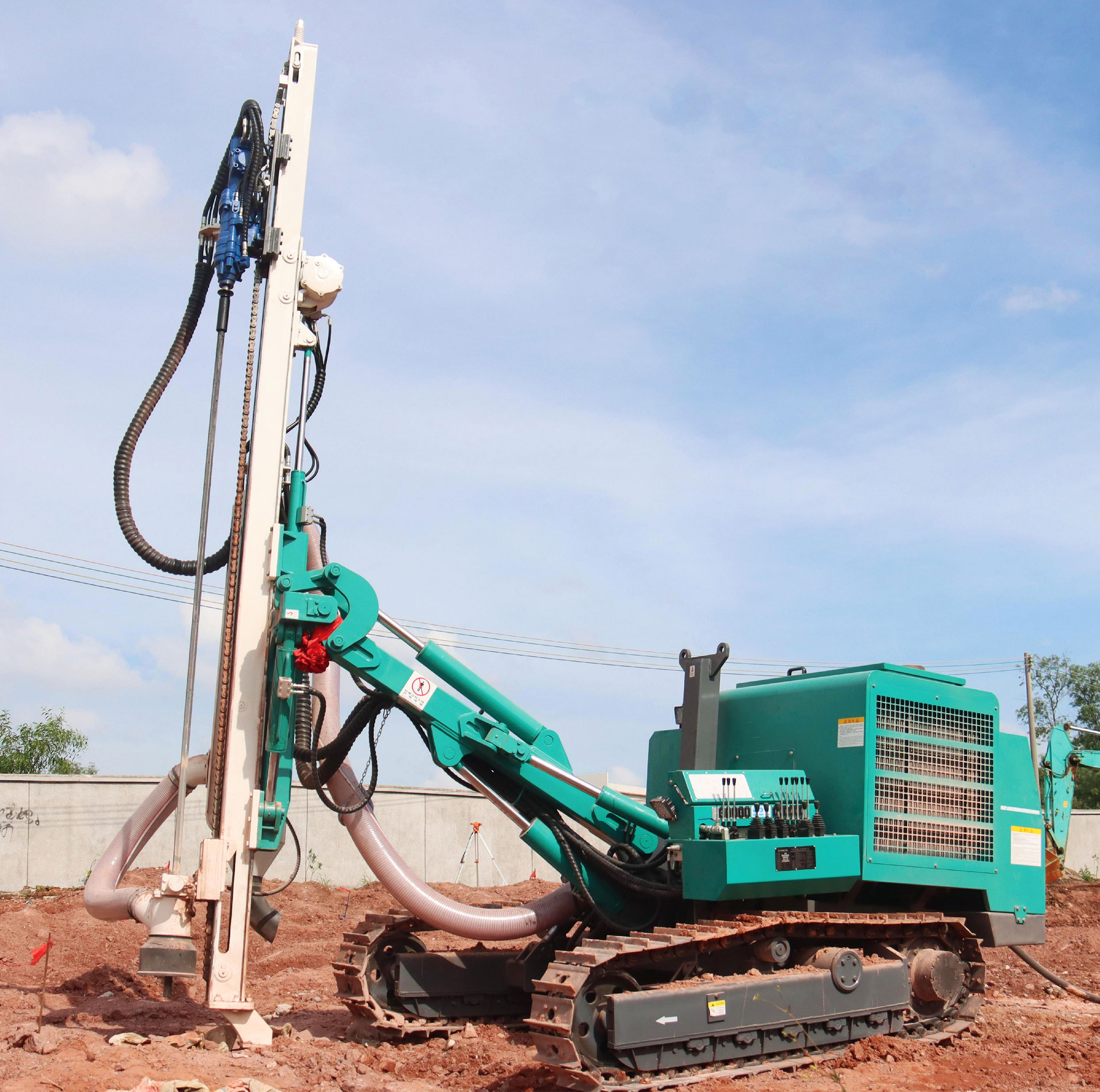

OEM SK680 Top Hammer Drilling Rig Supplier, Product

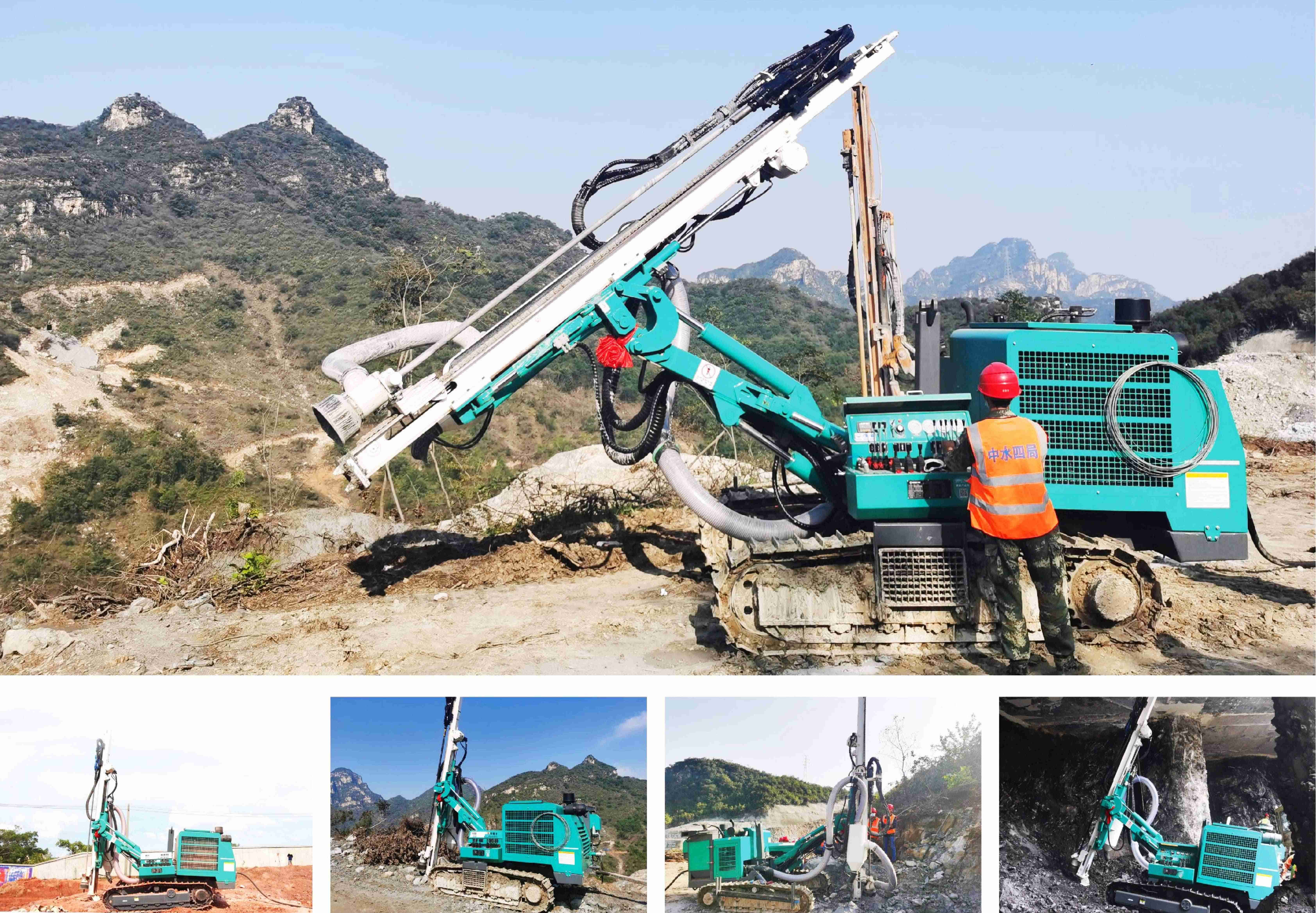

SK680 Top Hammer Drilling Rig is designed according to the needs of construction environment of front-line customers and the needs of φ50-90mm small hole diameter.The whole machine is small in size,light in weight,fast in travelling speed and strong in cross-country ability,which can replace the special working conditions that conventional drilling rigs can not operate. It is suitable for:static explosion,small hole diameter drug explosion,such as underground mining,underground,construction pits,urban construction sites,tunnels and other environments in the rock drilling and drilling.

Send Inquiry

Product Description

Main specifications as following

Hole Diameter	50-90 mm
Drazing Rod Specifications	R32、T38、T45
Maximum Travel Speed	3km/h
Climbing Ability	30°
Ground Clearance	350mm
Track Pitch Angle	±10
Propulsion Beam Length	6080mm
Propulsion Length	4100mm
Lifting Speed	600mm/s
Maximum Lifting Force	2.4T
Rotation Speed	155r/min
Rotation Torque	830Nm
lmpact Energy	300J
Engine	Yuchai Off-road National III emission standards
Rated Power	92 kw
Fuel Tank Capacity	90L
Transport dimensions (LxWxH)	6500×2200×2600mm
Weight	6T
Dust Collection	standard; drytyp; double stage
Optional	waterbome dust collection

Frequently Asked Questions

What is the drilling range of the SK680 Top Hammer Drilling Rig?

The SK680 Top Hammer Drilling Rig supports a hole diameter range of 50-90 mm, making it highly versatile for various geological drilling operations.

What engine and rated power are equipped in this drilling rig?

This equipment is powered by a Yuchai Off-road National III emission standards engine with a robust rated power of 92 kw.

What are the transport dimensions and overall weight of the SK680?

The transport dimensions of the SK680 are 6500×2200×2600mm, and the machine has a total weight of 6T, facilitating convenient transport scheduling.

Does the machine come with an integrated dust collection system?

Yes, it features a standard dry-type, double-stage dust collection system. Additionally, a waterborne dust collection system is available as an optional configuration.

What rod specifications are compatible with this system?

The SK680 supports R32, T38, and T45 drilling rod specifications to match different project parameters.

What are the mobility capabilities regarding speed and climbing?

The machine features a maximum travel speed of 3km/h and has a strong climbing ability of up to 30° to handle rough terrains.
