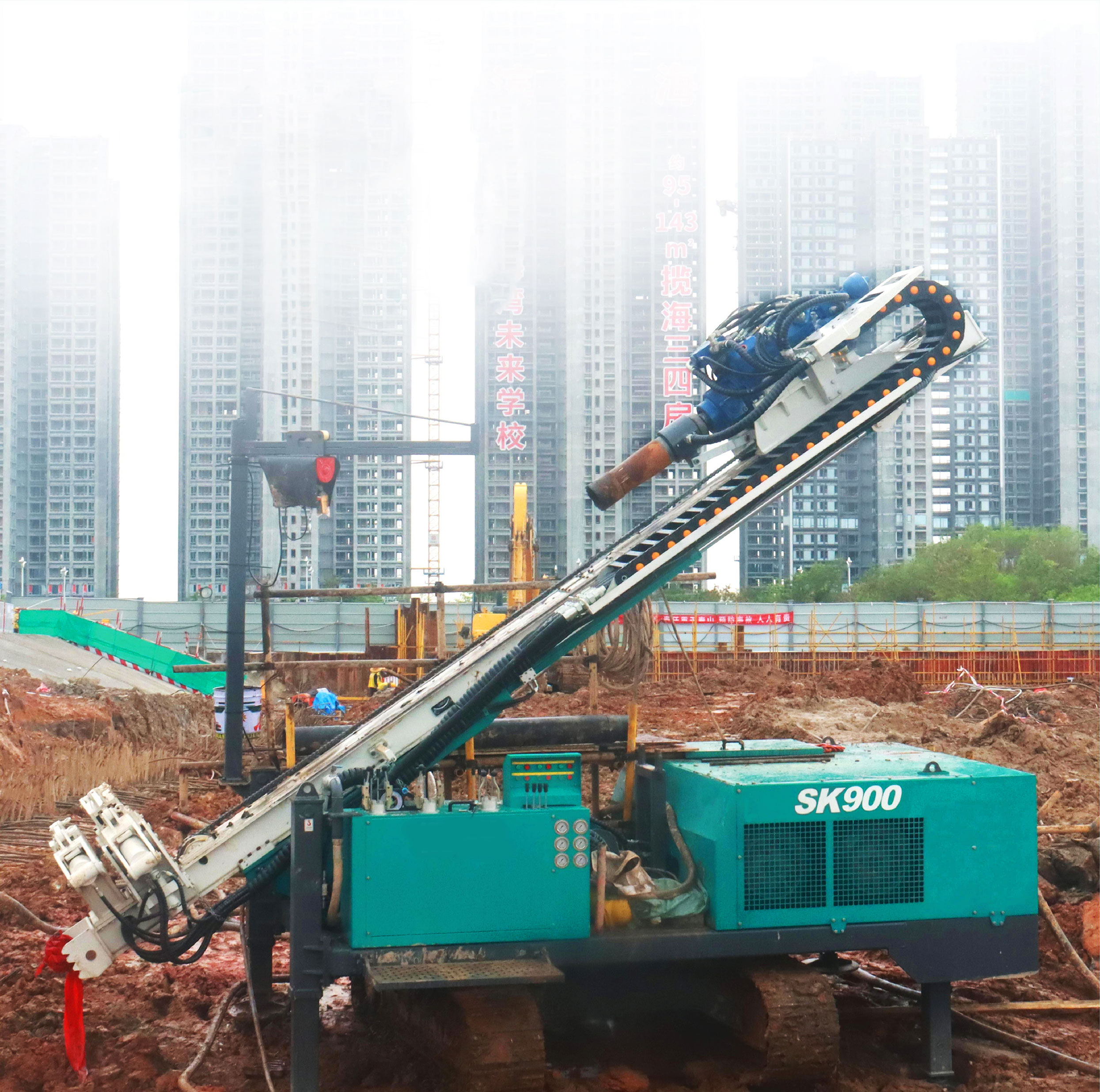

Cheap SK900 Top Drive Anchor Driling Rig Manufacturer, Factory

SK900 Top Drive Anchor Driling Rig power head, adopting high power top impact, can achieve the effect of impact drilling without the use of submerged hammer and air compressor, with high torque, high rotation speed and strong power. For the sand pebbles, gravel, sandy soil, sand laver and other formations that areeasy to collapse the hole to rely on percussion drilling, to achieve rapid driling to ensure the quality of the hole.

Product Description

Model SK900
Drilling Range φ100-φ250mm
Maximum Borehole Depth 160m
Maximum Opening Of Rod Clamp 300mm
Rotation Speed 0-110r/min
Rotation Torque 15000Nm
Frame Swivel Angle ±179°
Frame Height From The Ground 335mm
Oil Pressure 180bar
Oil Flow 130l/min
Frequency 2500bpm
Percussion Energy 800Nm
Single Actuation Stroke 3600mm
Horizontal Bore Height 3000mm
Compensating Stroke Of The Thrust Beam 1260mm
Maximum Lifting Force 10T
Maximum Propulsion 4T
Fastest Boost Speed 23M/min
Maximum Propulsion Speed 50M/min
Overall Power(Electric) 55kw+55kw
Input Voltage 380V 50Hz
Transport dimensions (LxWxH) 6600×2200×2600mm
Weight 10T
Frequently Asked Questions
What is the drilling range and maximum depth of the SK900?
The SK900 model has a drilling range of φ100 to φ250mm, and it can reach a maximum borehole depth of 160 meters.
What are the power and voltage specifications for this model?
The SK900 features an overall electric power of 55kw+55kw and operates on an input voltage of 380V at 50Hz.
How much rotation torque does the SK900 deliver?
It delivers a powerful rotation torque of 15000Nm, with a controllable rotation speed ranging from 0 to 110r/min.
What are the dimensions and weight of the SK900 for transport?
The transport dimensions of the SK900 are 6600×2200×2600mm (LxWxH), and the total weight of the machine is 10T.
What is the frame swivel range and height clearance of the SK900?
The frame of the SK900 has a swivel angle of ±179°, and it stands at a height of 335mm from the ground.
What are the maximum lifting and propulsion forces of this equipment?
The SK900 features a maximum lifting force of 10T and a maximum propulsion force of 4T.
