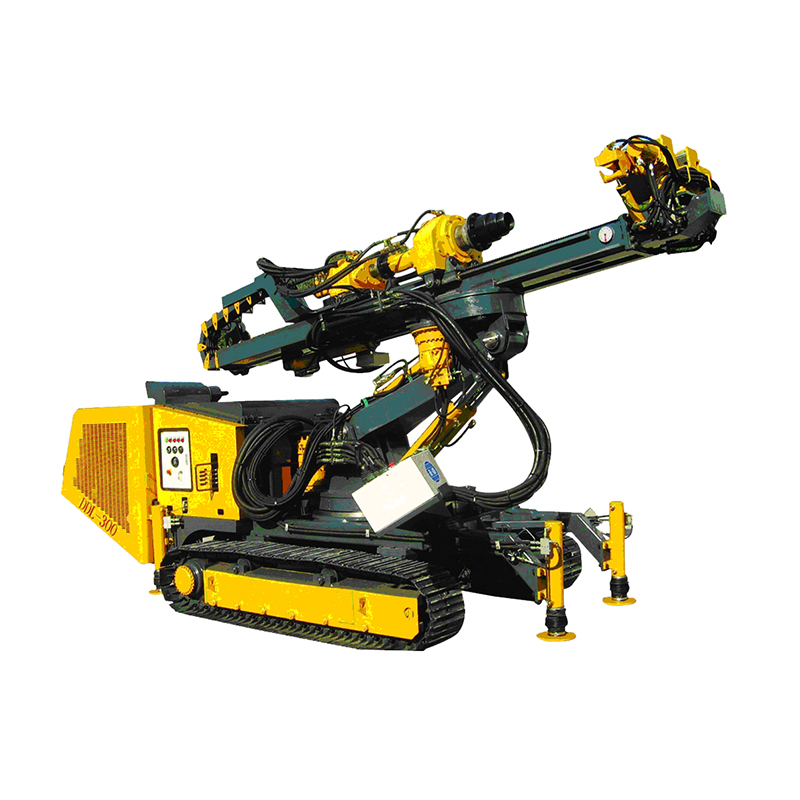

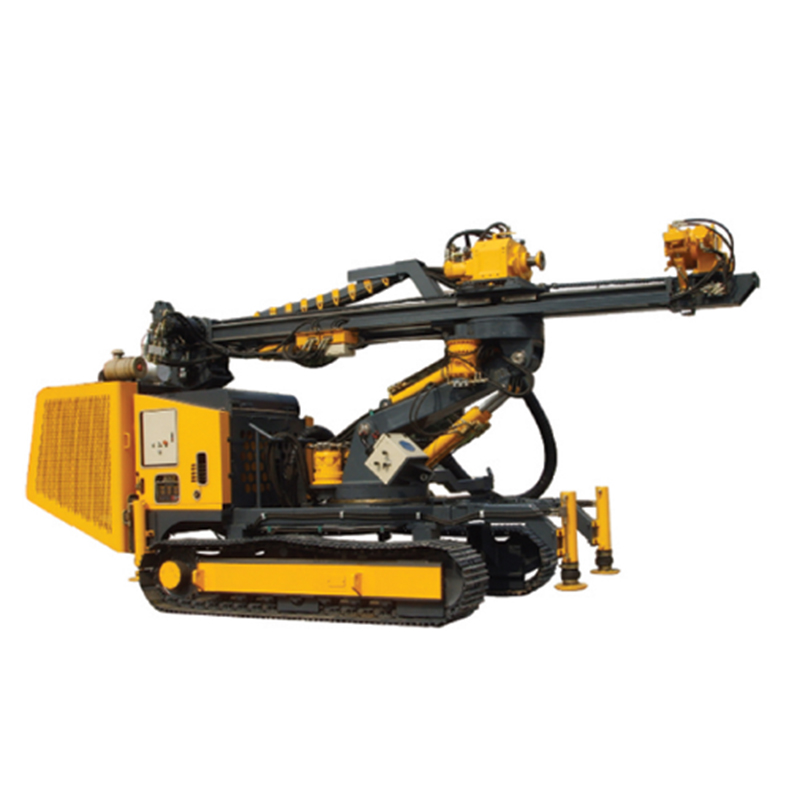

SM-300 Rig is crawler mounted with top hydraulic drive rig. It is a newly designed and produced style crawler drilling rig.
The rig is mainly use for diamond bit drilling and carbide bit drilling of solid bed. It also can be use in underpinning and pile drilling, geotechnical surveys drilling and mineral exploration drilling etc.
Key Features & Advantages
Top Hydraulic Head Driver: Driven by two high speed hydraulic motors, supplying great torque and a wide range of rotation speeds.
Feeding & Lifting System: Adopts hydraulic motor driving and chain transmission for a long feeding distance and convenient drilling.
V Style Orbit: Built in the mast to ensure sufficient rigidity between the top hydraulic head and the mast, delivering stability at high rotation speed.
Rod Unscrew System: Simplifies rod handling operations during drilling procedures.
Hydraulic Winch: Designed for lifting, offering improved lifting stability and excellent braking capabilities.
Electric Controlling: Equipped with a centralized control system and three emergency stop buttons for enhanced safety.
Center Control Table: Moveable layout showing rotation speed, feeding and lifting speed, and hydraulic system pressure.
Advanced Hydraulics: Adopts variable displacement pump, electric controlling proportion valves, and multi-circuit valves.
Steel Crawler Drive: Powered by a hydraulic motor, giving the rig wide maneuverability across rough terrains.
Technical Specifications
Technical Specifications
EURO Standards
U.S. Standards
ENGINE Deutz Wind cooling diesel engine
46KW
61.7hp
Hole diameter
Φ110-219 mm
4.3-8.6 inch
Drilling angle
All directions
Rotary Head
A. Back hydraulic rotary head (drilling rod)
Motor Mode
Rotation Speed
Torque
Torque
Single motor
Low speed: 0-120 r/min
1600 N.m
1180 lbf.ft
Single motor
High speed: 0-310 r/min
700 N.m
516 lbf.ft
Double motor
Low speed: 0-60 r/min
3200 N.m
2360 lbf.ft
Double motor
High speed: 0-155 r/min
1400 N.m
1033 lbf.ft
B. Forward hydraulic rotary head (sleeve)
Motor Mode
Rotation Speed
Torque
Torque
Single motor
Low speed: 0-60 r/min
2500 N.m
1844 lbf.ft
Double motor
Low speed: 0-30 r/min
5000 N.m
3688 lbf.ft
C. Translation stroke
2200 N.m
1623 lbf.ft
Feeding system: single hydraulic cylinder driving the chain
Lifting force
50 KN
11240 lbf
Feeding force
35 KN
7868 lbf
Clamps
Diameter
50-219 mm
2-8.6 inch
Winch
Lifting force
15 KN
3372 lbf
Width of Crawlers
2260 mm
89 inch
Weight in working condition
9000 Kg
19842 lb
Packaging Details
Standard packing or customized according to requirements.
Quantity (Sets)
Lead Time (Days)
1 - 1
30 days
> 1
To be negotiated
Frequently Asked Questions (FAQ)
What are the primary applications of the SM-300 drilling rig?
The SM-300 crawler-mounted rig is mainly used for diamond bit and carbide bit drilling of solid beds. It is also highly effective for underpinning, pile drilling, geotechnical surveys, and mineral exploration drilling.
What kind of engine powers the SM-300 drilling rig?
The rig is powered by a high-efficiency Deutz Wind-cooling diesel engine. It delivers 46KW (61.7hp) of power, complying with EURO and U.S. standards.
What are the main advantages of the top hydraulic head driver?
The top hydraulic head driver is powered by two high-speed hydraulic motors, which provide massive torque and support a wide range of rotation speeds. It also works in conjunction with a V-style orbit in the mast to maintain rigidity and stability even at high rotation speeds.
What safety controls are featured on this rig?
The SM-300 features an advanced electric controlling system with centralized management. For operator safety, it includes three easily accessible emergency stop buttons.
What are the options for lead time and packaging?
Standard packing is provided to ensure safe transport, and custom options are available. The estimated lead time is 30 days for a single set, while larger orders are subject to negotiation.
