| Engine | Model | SCANIA/CAT | |
| Rated power | kw | 294 | |
| Rated speed | r/min | 2200 | |
| Rotary head | Max.output torque | kN·m | 318 |
| Drilling speed | r/min | 5-25 | |
| Max. drilling diameter | mm | 2500 | |
| Max. drilling depth | m | 56/84 | |
| Crowd cylinder system | Max. crowd force | Kn | 248 |
| Max. extraction force | Kn | 248 | |
| Max. stroke | mm | 6000 | |
| Main winch | Max. pull force | Kn | 300 |
| Max. pull speed | m/min | 69 | |
| Wire rope diameter | mm | 36 | |
| Auxiliary winch | Max. pull force | Kn | 100 |
| Max. pull speed | m/min | 65 | |
| Wire rope diameter | mm | 20 | |
| Mast inclination Side/ forwards/ backwards | ° | ±3/3.5/90 | |
| Interlocking Kelly bar | ɸ508*4*14.5m | ||
| Friction Kelly bar (optional) | ɸ508*6*16.5m | ||
| Traction | Kn | 720 | |
| Tracks width | mm | 800 | |
| Caterpillar grounding Length | mm | 4950 | |
| Working Pressure of Hydraulic System | Mpa | 32 | |
| Total weight with kelly bar | kg | 97500 | |
| Dimension | Working (Lx Wx H) | mm | 9399x4700x23425 |
| Transportation (Lx Wx H) | mm | 17870x3870x3400 | |

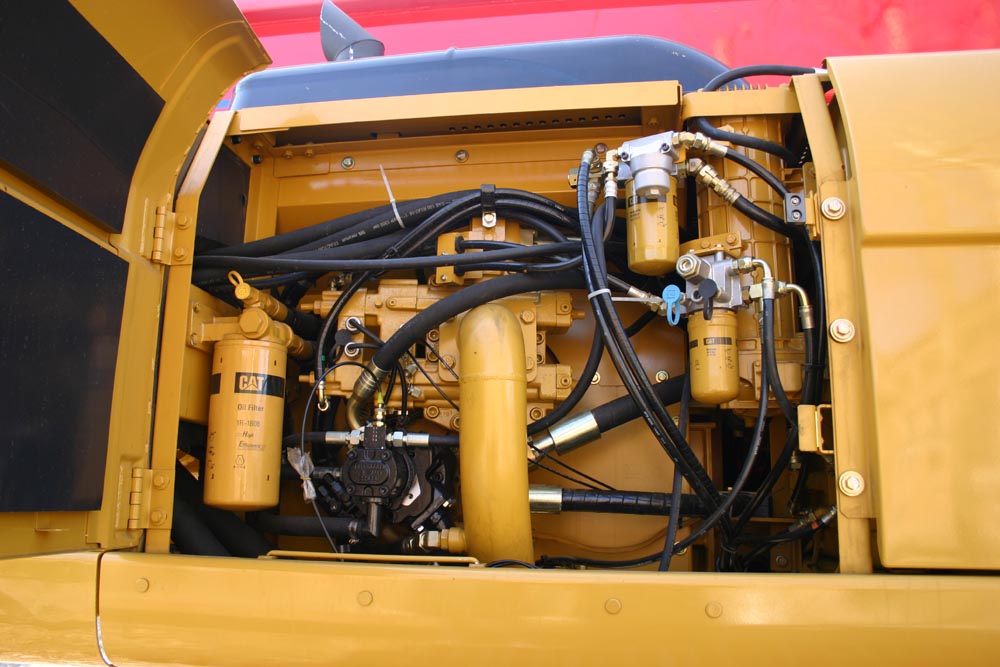

Retractable original CAT 336D chassis with EF turbocharged engine ensures the stability of the whole machine meet the performance on various applications and construction environment. Advanced main pump adopted negative flow constant power variable automatic control , which can realize the optimal matching in the load and the output power of engine.
High frequency pulse controlled crowding system helps to achieve high efficient drilling at rock layers .
The large torque rotary head adopts three level anti shocking technology to effectively absorb the impact of kelly bar . Equipped REXROTH or LINDE motor provides powerful output torque and realizes grading control according to the geological conditions , construction requirements and so on.
High speed spin off is optional , centrifugal force is increased which can achieve fast soil unloading increase construction efficiency remarkably .
Electric systems are from Pal-fin auto-control , optimal design of electric control system improves the control accuracy and the feed back speed Equipped advanced automatic switch of manual control and auto control , the electronic leveling device can monitor and adjust the mast automatically , and guarantee a verticality condition during operation.
The newest designed winch drum structure is to avoid steel wire rope tangling and effectively prolongs the wire's service life.
The main winch has functions of touch-bottom protection and priority control ; fast speed kelly fall is optional.
Low vibration , low noise and low pollution to meet the high standards of city pile foundation construction .

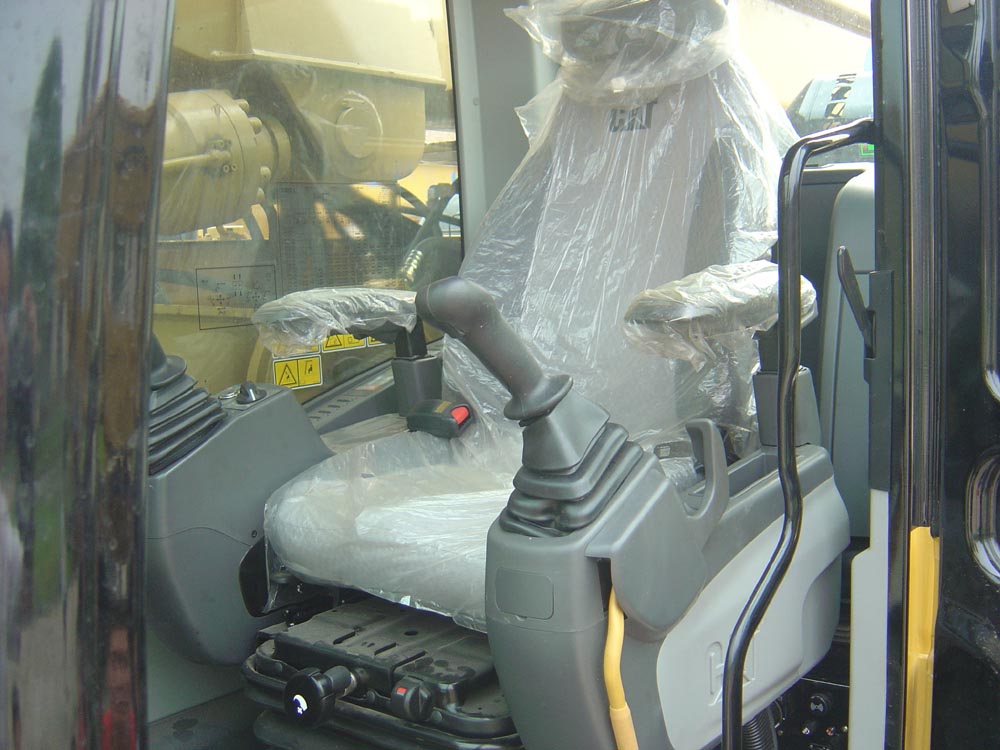

The whole machine operation applies hydraulic pilot control , which could make the load and sense light and obvious . The optimal machine performance , Lower fuel consumption , more flexible steering and more efficient construction key components adopted world famous brand such as Caterpillar , Rexroth , Parker and Manuli.

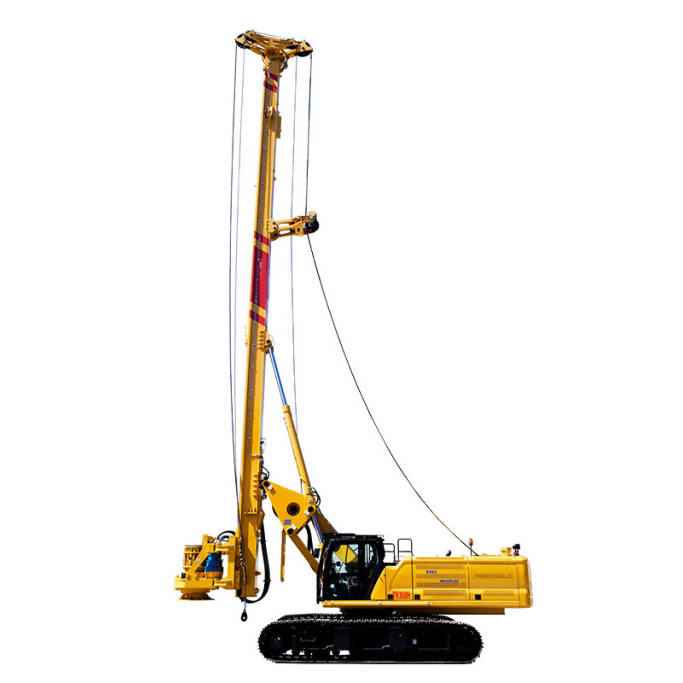

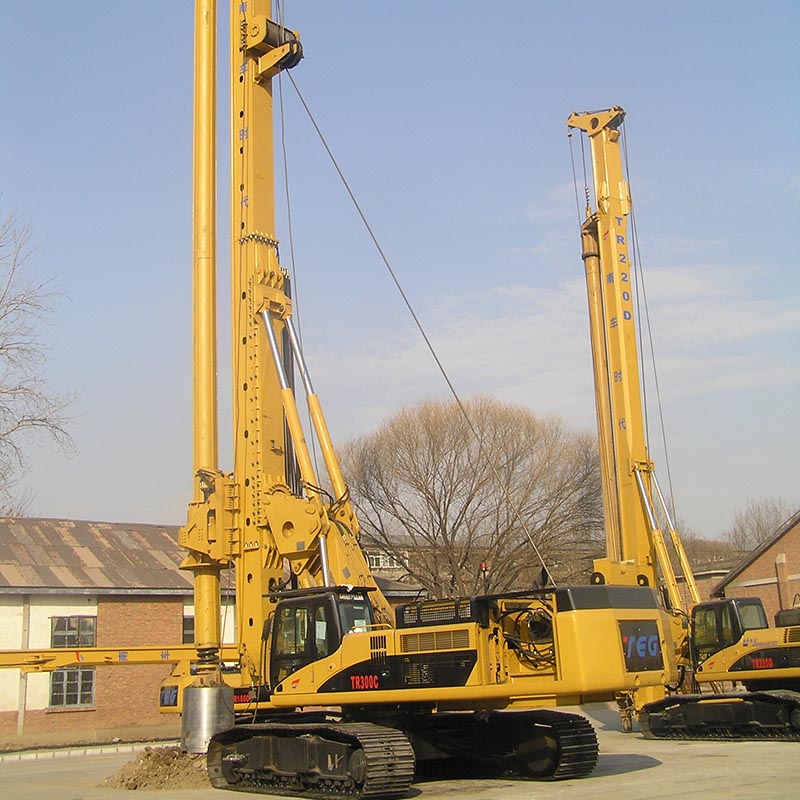

TR300D rotary drilling rig is new designed sell-erecting ig mounted on original Caterpillar 336D base adopts advanced hydraulic loading back technology integrates advanced electronic control technology, which makes the whole performance of TR300D rotary drilling rig each advanced world standards.
TR300D rotary drilling rig is specially designed to suit the following applications:
The TR300D is mounted on an original Caterpillar 336D base chassis and is powered by a high-performance SCANIA/CAT turbocharged engine, ensuring excellent stability and load matching under variable construction environments.
It features a maximum drilling diameter of 2500 mm and a maximum drilling depth of 56 meters (interlocking Kelly bar) or 84 meters (friction Kelly bar).
The rotary head utilizes an advanced three-level anti-shocking technology designed to efficiently absorb kelly bar impacts, while its REXROTH or LINDE motor adapts output torque dynamically to geological conditions.
The TR300D implements a newly designed winch drum structure that actively prevents steel wire rope tangling, significantly extending the service life of the wire rope.
The TR300D is ideal for drilling with telescopic friction or interlocking kelly bars, cased bore piles (driven by rotary head or casing oscillator), continuous flight auger (CFA) piles, and displacement piles for soil-mixing.
Equipped with Pal-fin auto-control electric systems, the rig includes an electronic leveling device that monitors and automatically adjusts the mast, ensuring absolute verticality throughout construction tasks.
