CE Certification SK666 MICRO PILE DRILLING RIG Supplier, Factory

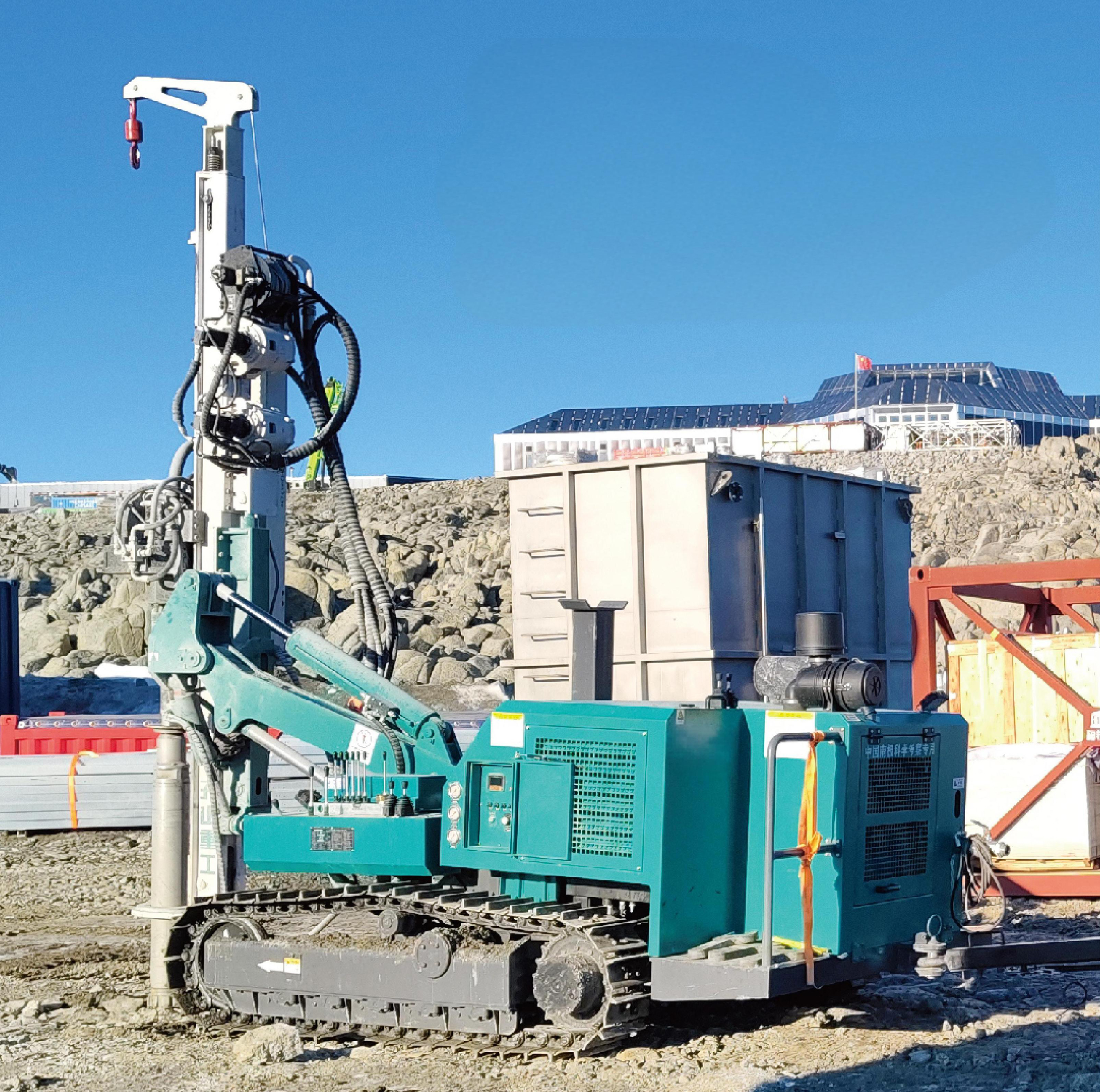

The SK666 Micro Pile Driling Rig is a versatile engineering drilling machine

that combines high efficiency, flexibility, and stability. lt is specifically

designed for large-diameter, high-precision drilling operations.Widely used

in micro pile, photovoltaic hole, anchor bolt hole, casing hole, and blasting

hole construction, it offers excellent geological adaptability and operational

convenience. significantly enhancing construction efficiency and hole quality.

Send Inquiry

Product Description

Hole Diameter

115 - 500 mm

Engine Power

73.5 kW

Total Weight

8100 kg

Max Torque

8500 Nm

Technical Specifications

Parameter Specifications
Hole Diameter	115-500mm
Drilling Rod Specification	76 / 89 / 102 / 114
Hammer	4" / 5" / 6" / 8" / 10" / 12"
Crawler Outer Width	2300mm
Chassis Levelling Angle	±13°
Climbing Ability	<25°
Travel Speed	3km/h
Standard Equipment	Upper operation, foot pedal and drill pipe holder
Propulsion Length	4100mm
Advancing Compensation	1260mm
Propulsion Speed	0.5m/s
Propulsion	1.2T
Maximum Lifting Force	4T
Propulsion Beam Front Swing Angle	± 30°
Power Head Rated Speed	40/80r/min two-stage
Maximum Rotation Torque	4000/8500Nm
Engine	Yuchai national stage III emission standards
Rated Power	73.5kw @2200r/min
Recommended Operating Speed	1500r/min
Transport Dimensions (LxWxH)	7000×2300×2760mm
Weight	8100kg (Excluding drilling tools)

Frequently Asked Questions

Q: What is the drilling hole diameter range for this equipment?

A: The drilling rig supports a wide hole diameter range from 115mm up to 500mm, accommodating various drilling applications.

Q: What engine model and power capacity does this rig feature?

A: It is equipped with a Yuchai engine that meets national stage III emission standards. The engine has a rated power of 73.5kw at 2200r/min, with a recommended operating speed of 1500r/min.

Q: What are the transport dimensions and weight specifications?

A: The transport dimensions are 7000×2300×2760mm (LxWxH), and the total weight of the machine is 8100kg, excluding the drilling tools.

Q: What is the maximum rotation torque and lifting force of the machine?

A: The power head features a two-stage rated speed (40/80r/min) and delivers a maximum rotation torque of 4000/8500Nm. The maximum lifting force is rated at 4T.

Q: What is included in the standard equipment list?

A: The standard package configuration comes equipped with an upper operation setup, a foot pedal, and a dedicated drill pipe holder.

Q: How is the mobility and climbing performance of this crawler rig?

A: With a crawler outer width of 2300mm, the rig features a chassis levelling angle of ±13°, a maximum climbing ability of under 25° (<25°), and a travel speed of up to 3km/h.
