Hopper Specifications
| Diameter (mm) |
Height (mm) |
Weight (kg) |
| 408 |
950 |
70 |
| 508 |
850 |
75 |
| 658 |
870 |
91 |
| 758 |
970 |
123 |
| 1058 |
1250 |
207 |
Conduit Specifications
| Length (mm) |
Weight (kg) |
| 1000 |
49 |
| 2000 |
86 |
| 3000 |
123 |
| 4000 |
160 |
| 5000 |
197 |
| 6000 |
234 |
Hopper 2 Specifications
| D (mm) |
H (mm) |
Weight (kg) |
Capacity (m³) |
| 1500 |
1270 |
179 |
1 |
| 1500 |
1670 |
235 |
1.5 |
| 1860 |
1520 |
263 |
2 |
| 2000 |
1350 |
288 |
3 |
Conduit 2 Specifications
| L1 (mm) |
Weight (kg) |
L2 (mm) |
Weight (kg) |
| 500 |
42 |
3900 |
134 |
| 1000 |
54 |
| 1500 |
70 |
| 2000 |
85 |
| 3000 |
112 |

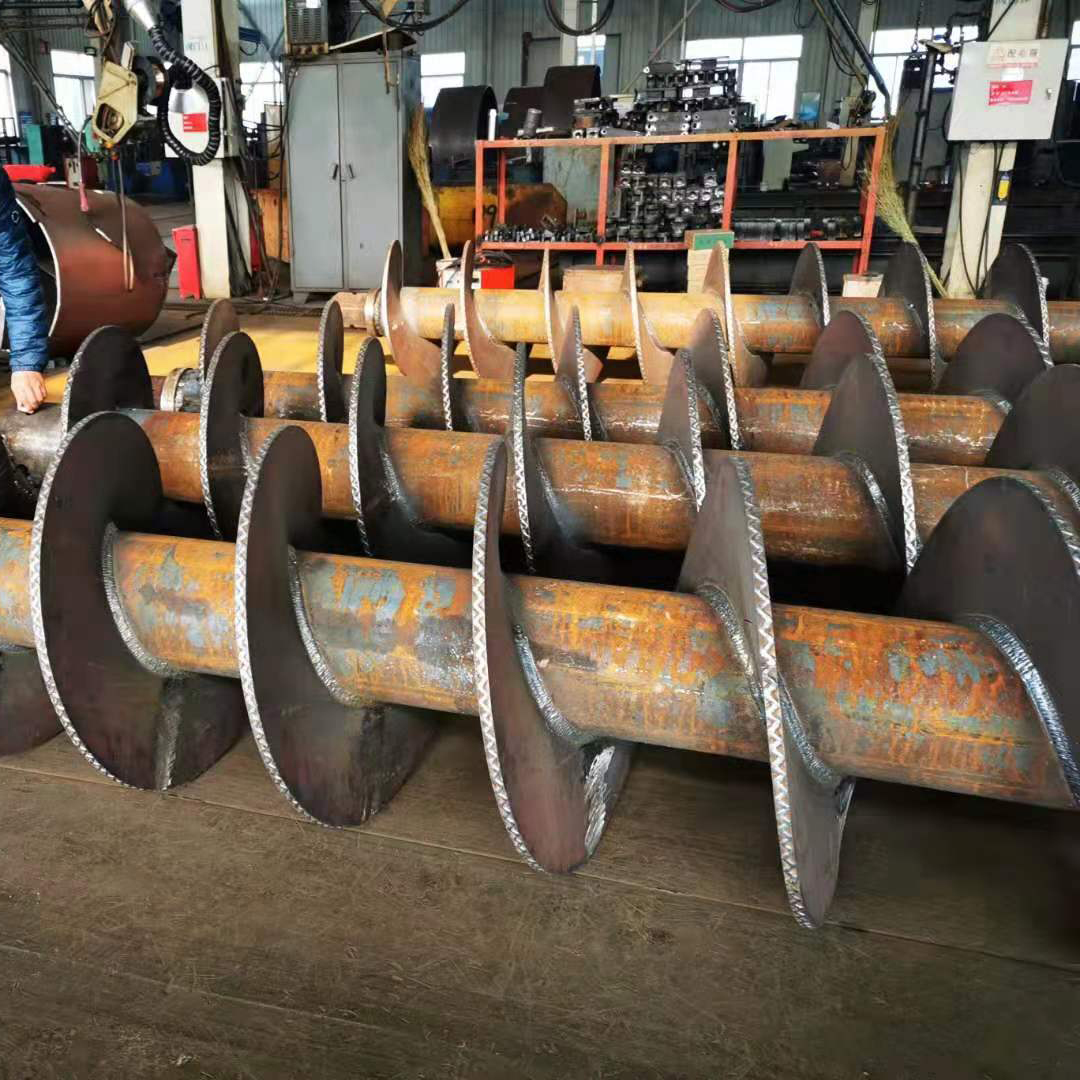

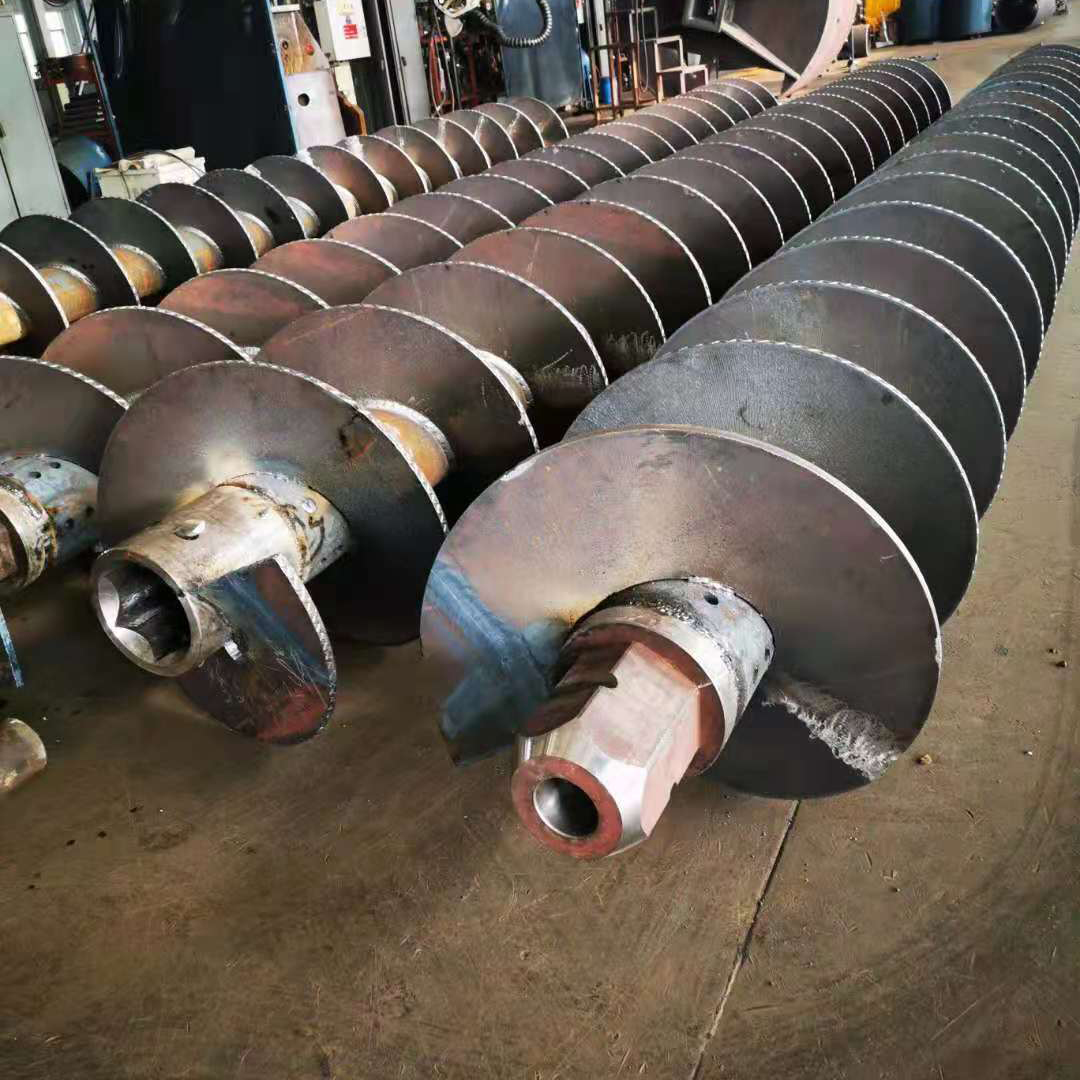

Detailed Parameter Dimensions (D / P / δ / L)
| D |
P |
δ |
L (m) |
Weight (kg) |
| 400 |
340 |
16 |
2 |
283 |
| 3 |
386 |
| 4 |
489 |
| 5 |
592 |
| 6 |
695 |
| 500 |
400 |
16 |
2 |
465 |
| 3 |
638 |
| 4 |
811 |
| 5 |
983 |
| 6 |
1156 |
| 600 |
500 |
20 |
2 |
526 |
| 3 |
730 |
| 4 |
933 |
| 5 |
1137 |
| 6 |
1340 |
| 800 |
500 |
20 |
2 |
671 |
| 3 |
948 |
| 4 |
1223 |
| 5 |
1499 |
| 6 |
1775 |
| 1000 |
500 |
20 |
2 |
865 |
| 3 |
1225 |
| 4 |
1592 |
| 5 |
1961 |
| 6 |
2329 |

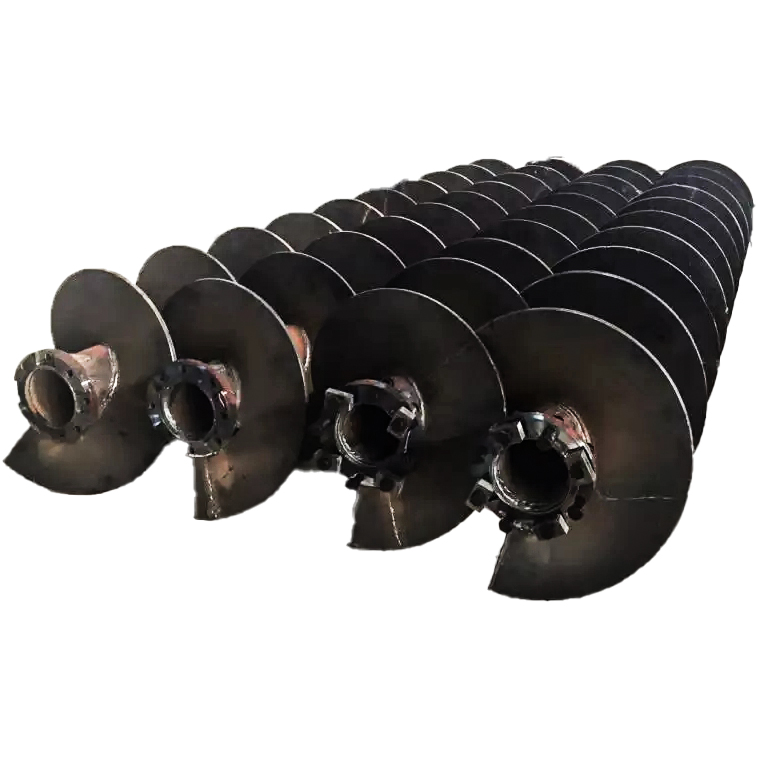

Flange Connection Specifications (φ / P / δ1 / δ2)
| φ |
P |
δ1 |
δ2 |
Weight (kg) |
| 400 |
340 |
30 |
16 |
254 |
| 500 |
400 |
30 |
16 |
386 |
| 600 |
500 |
40 |
20 |
449 |
| 800 |
500 |
40 |
20 |
603 |
| 1000 |
500 |
40 |
20 |
797 |
Frequently Asked Questions
What are the available dimensions for the Hopper series?
The standard Hopper series is available in diameters ranging from 408 mm to 1058 mm, with heights spanning 850 mm to 1250 mm. Weights vary accordingly from 70 kg to 207 kg. Hopper 2 series offers larger capacities up to 3 m³ with diameters up to 2000 mm.
How do length modifications affect the weight of the Conduit?
For standard Conduits, weight increases linearly with length. For example, a 1000 mm length weighs 49 kg, while a 6000 mm length weighs 234 kg, adding approximately 37 kg per additional meter.
What does the capacity in the Hopper 2 specifications refer to?
The capacity (listed in cubic meters, m³) defines the volumetric storage capability of the Hopper 2. It ranges from 1 m³ (for the 1500 mm x 1270 mm dimension) up to 3 m³ (for the 2000 mm x 1350 mm dimension).
What are the typical configurations for the Conduit 2 specifications?
Conduit 2 features multiple standard L1 options (from 500 mm up to 3000 mm) paired alongside a continuous standard L2 configuration of 3900 mm which features a fixed weight of 134 kg.
What do the parameters P, δ, and φ stand for in the specification tables?
These parameters denote key technical dimensions: "φ" or "D" indicates nominal diameter, "P" typically stands for the pitch circle diameter or mounting pattern limit, and "δ" (including δ1 and δ2) represents thickness specifications critical for pressure and strength ratings.
