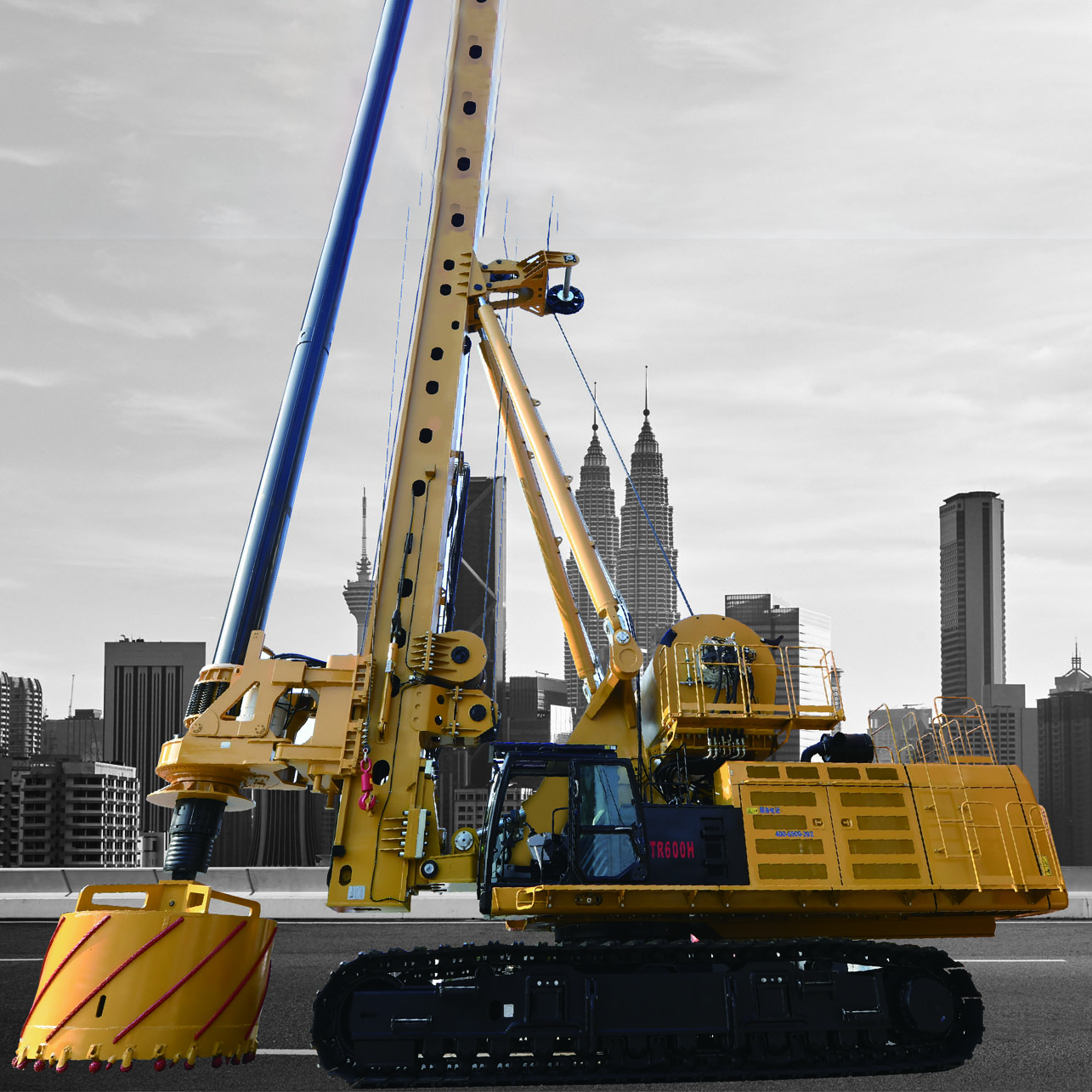

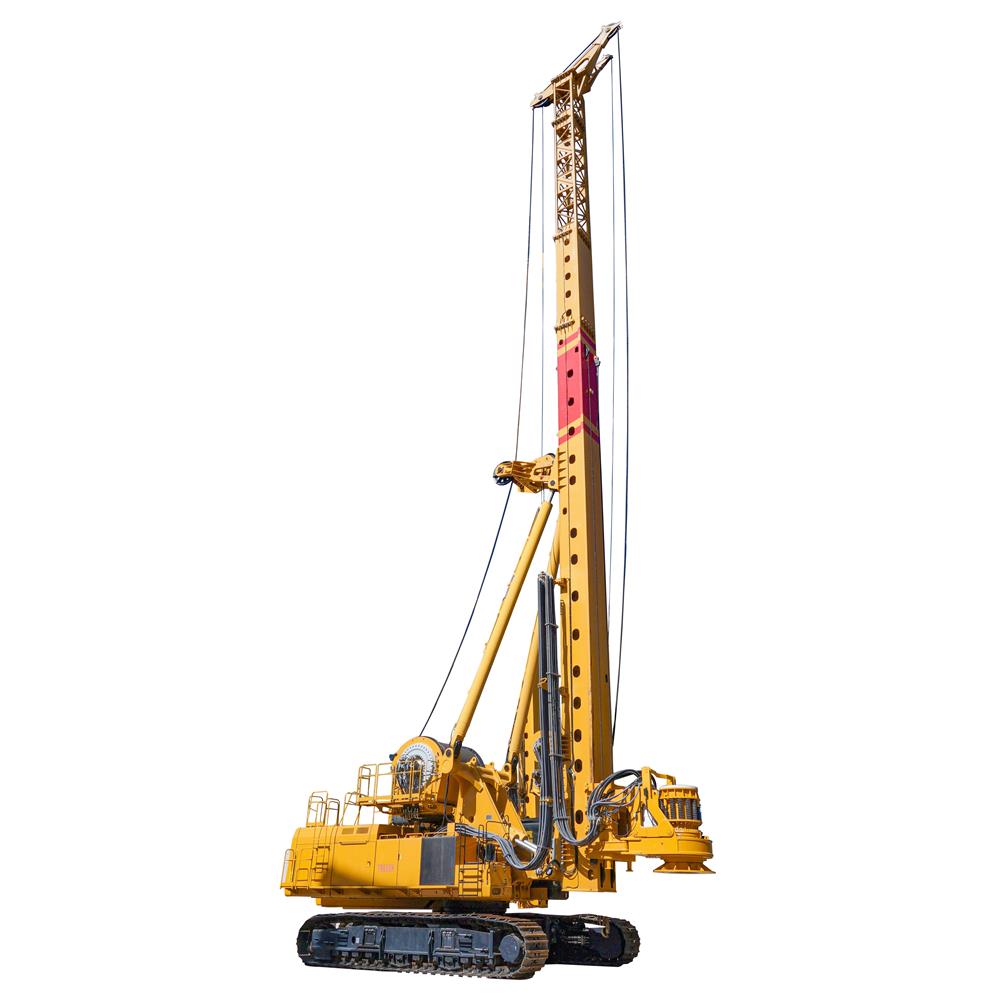

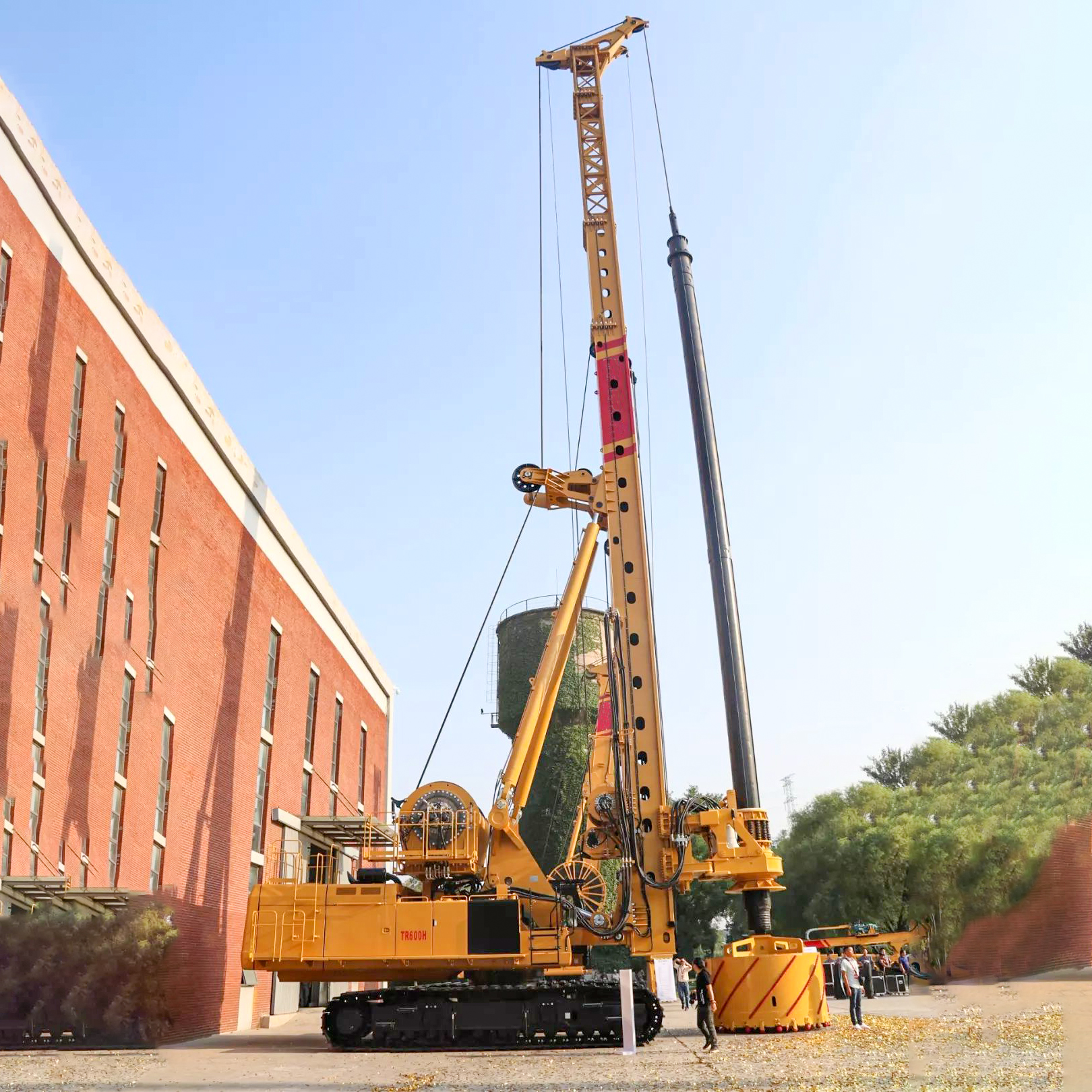

TR600D rotary drilling rig uses retractable caterpillar chassis. CAT counterweight is moved to the backwards and variable counterweight is added. It has nice appearance, comfortable to operate, energy saving, environmental protection, reliable and durable. Germany Rexroth motor and zollern reducer go well with each other. The core of hydraulic system is the load feedback technology which enables the flow to be allocated to each working device of the system according to needs to realize best matching under different working conditions. It saves engine power greatly and reduces energy consumption.
Advanced Structure
Adopt middle mounted main winch, crowd winch, box section steel plate welded lower mast, truss type upper mast, truss type cathead, variable counterweight (variable number of counterweight blocks) structure and axis turntable structure to reduce the weight of the machine and ensure overall reliability and structural safety.
Intelligent Control System
The vehicle mounted distributed electrical control system integrates electrical components such as foreign vehicle mounted controllers, displays and sensors. It can realize many functions of engine starting and stopping monitoring, fault monitoring, drilling depth monitoring, vertical monitoring, electromagnetic reversing protection and drilling protection.
High-Strength Build
The key structure is made of steel plate with fine gain of high strength up to 700-900mpa with high strength, good rigidity and light weight. Optimized design combined with the result from finite element analysis makes the structure more reasonable and design more reliable.
Optimized Drilling Performance
The use of advanced welding technology makes it possible for super large tonnage rig to be lightweight. The working devices are joint researched and designed by first-class brand manufacturers which ensures the best construction performance and construction efficiency. Drilling tools can be selected according to different working conditions so as to ensure smooth construction of the rotary drilling rig.
Frequently Asked Questions
What engine and motor configuration does the TR600D use?
The TR600D is powered by a high-efficiency CAT engine (rated power 406 kW at 2200 r/min) paired with a Germany Rexroth motor and a Zollern reducer for optimal durability and power transfer.
How does the hydraulic system optimize energy consumption?
The core of the hydraulic system features load feedback technology. This system allocates the flow to each working device according to real-time needs, ensuring the best matching under different working conditions and saving engine power.
What safety and monitoring features are integrated into the control system?
The vehicle-mounted distributed electrical control system integrates controllers, displays, and sensors to monitor engine start/stop, faults, drilling depth, and verticality, as well as providing electromagnetic reversing and drilling protection.
What materials are used in the construction of the structural frame?
Key structures are built using high-strength steel plates with a fine grain grade up to 700-900 MPa, combined with finite element analysis to ensure high rigidity, light weight, and reliable design.
What are the drilling depth and diameter capabilities?
The TR600D rotary drilling rig supports a maximum drilling diameter of 4500 mm and can reach a maximum drilling depth of 158 m.
Are there different options for the Kelly bar?
Yes, it comes with an Interlocking Kelly bar measuring ɸ630*4*30m, and offers an optional Friction Kelly bar measuring ɸ630*6*28.5m to suit different job site conditions.
