Famous TR138D Rotary Drilling Rig Exporters, Products

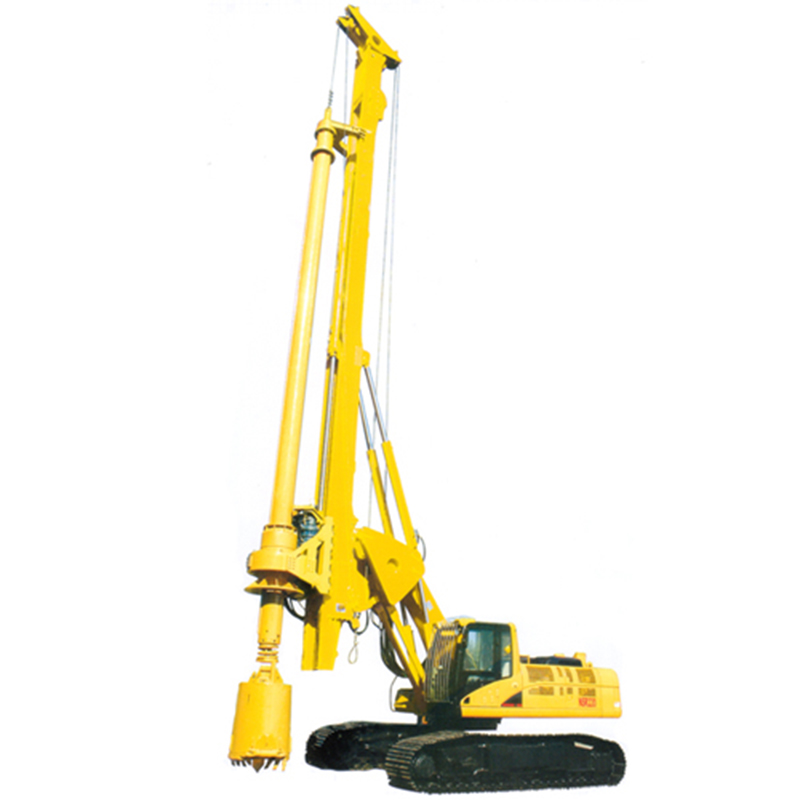

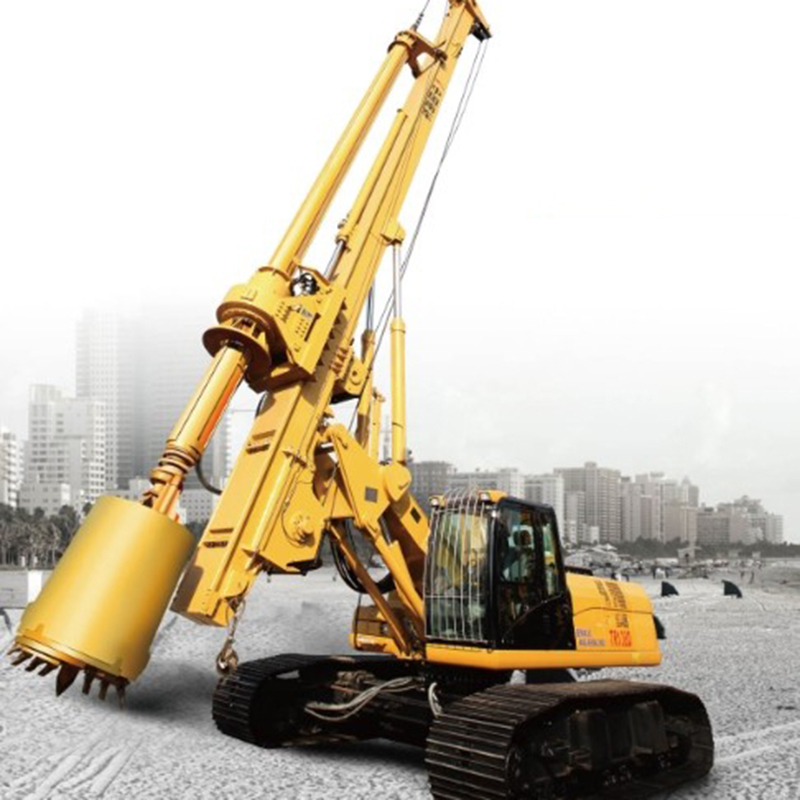

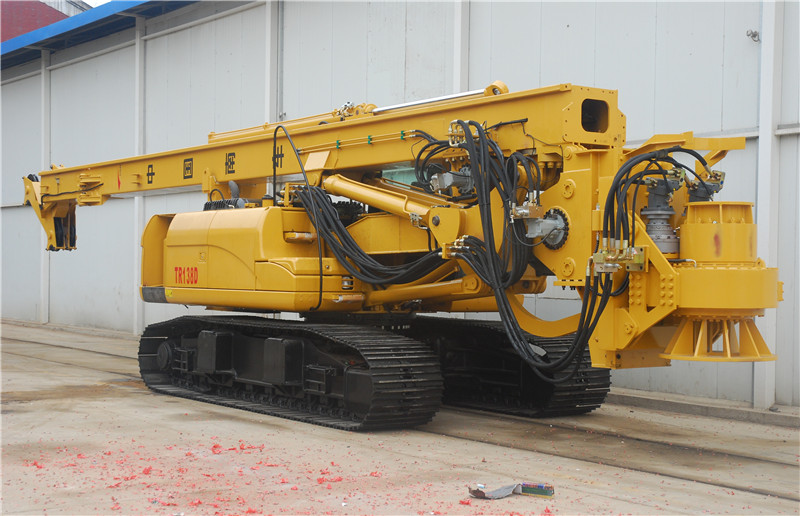

TR138D rotary drilling rig is new designed self-erecting rig which mounted on original Caterpillar 323D base, adopts advanced hydraulic loading back technology, integrates advanced electronic control technology. The whole performance ofTR138D rotary drilling rig has reached advanced world standards.

Send Inquiry

Product Description

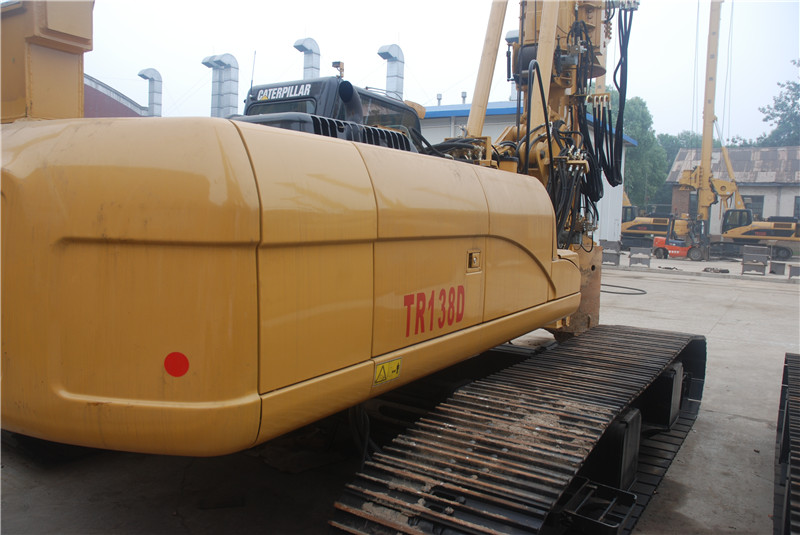

TR138D rotary drilling rig has adopted CAT C6. 4 engine with ACERTTM Technology offers more engine power and runs at lower for better fuel efficiency and reduced wear. turbo suction, supply 147 hp power, Optimal machine performance, more power output, less emission.

Advanced Hydraulic System & Structure

TR138D rotary drilling rig has new designing original hydraulic system. Hydraulic systems adopt Rexroth motor and valve, ensure power high efficiency when and where required. Wide crawler provides lower grounding pressure and improves the whole machine stability and adaptability. It is easy to work and transport by extendable crawler TR138D has separated auxiliary winch collocated on the mast from triangle parts, good view and maintenance more convenient, Compacted Parallelogram structure to reduce the length and height of the whole machine, reduce the machine, s request for the work space, easy for transportation.

Technical Specifications

TR138D Rotary drilling rig
Engine	Model		Cummins/CAT
	Rated power	kw	123
	Rated speed	r/min	2000
Rotary head	Max.output torque	kN´m	140
Rotary head	Drilling speed	r/min	0-38
Max. drilling diameter		mm	1500
Max. drilling depth		m	40/50
Crowd cylinder system	Max. crowd force	Kn	120
	Max. extraction force	Kn	120
	Max. stroke	mm	3100
Main winch	Max. pull force	Kn	140
	Max. pull speed	m/min	55
	Wire rope diameter	mm	26
Auxiliary winch	Max. pull force	Kn	50
	Max. pull speed	m/min	30
	Wire rope diameter	mm	16
Mast inclination Side/ forwards/ backwards		°	±4/5/90
Interlocking Kelly bar			ɸ355410
Friction Kelly bar (optional)			ɸ355510
Undercarrige	Max. traveling speed	km/h	2
	Max. rotation speed	r/min	3
	Chassis width (extension)	mm	3000/3900
	Tracks width	mm	600
	Caterpillar grounding Length	mm	3900
Working Pressure of Hydraulic System		Mpa	32
Total weight with kelly bar		kg	36000
Dimension	Working (Lx Wx H)	mm	7500x3900x15800
Dimension	Transportation (Lx Wx H)	mm	12250x3000x3520

Electric Systems & Intelligent Cabin Control

Electric systems are from Pal-fin auto-control, optimal design of electric control system improves the control accuracy and the feedback speed. All of key components adopted first class international brand, increase the interchangeability and running stability, more reasonable depth measuring device. The newest designed winch drum structure which the service life of steel wire rope extend to 3000m.

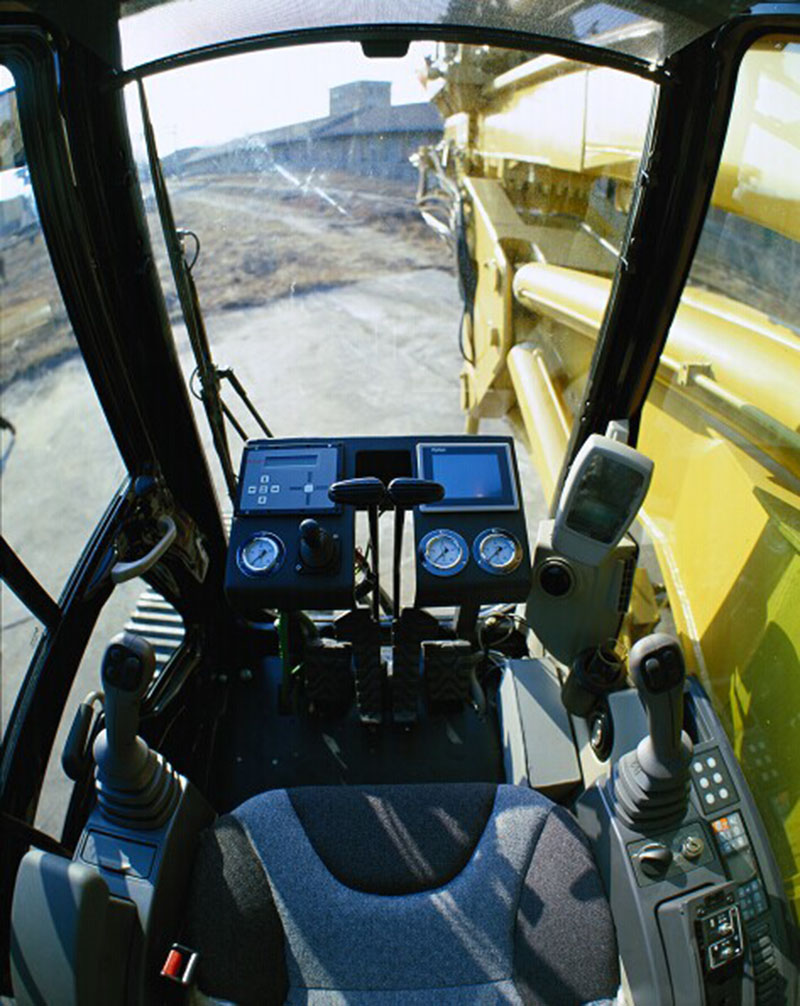

TR138D has a large-space soundproofed cabin with high-power air condition and luxurious damping seat provides driver high-comfort and pleasured working environment. At two side, there are very convenient and humanization-designed operating joystick, Touch screen and monitor show the parameters of system includes warning device for abnormal situation. The pressure gage can also provide more intuitive working condition for the operating driver. It has the pre-automatic detection function before starting the whole machine.

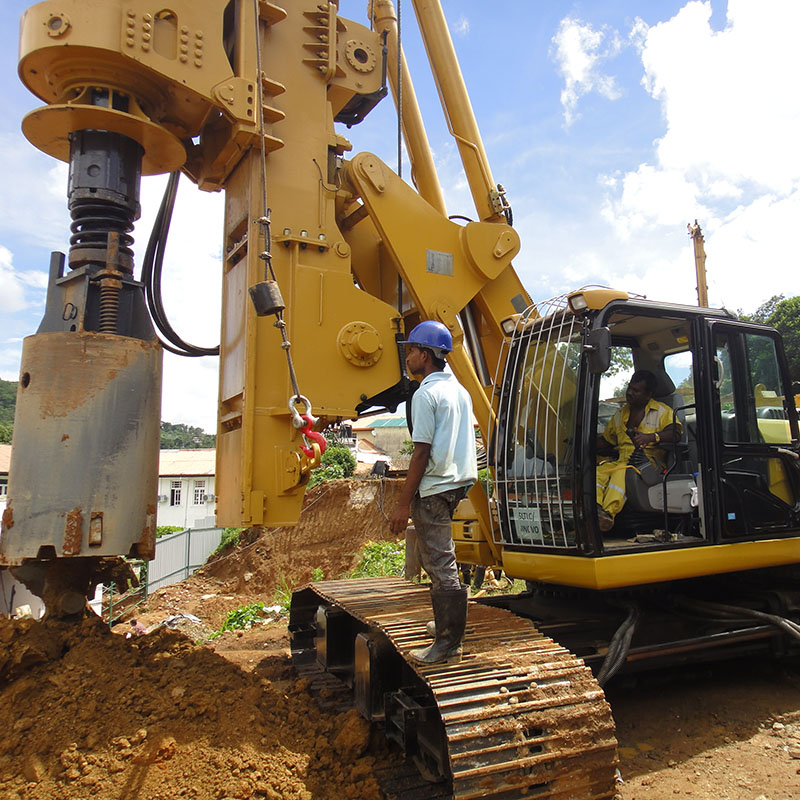

Applications & Key Base Features

TR138D rotary drilling rig is new designed self-erecting rig which mounted on original Caterpillar 323D base, adopts advanced hydraulic loading back technology, integrates advanced electronic control technology. The whole performance of TR138D rotary drilling rig has reached advanced world standards.

Suitable Applications:
- Drilling with telescopic friction or interlocking kelly bar - standard
- Drilling cased bore piles (casing driven by rotary head or optionally by casing oscillator)

The corresponding improvement on both structure and control which makes the structure more simple and compact, the performance more reliable and the operation more humanized.

Frequently Asked Questions

What engine powers the TR138D rotary drilling rig?

The rig features a CAT C6.4 engine with ACERTTM Technology (with Cummins options available). It supplies 147 hp (123 kw rated power) and runs at lower speeds for optimal fuel efficiency and reduced wear.

What are the maximum drilling specifications of the TR138D?

The rig achieves a maximum drilling depth of 40 to 50 meters and a maximum drilling diameter of 1500 mm.

Which key brands are integrated into the hydraulic and electrical systems?

The hydraulic system integrates premium Rexroth motors and valves, while the electric control system utilizes a Pal-fin auto-control setup for increased speed, accuracy, and overall feedback.

What base chassis is the TR138D mounted on?

The TR138D is a newly designed self-erecting rig mounted on an original Caterpillar 323D base, featuring advanced electronic control and hydraulic loading back technologies.

What kind of applications is this rig suitable for?

It is designed for drilling with telescopic friction or interlocking kelly bars as standard, and drilling cased bore piles where the casing is driven by the rotary head or optionally by a casing oscillator.

What features in the cabin improve operator comfort and safety?

The rig is built with a soundproofed cabin featuring high-power air conditioning, a luxurious damping seat, ergonomic joysticks, a touch screen parameter monitor with abnormal situation warnings, and a pre-automatic starting detection system.
