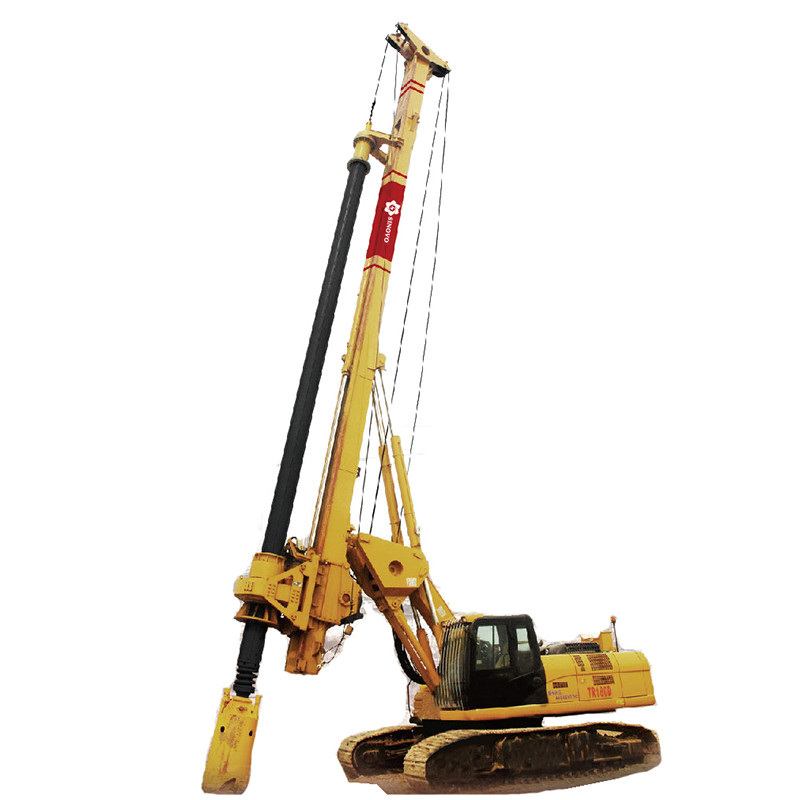

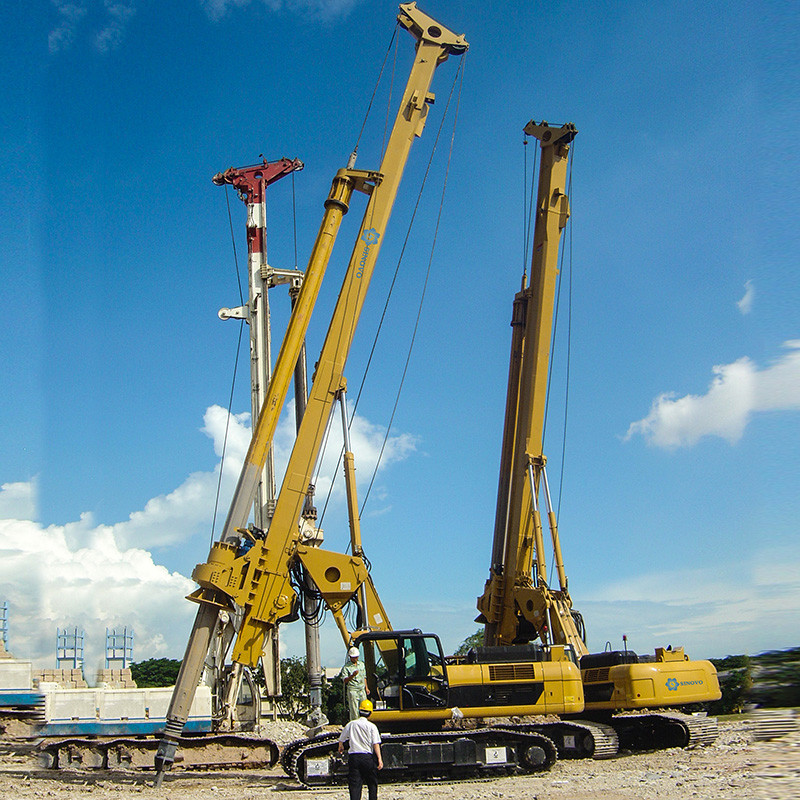

TR160D rotary drilling rig is new designed self-erecting rig which mounted on original Caterpillar base, adopts advanced hydraulic loading back technology, integrates advanced electronic control technology, which makes the whole performance of TR160D rotary drilling rig reach advanced world standards It is suitable for the following applications

Send Inquiry

Product Description

Engine System

TR160D rotary drilling rig adopts CAT C7 engine with ACERT M Technology offers more engine power and runs at lower speeds for better fuel efficiency and reduced wear. Turbo suction, Optimal machine performance, more power output, less emission.

Hydraulic Circuit

The systems circuit adopts Caterpillar hydraulic system main control circuit and pilot control circuit, uses advanced loading back technology which negative flow hydraulic pump with constant power output extremely fit engine output. Pilot control makes the operation flexible, comfortable, exact and safe. Various kinds of hydraulic elements adopted world famous brand, such as Rexroth, Parker, etc. To ensure the hydraulic system is high reliability.

Electric & Structure

Electric systems are from Pal-fin auto-control, optimal design of electric control system improves the control accuracy and the feedback speed has separated auxiliary winch collocated on the mast from triangle parts, good view and maintenance more convenient. Compacted Parallelogram structure to reduce the length and height of the whole machine, reduce the machine's request for the work space, easy for transportation.

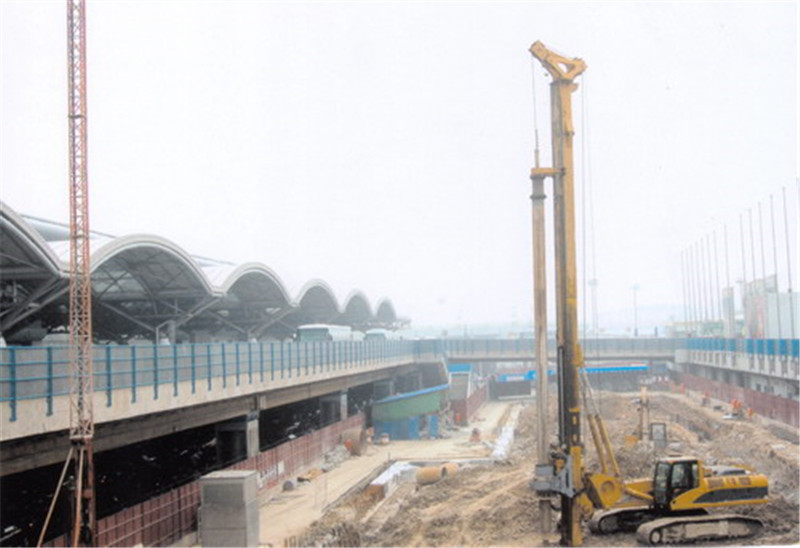

TR160D Rotary Drilling Rig Structure Diagram

Parameter Item		Unit	Specification Details
Engine	Model		Cummins/CAT
	Rated power	kw	154
	Rated speed	r/min	2200
Rotary head	Max.output torque	kN·m	163
Rotary head	Drilling speed	r/min	0-30
Max. drilling diameter		mm	1500
Max. drilling depth		m	40/50
Crowd cylinder system	Max. crowd force	Kn	140
	Max. extraction force	Kn	160
	Max. stroke	mm	3100
Main winch	Max. pull force	Kn	165
	Max. pull speed	m/min	78
	Wire rope diameter	mm	26
Auxiliary winch	Max. pull force	Kn	50
	Max. pull speed	m/min	90
	Wire rope diameter	mm	16
Mast inclination Side/ forwards/ backwards		°	±4/5/90
Interlocking Kelly bar			ɸ377411
Friction Kelly bar (optional)			ɸ377511
Undercarrige	Max. traveling speed	km/h	2.3
	Max. rotation speed	r/min	3
	Chassis width (extension)	mm	3000/3900
	Tracks width	mm	600
	Caterpillar grounding Length	mm	3900
Working Pressure of Hydraulic System		Mpa	32
Total weight with kelly bar		kg	51000
Dimension	Working (Lx Wx H)	mm	7500x3900x16200
Dimension	Transportation (Lx Wx H)	mm	12250x3000x3520

Core Structural Features

TR160D rotary head equipped BONFIGLIOLI or BREVINI reducer, and REXROTH or LINDE motor, heavy damping spring on the base of multilevel shock absorption design, which ensure operate more safe.
The newest designed winch drum structure is to avoid steel wire rope tangling and lengthen the service life of steel wire rope.
A large-space soundproofed cabin with high-power air condition and luxurious damping seat, provide high-comfort and pleasured working environment. At two side, there are very convenient and humanization -designed operating joystick, Touch screen and monitor show the parameters of system, des warning device for abnormal situation. The pressure gage can also provide more intuitive working condition for the operating driver. It has the pre-automatic detection function before starting the whole machine.

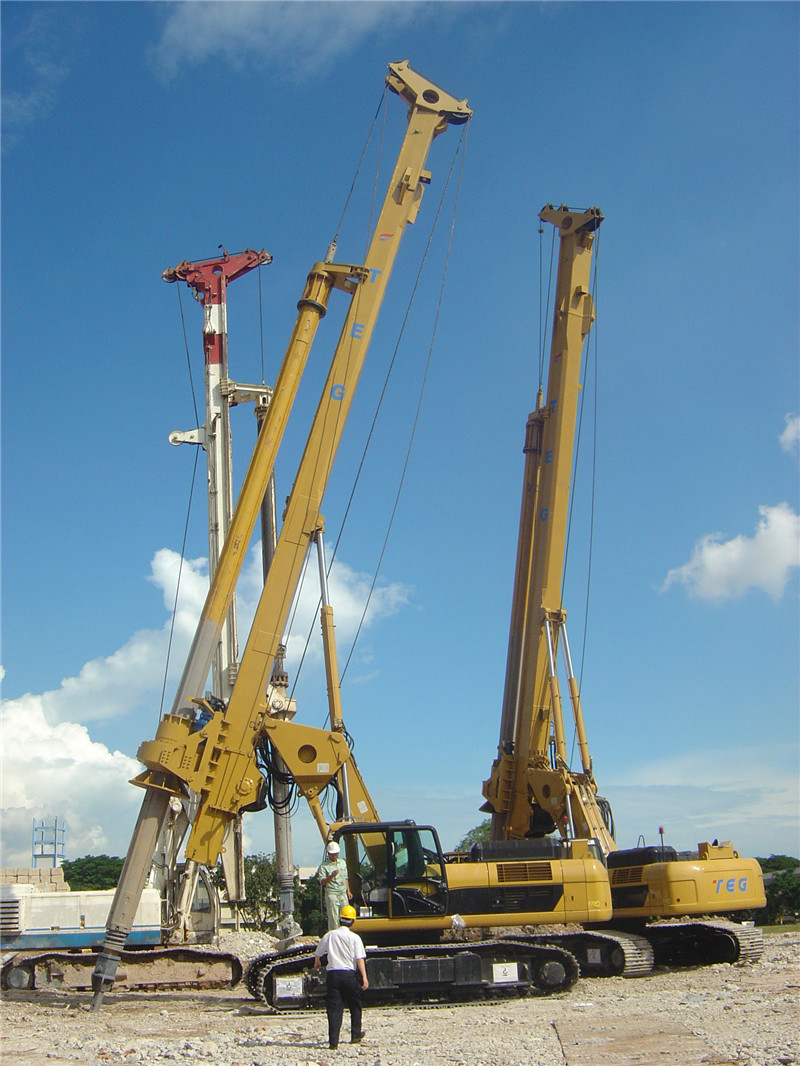

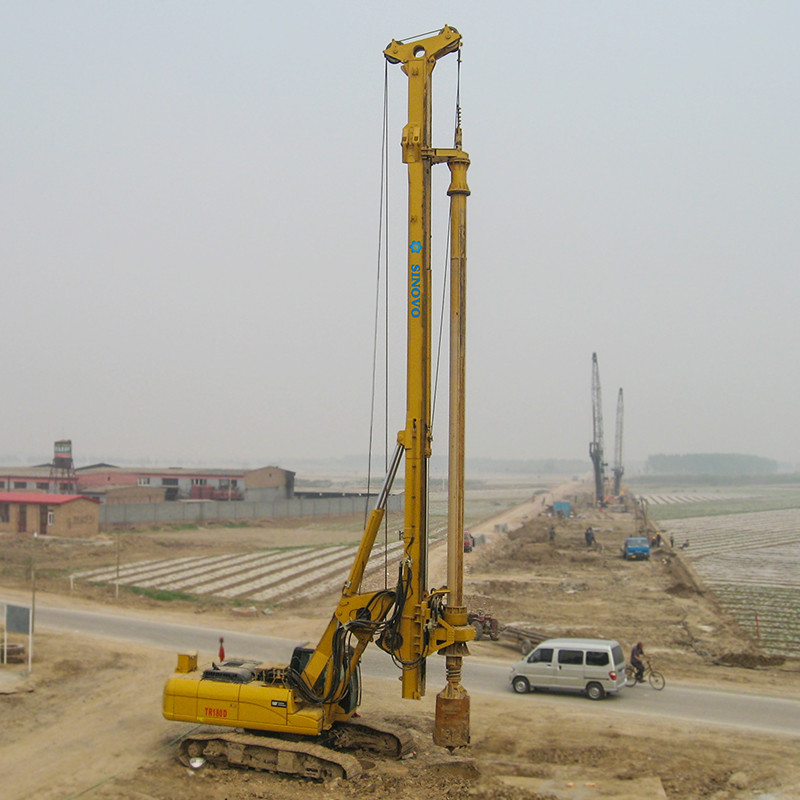

TR160D Rotary Drilling Rig Site Detail 1

TR160D Rotary Drilling Rig Site Detail 2

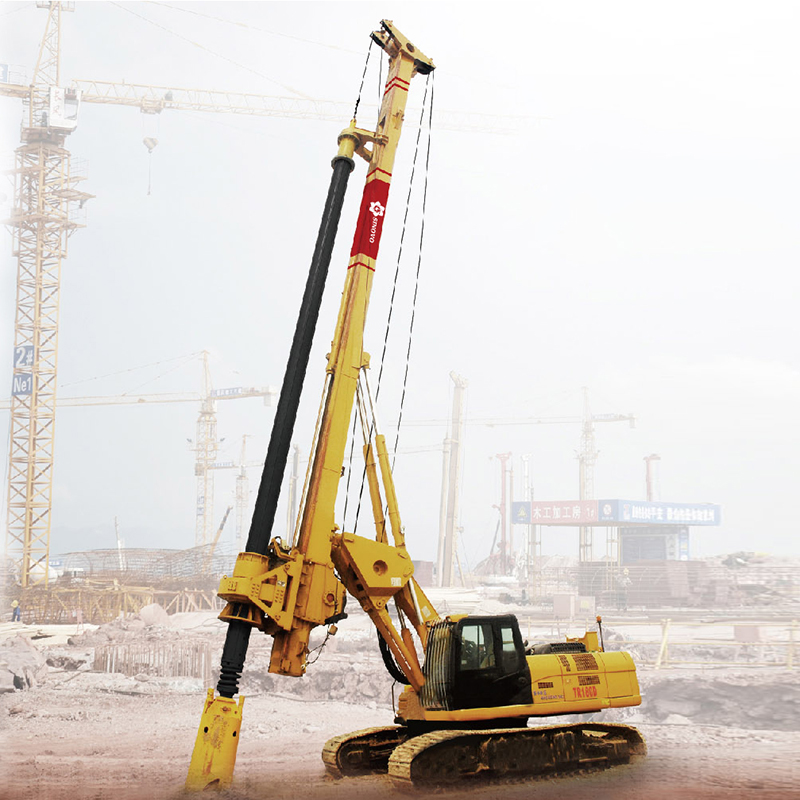

TR160D Rotary Drilling Rig Site Detail 3

Applications & Versatility

Drilling with telescopic friction or interlocking kelly bar standard supply.
Drilling cased bore piles (casing driven by rotary head or optionally by casing oscillator).
CFA Piles by means of continue auger: Either crowd winch system or hydraulic crowd cylinder.
Hydraulic pile hammer application.
Micro piling drilling auger application.

The corresponding improvement on both structure and control as this result which makes the structure more simple and compact, the performance more reliable and the operation more humanized.

Frequently Asked Questions (FAQ)

What engine is equipped on the TR160D rotary drilling rig?

The TR160D adopts the CAT C7 engine featuring ACERT M Technology. This configuration delivers higher engine power and operates at lower speeds to achieve improved fuel efficiency and reduced wear.

What are the main applications of the TR160D drilling rig?

It is suitable for drilling with telescopic friction or interlocking kelly bars, drilling cased bore piles (driven by rotary head or casing oscillator), constructing CFA piles, hydraulic pile hammer applications, and micro piling drilling.

What components are used in the TR160D rotary head hydraulic system?

The rotary head is equipped with a BONFIGLIOLI or BREVINI reducer, and a REXROTH or LINDE motor. It also features a heavy damping spring design based on multilevel shock absorption for increased operating safety.

How does the winch design prevent steel wire rope tangling?

The TR160D utilizes a newly designed winch drum structure specifically engineered to avoid steel wire rope tangling, which directly extends the overall service life of the steel wire rope.

What features enhance the operator's comfort and safety in the cabin?

The rig has a large, soundproofed cabin with high-power air conditioning and a luxurious damping seat. It is equipped with humanized operating joysticks, a touchscreen monitor for system parameters, a pressure gauge, warning devices for abnormal situations, and a pre-automatic detection function prior to starting.

What are the maximum drilling specifications of this machine?

The TR160D has a maximum drilling diameter of 1500 mm and a maximum drilling depth of 40 to 50 meters, depending on configuration options.
