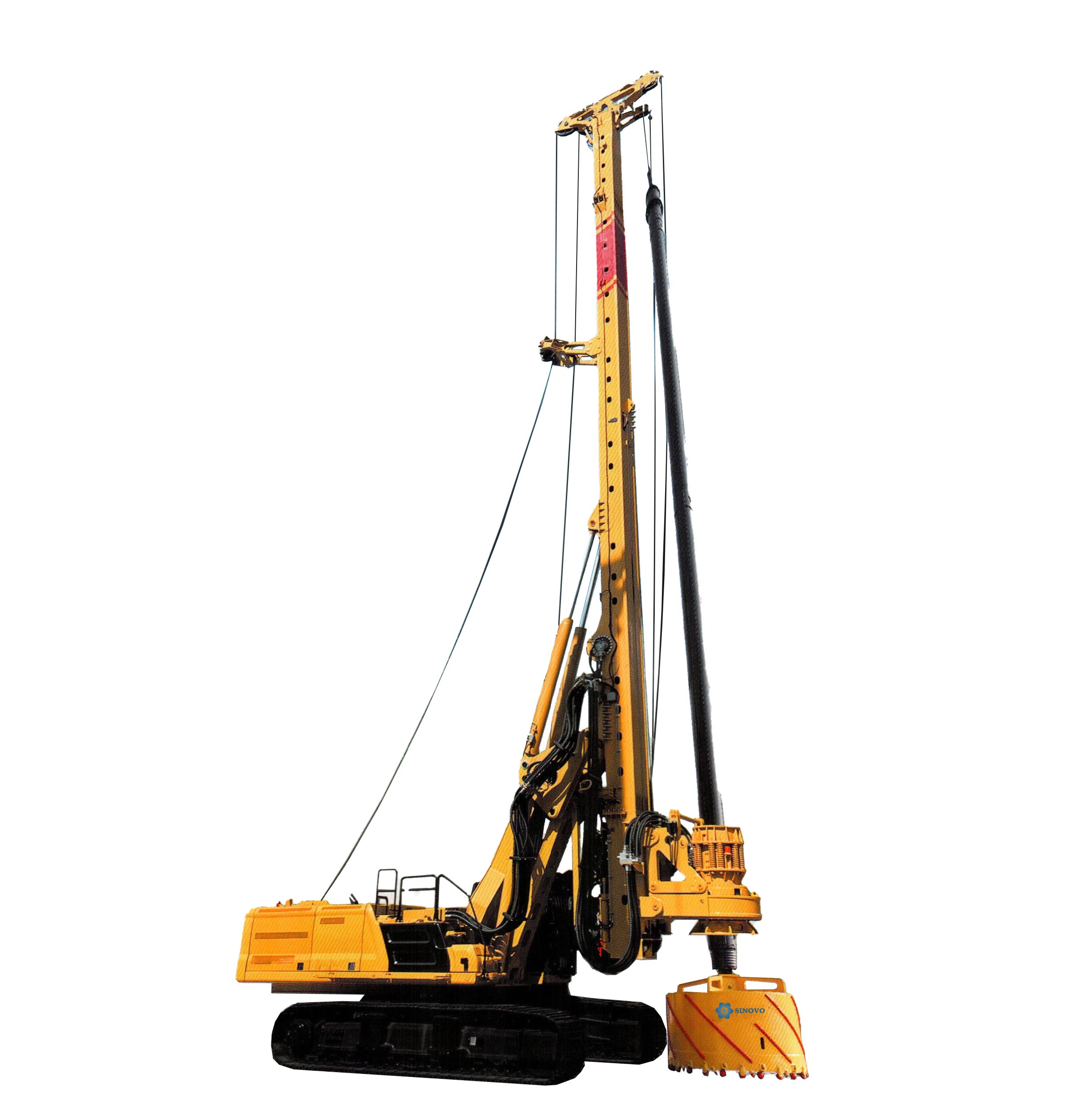

Innovative design of the industry’s first all-electric control technology, which is controlled by electrical signals throughout the entire process, subverts the traditional control method of rotary drilling rigs, and possesses super-generation technical advantages.

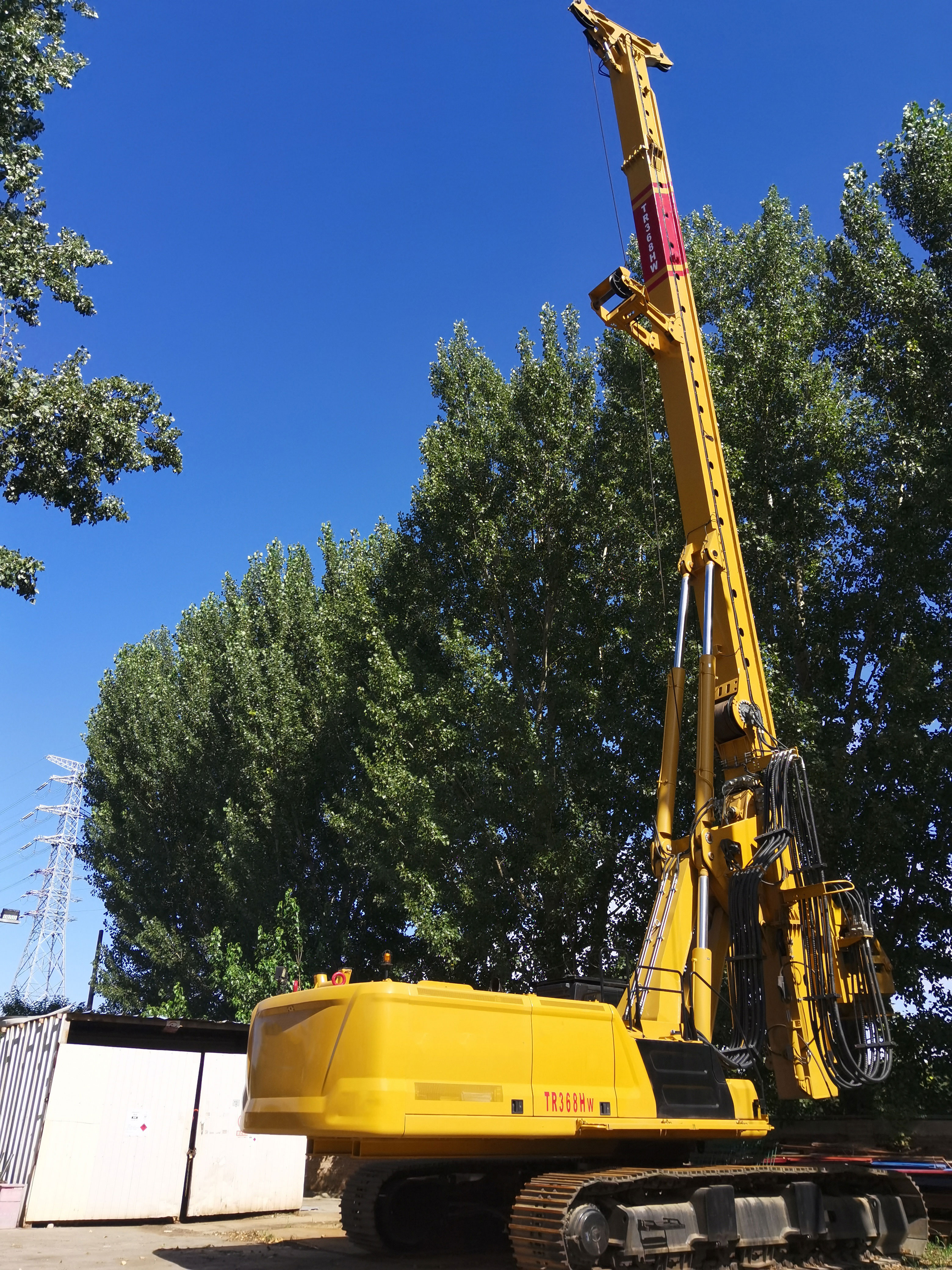

A new layout of the vehicle structure; The latest Carter rotary excavator chassis; A new generation of rotary heads, high-strength tension resistant drill pipes; hydraulic components such as main pumps and motors are all equipped with large displacement.
Guided by market demand and guided by technological innovation, it is positioned to develop high-quality pile foundation construction machinery to solve the problems of low construction efficiency, high construction cost and severe pollution of ordinary drilling rigs, and to provide high-end quality products for construction enterprises.
It is positioned to provide customers with overall construction solutions, especially in complex application environments and geological conditions, to improve the construction revenue of construction projects and achieve win-win cooperation with customers.

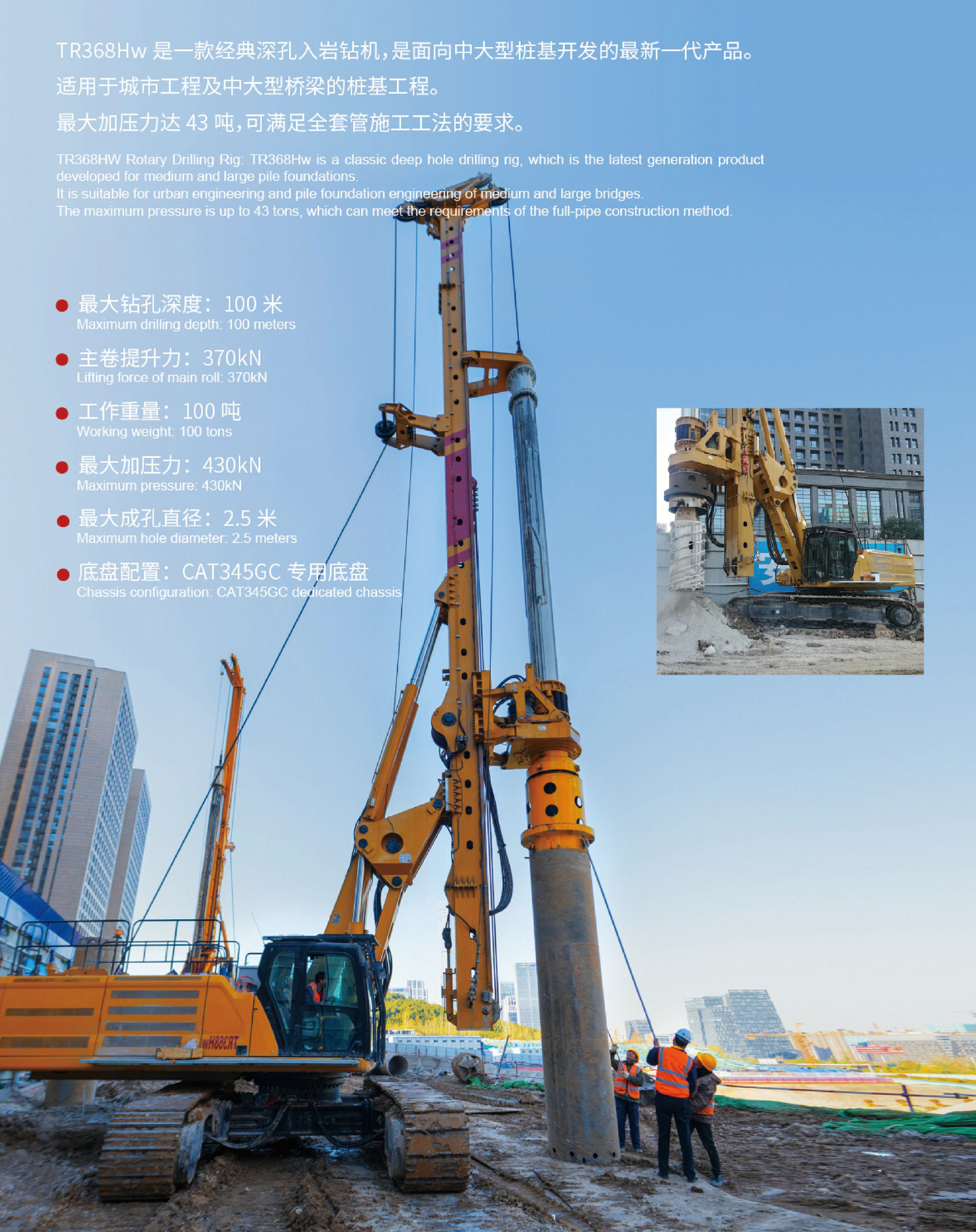

| Main parameters | Parameter | Unit |
|---|---|---|
| Pile | ||
| Max. drilling diameter | 2500 | mm |
| Max. drilling depth | 100/65 | m |
| Rotary drive | ||
| Max. output torque | 370 | KN-m |
| Rotary speed | 6~23 | rpm |
| Crowd system | ||
| Max. crowd force | 430 | KN |
| Max. pulling force | 430 | KN |
| Stroke of crowd system | 9000 | mm |
| Main winch | ||
| Lifting force (the first layer) | 370 | KN |
| Wire-rope diameter | 36 | mm |
| Lifting speed | 73/50 | m/min |
| Auxiliary winch | ||
| Lifting force (the first layer) | 110 | KN |
| Wire-rope diameter | 20 | mm |
| Mast inclination angle | ||
| Left/right | 5 | ° |
| Forward | 5 | ° |
| Chassis | ||
| Chassis model | CAT345GC | |
| Engine manufacturer | 卡特彼勒CAT | CATERPILLAR |
| Engine model | C-9.3B | |
| Engine power | 259 | KW |
| Engine power | 1750 | rpm |
| Chassis overall length | 5988 | mm |
| Track shoe width | 800 | mm |
| Tractive force | 680 | KN |
| Overall machine | ||
| Working width | 4300 | mm |

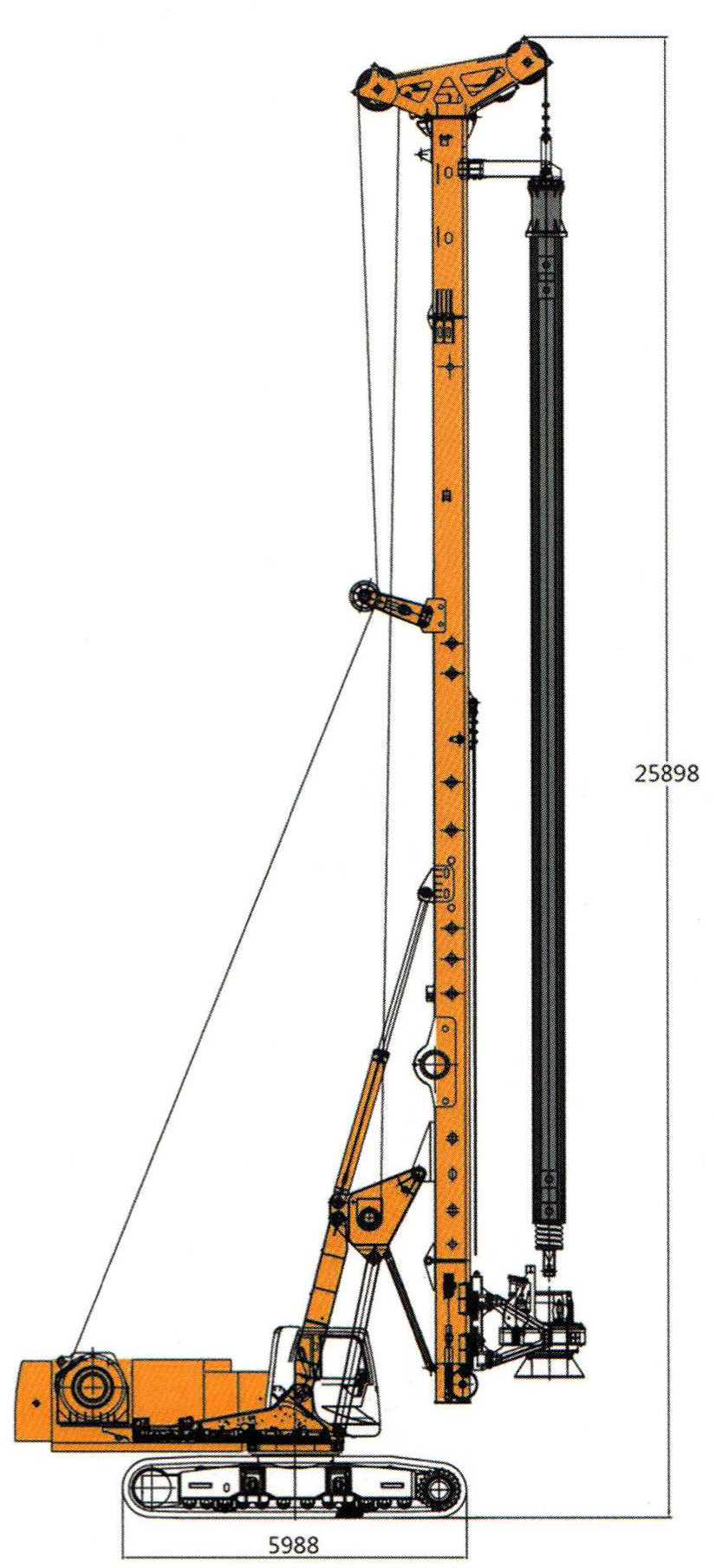

| Working height | 25898 | mm |

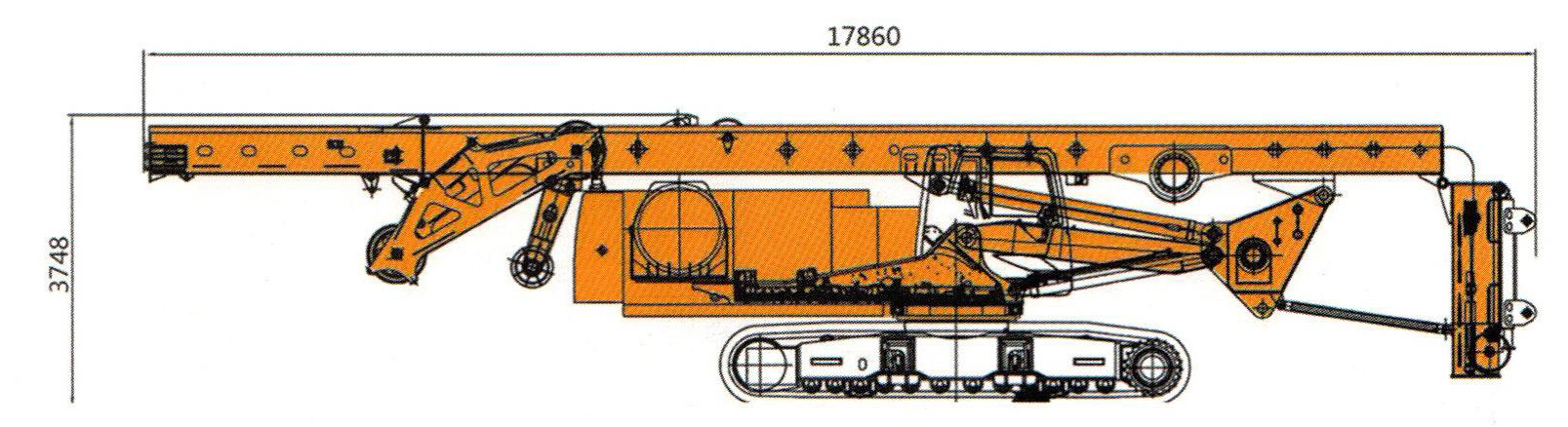

| Transport length | 17860 | mm |
| Transport width | 3000 | mm |
| Transport height | 3748 | mm |
| Total weight (with kelly bar) | 100 | t |
| Total weight (without kelly bar) | 83 | t |
A: It features the industry's first all-electric control technology. Controlled by electrical signals throughout the entire process, it subverts traditional hydraulic control methods, offering superior control precision and advanced generation technological advantages.
A: This rig is equipped with the latest Carter rotary excavator chassis (CAT345GC) and a Caterpillar C-9.3B engine. The engine provides a power output of 259 KW at 1750 rpm, ensuring high efficiency and heavy-duty reliability.
A: The drilling rig supports a maximum drilling diameter of 2500 mm and achieves a maximum drilling depth range of 100 meters (or 65 meters depending on configuration).
A: The standard Kelly bar configuration offers a Friction option of ∅530-6*18 and an Interlock option of ∅530-4*18. For special applications, an Interlock Kelly bar of ∅530-4*19 is available.
A: With upgraded core components, high-displacement hydraulic pumps, and high-strength tension-resistant drill pipes, the rig is specifically positioned to resolve challenges like low efficiency and severe pollution in complex environments.
A: The machine has a transport length of 17860 mm, a transport width of 3000 mm, and a transport height of 3748 mm. The total weight is 100 tonnes with the kelly bar installed and 83 tonnes without the kelly bar.
