| Parameter | Unit | XYT-1B |
| Drilling depth | m | 200 |
| Drilling diameter | mm | 59-150 |
| Rod diameter | mm | 42 |
| Drilling angle | ° | 90-75 |
| Overall dimension | mm | 4500x2200x2200 |
| Rig weight | kg | 3500 |
| Skid | ● | |
Rotation unit |
||
Spindle speed |
||
| Co-rotation | r/min | / |
| Reverse rotation | r/min | / |
| Spindle stroke | mm | 450 |
| Spindle pulling force | KN | 25 |
| Spindle feeding force | KN | 15 |
| Maximum output torque | N.m | 1250 |
Hoist |
||
| Lifting speed | m/s | 0.166, 0.331, 0.733, 1.465 |
| Lifting capacity | KN | 15 |
| Cable diameter | mm | 9.3 |
| Drum diameter | mm | 140 |
| Brake diameter | mm | 252 |
| Brake band width | mm | 50 |
Frame moving device |
||
| Frame moving stroke | mm | 410 |
| Distance away from hole | mm | 250 |
Hydraulic oil pump |
||
| Type | YBC-12/80 | |
| Rated flow | L/min | 12 |
| Rated pressure | Mpa | 8 |
| Rated rotation speed | r/min | 1500 |
Power unit |
||
Diesel engine |
||
| Type | ZS1105 | |
| Rated power | KW | 12.1 |
| Rated speed | r/min | 2200 |

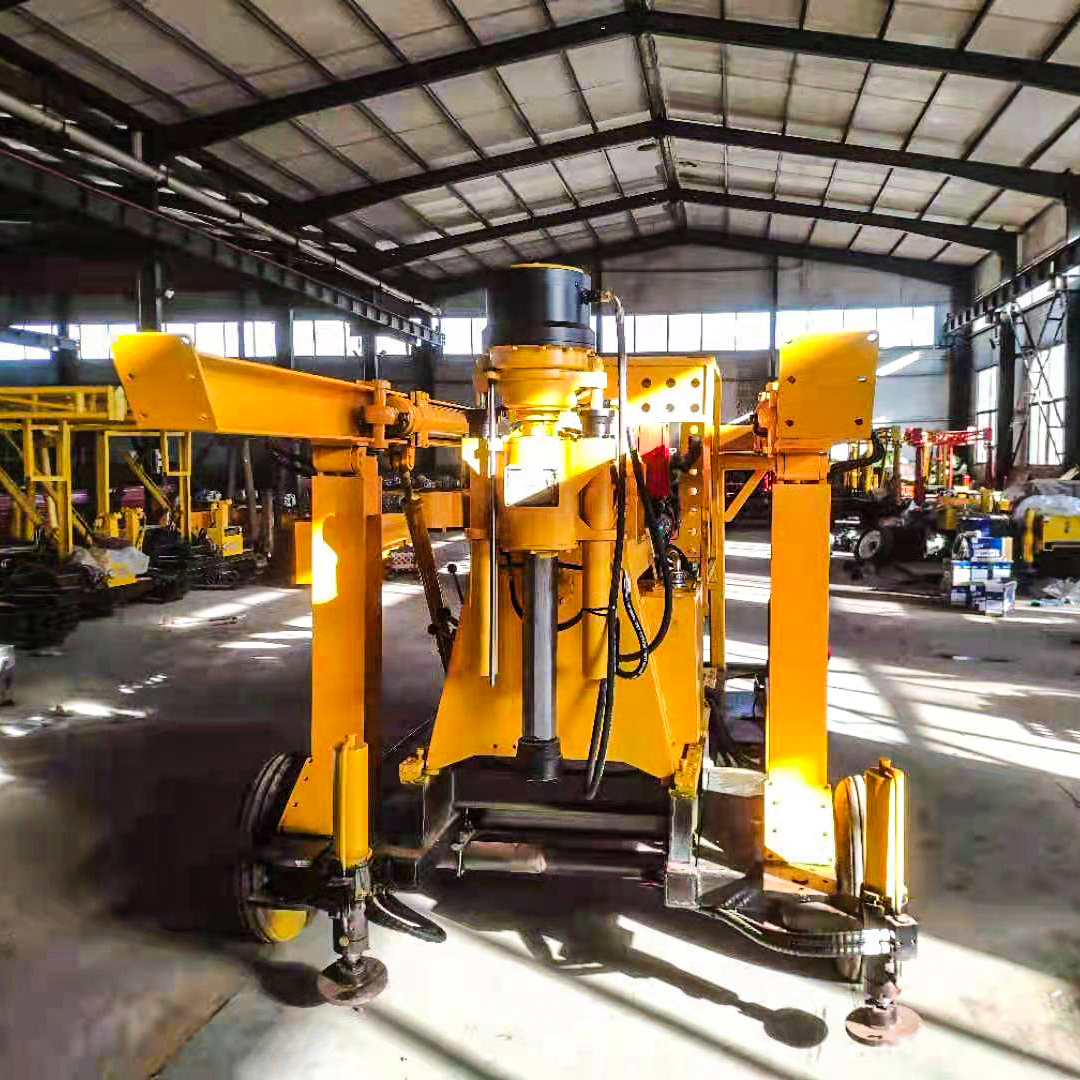

Adopts a full-automatic gantry drill tower, which significantly saves operational time, reduces labor intensity, and ensures structural reliability.

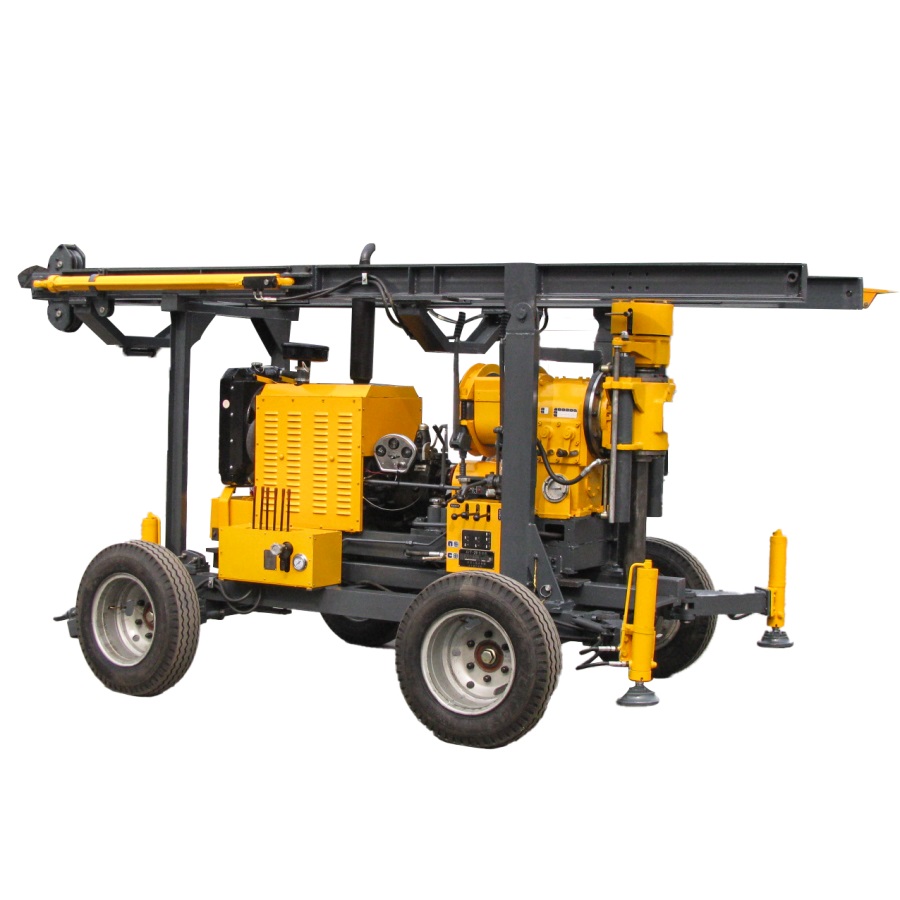

Chassis is built with lightweight tires featuring a low life cycle cost. This setup reduces vehicle traveling noise, body vibration, fuel consumption, and allows road transport without damaging urban surfaces.
Equipped with four hydraulic short legs for quick and convenient setup and leveling. These serve as excellent auxiliary support during drilling operations.
The diesel engine utilizes electric start technology, significantly lowering the manual effort required by operators to start up the system.
Integrates a dedicated bottom hole pressure gauge to continuously monitor the active drilling pressure during operations.
The rig is ideal for engineering geological surveys of structures such as railways, hydropower projects, transportation facilities, bridges, and dam foundations, as well as core drilling, physical surveys, small grouting holes, and mini water well drilling.
The XYT-1B is designed to support a maximum drilling depth of 200 meters. The drilling diameter ranges from 59mm to 150mm with a standard rod diameter of 42mm.

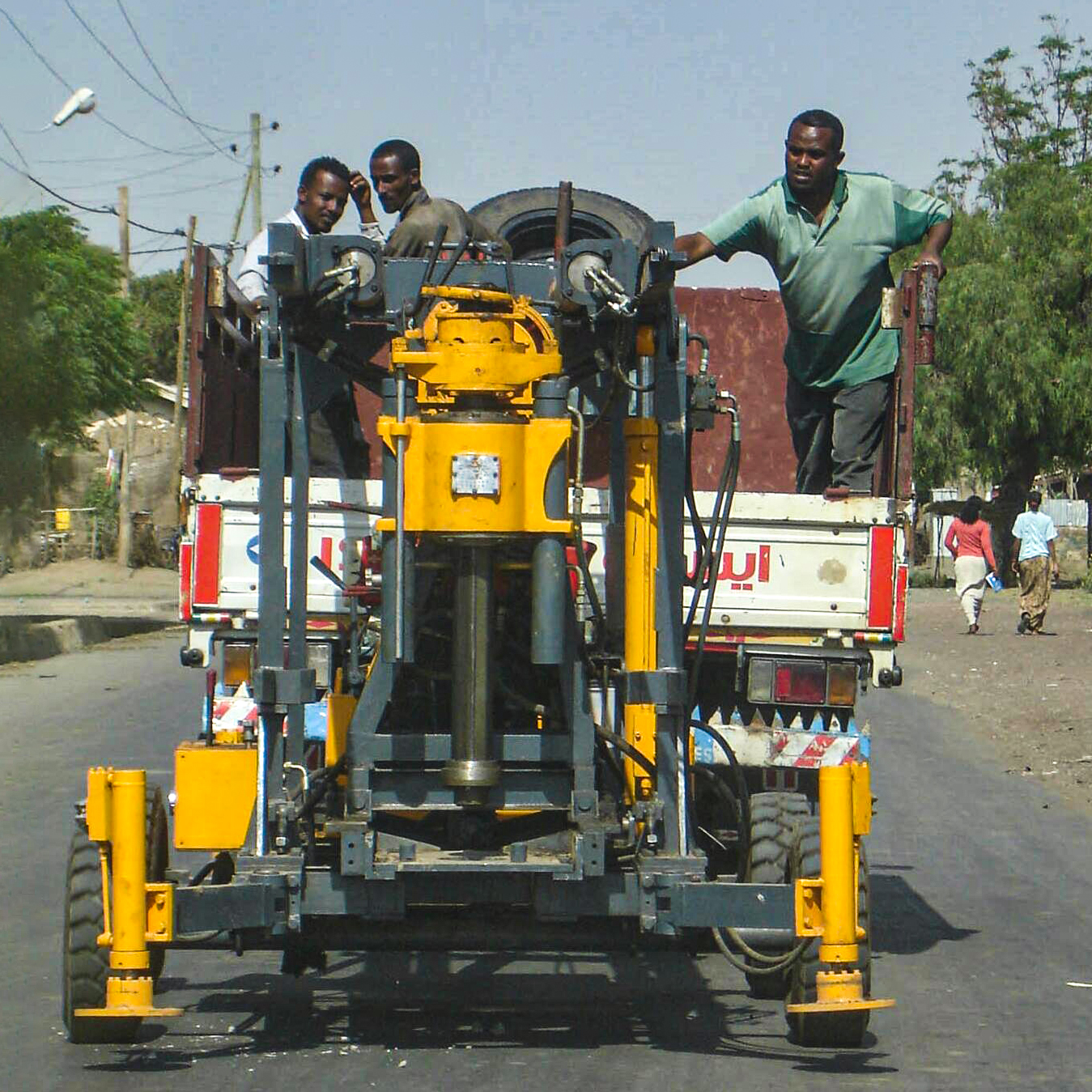

The chassis uses lightweight, cost-effective tires that effectively minimize traveling mechanism noise and vehicle body vibration. This reduces fuel consumption and allows travel on paved urban streets without causing surface damage.
The rig is powered by a ZS1105 type diesel engine. It features a rated power output of 12.1 KW and operates at a rated speed of 2200 r/min, incorporating an electric start system to simplify operations.
Equipped with four short hydraulic legs, the system allows for fast adjustment and leveling of the drilling platform, serving as robust auxiliary supports during work.
Yes, the drilling rig features an integrated bottom hole pressure gauge, which provides operator monitoring of drilling pressure throughout the process.
