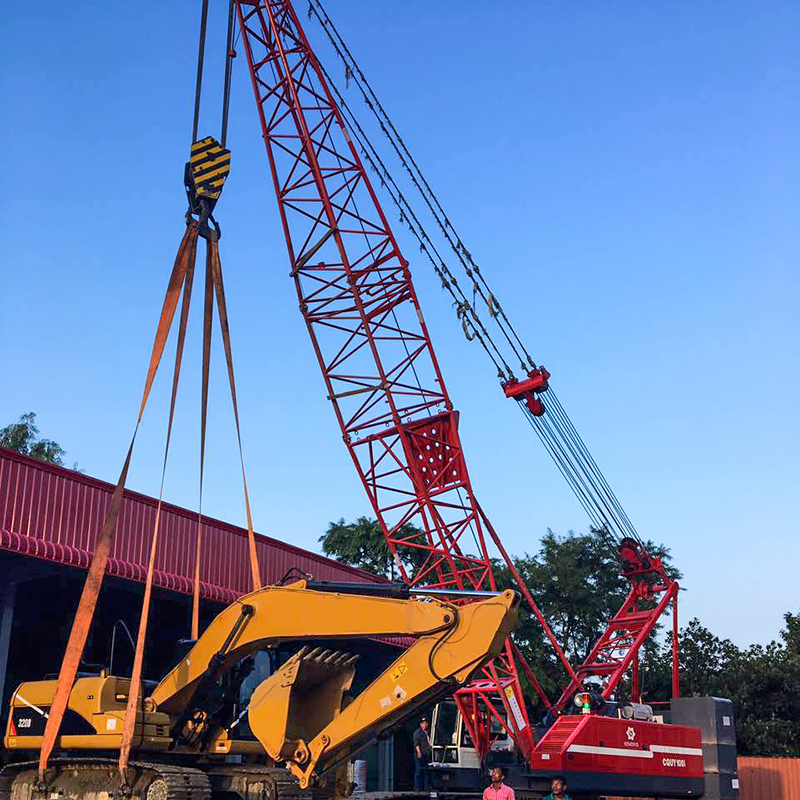

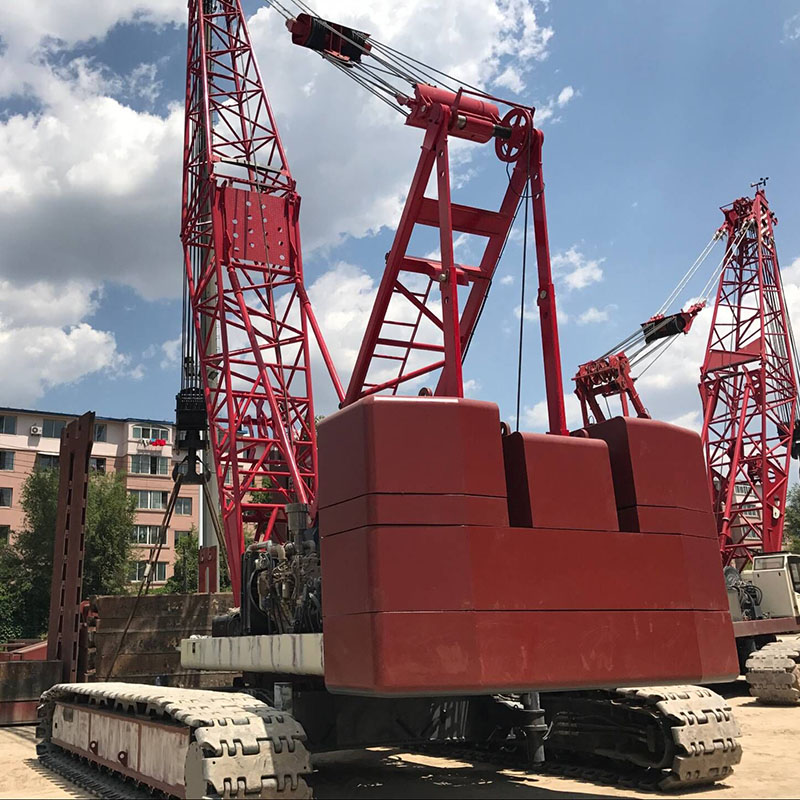

OEM CQUY100 Hydraulic Crawler Crane Factories, Product

1. The main components of the power system and hydraulic diversion are equipped with imported parts; 2. Optional self loading and unloading function, easy to disassemble and assemble; 3. The fragile and consumable structural parts of the whole machine are self-made parts, and the unique structural design, which is convenient for maintenance and low cost;

Send Inquiry

Product Description

Item			Unit	Data
Max. rated lifting capacity			t	100
Boom length			m	13-61
Fixed jib length			m	9-18
Boom+fixed jib max. length			m	52+18
Hook blocks			t	100/50/25/9
Working speed	Rope speed	Main winch hoist, lower (rope dia. Φ22mm)	m/min	105
		Aux. winch hoist, lower (rope dia. Φ22mm)	m/min	105
		Boom hoist, lower (rope dia. Φ18mm)	m/min	60
	Slewing Speed		r/min	2.5
	Travel Speed		km/h	1.5
Single line pull			t	8
Gradeability			%	30
Engine			KW/rpm	194/2200(domestic)
Slewing radius			mm	4737
Transport dimension			mm	1172035003500
Crane mass (with basic boom & 100t hook)			t	93
Ground bearing pressure			Mpa	0.083
Counter weight			t	29.5

The main components of the power system and hydraulic diversion are equipped with imported parts.

Optional self loading and unloading function, easy to disassemble and assemble.

The fragile and consumable structural parts of the whole machine are self-made parts with a unique structural design that is convenient for maintenance and low cost.

Most of the machines are sprayed with a dust-free paint automatic assembly line.

Fully complies with European CE standards.

Frequently Asked Questions

Q: What is the maximum rated lifting capacity of this hydraulic crawler crane?

The maximum rated lifting capacity of this crawler crane is 100 tonnes.

Q: What are the boom and fixed jib configurations?

The crane is equipped with a boom length ranging from 13m to 61m, and a fixed jib length of 9m to 18m. The maximum combined length of the boom and fixed jib is 52m + 18m.

Q: Are key power and hydraulic parts domestic or imported?

The main components of the power system and hydraulic diversion systems are equipped with high-quality imported parts to ensure reliable performance.

Q: What safety and quality certifications does this crane hold?

This crane is built in compliance with European CE standards, meeting high international safety and operational regulations.

Q: How is maintenance handled for fragile structural parts?

Fragile and consumable structural parts are designed and self-manufactured in-house. This unique structural configuration allows for easy maintenance, high availability, and lower maintenance costs.

Q: Is the crawler crane easy to assemble and transport?

Yes, it features an optional self-loading and unloading function, making the crane easy to assemble, disassemble, and transport between job sites.
