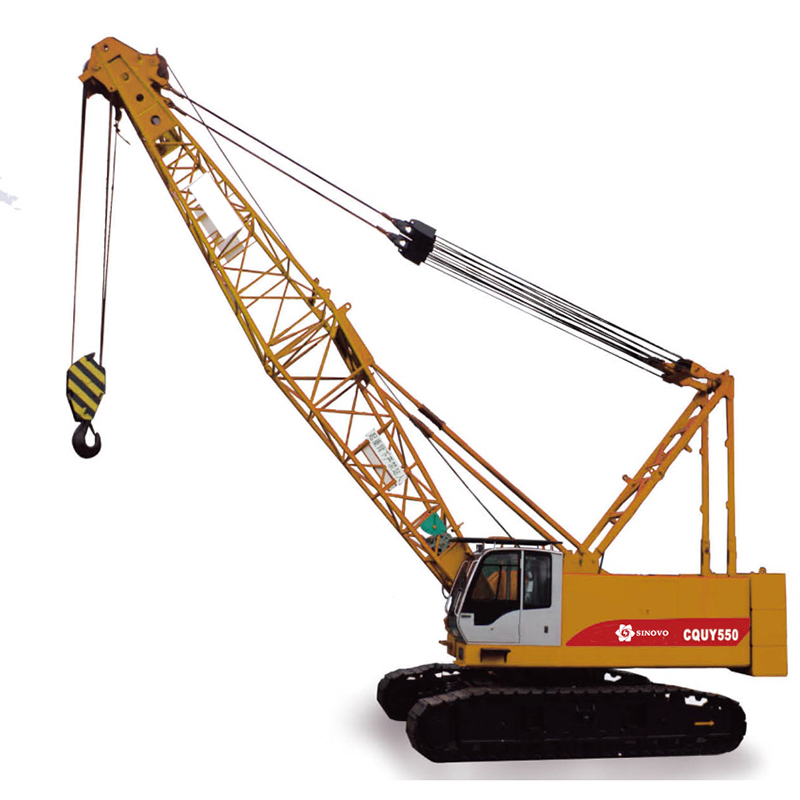

Cheap CQUY55 Hydraulic Crawler Crane Manufacturer, Pricelist

The main boom main chord adopts high-strength thin-arm steel pipe, which is light in weight and greatly improves the lifting performance; Complete safety devices, more compact and compact structure, suitable for complex construction environment;

Send Inquiry

Product Description

Key Features & Advantages

The main boom main chord adopts high-strength thin-arm steel pipe, which is light in weight and greatly improves the lifting performance.
Complete safety devices, more compact and compact structure, suitable for complex construction environment.
The unique gravity lowering function can save fuel consumption and improves work efficiency.
With rotary floating function, it can achieve high-altitude accurate positioning, and the operation is more stable and safe.
The fragile and consumable structural parts of the whole machine are self-made parts, which are unique structural design, convenient maintenance and low cost.

Technical Specifications

Item			Unit	Data
Max. rated lifting capacity			t	[email protected]
Boom length			m	13-52
Fixed jib length			m	9.15-15.25
Boom+fixed jib max. length			m	43+15.25
Boom derricking angle			°	30-80
Hook blocks			t	55/15/6
Working speed	Rope speed	Main winch hoist, lower (rope dia. Φ20mm)	m/min	110
		Aux. winch hoist, lower (rope dia. Φ20mm)	m/min	110
		Boom hoist, lower (rope dia. Φ16mm)	m/min	60
	Slewing Speed		r/min	3.1
	Travel Speed		km/h	1.33
Reevings				9
Single line pull			t	6.1
Gradeability			%	30
Engine			KW/rpm	142/2000 (imported) 132/2000 (domestic)
Slewing radius			mm	4230
Transport dimension			mm	740033003170
Crane mass (with basic boom & 55t hook)			t	50
Ground bearing pressure			MPa	0.07
Counter weight			t	16+2

Frequently Asked Questions (FAQ)

Q: What is the maximum rated lifting capacity of this crane?

The crane has a maximum rated lifting capacity of 55 tonnes at a working radius of 3.5 meters.

Q: What are the boom and fixed jib length options?

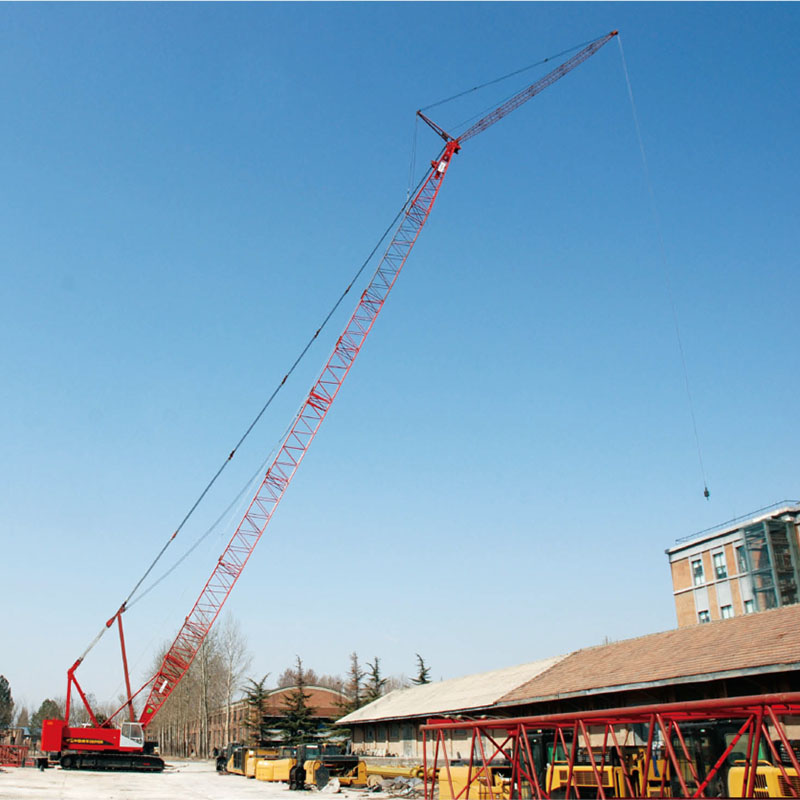

The main boom length ranges from 13 to 52 meters, while the fixed jib length ranges from 9.15 to 15.25 meters. The maximum combined configuration is 43 meters of boom plus 15.25 meters of fixed jib.

Q: What type of engine configuration does this machinery use?

It offers dual configuration options: an imported engine rated at 142 KW/rpm and a domestic engine option rated at 132 KW/rpm.

Q: How does the gravity lowering function benefit construction operations?

The unique gravity lowering function enables efficient load descending by using the object's gravity, which significantly reduces fuel consumption and increases overall working efficiency.

Q: What are the transport dimensions of the crane?

The shipping transport dimensions are 7400 mm in length, 3300 mm in width, and 3170 mm in height, allowing for convenient logistics planning.

Q: Is this crane suitable for confined or complex construction environments?

Yes, its compact and optimized structural design, paired with complete safety systems and a rotary floating function, makes it highly suited for precise operations in confined and complex job sites.
