| Parameter Details | |
|---|---|
| Engine Power | 153/2200KW |
| Max Thrust force | 350/700KN |
| Max Pullback force | 350/700KN |
| Max Torque | 13000/15800N.M |
| Max Rotary speed | 138rpm |
| Max Moving speed of power head | 38m/min |
| Max Mud pump flow | 400L/min |
| size(L*W*H) | 6800x2240x2260mm |
| Weight | 11T |
| Diameter of drilling rod | φ73mm |
| Length of drilling rod | 3m |
| Max diameter of pullback pipe | φ1200mm |
| Max construction length | 450m |
| Incidence Angle | 11~20° |
| Climbing Angle | 15° |
Equipped with a Dongfeng Cummins engine, offering strong power, stable performance, low fuel consumption, and low noise, which makes it ideal for urban construction. The system adopts a Pomke hydraulic gear pump, and the push-pull rotating hydraulic system features series parallel control technology with first-class hydraulic components for energy-saving, efficient rotating push-pull pilot control.
The power head's rotation is directly driven by Eaton's high torque cycloidal motor, achieving high torque, stable performance, and two levels of stepless speed regulation. The push-pull of the power head utilizes Eaton's cycloidal motor with three selectable levels of speed, including reserved push-pull force enhancing devices to expand construction scope and assist in engineering rescue.

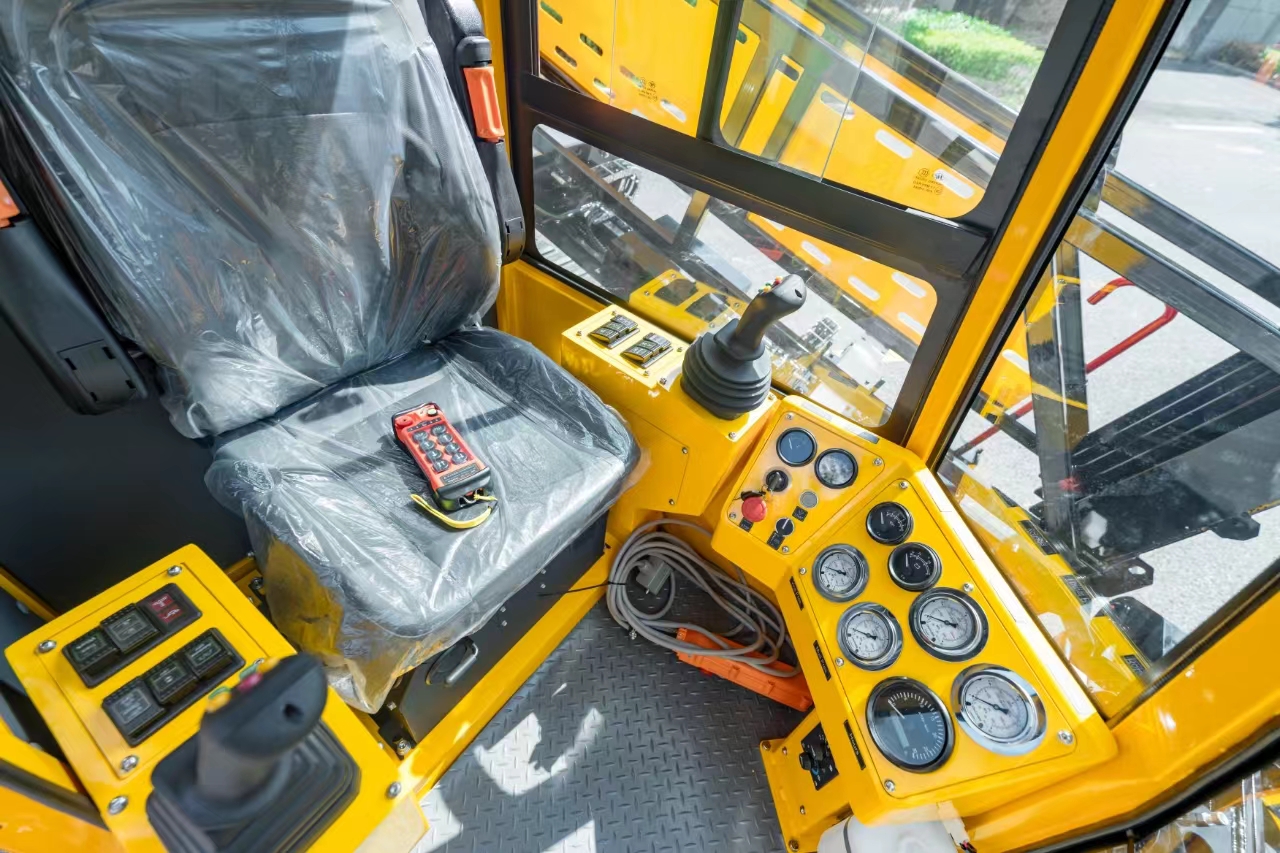

Features a rotatable operating table designed with ergonomics and equipped with high-end seats that adjust forward and backward. This offers a wide visual range alongside comfortable operation. It uses a first-class hydraulic walking drive device with wire-controlled operation for fast loading, unloading, and site transfer.
Equipped with medium 73/medium 76/∆ 83 x3000mm drill rods, the body occupies a moderate area, meeting narrow site limits. The overall advanced design concept improves construction efficiency by 30% while reducing labor intensity with high automation and a standard robotic arm.
Features a streamlined European and American style appearance. Circuit design is simplified for a low failure rate and easy maintenance, ensuring convenient repairs and reflecting a user-friendly, people-oriented design concept.
