China VY Series Hydraulic Static Pile Driver Supplier, Products

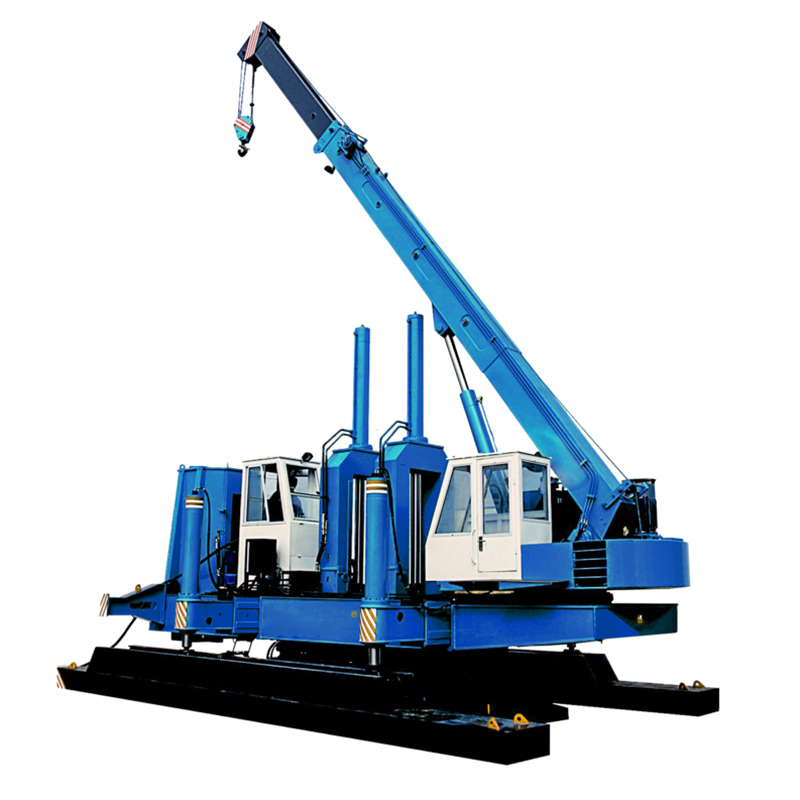

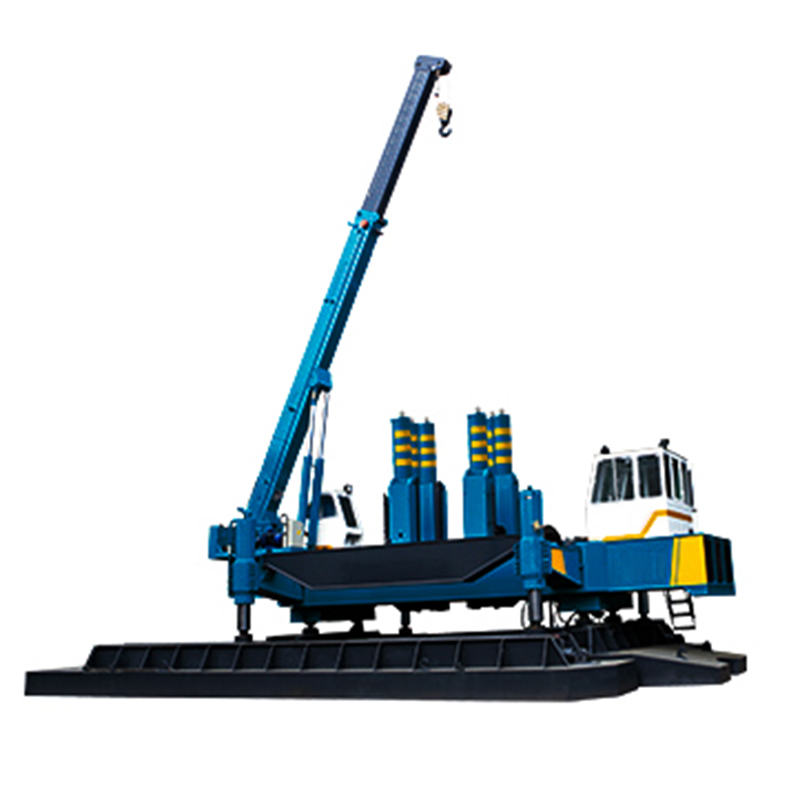

VY series hydrauic static pile driver is a new environmentally friendly pile foundation construction equipment with a number of national patents. It has the features of no polution, no noise, no vibration, and fast pile driving, high quality pile. It is represent the future development tendency of pilling machinery. VY series hydraulic static pile driver has more than 10 varieties, the pressure capacity from 60 tons to 1200 tons. Using high quality materials and components, adopting the unique hydraulic piping design and processing methods ensures the clean and highly reliability of hvdraulic system, Hich quality is guaranteed from the headstream, We provide the best service and personalized design with the concept "All for the customers".

Send Inquiry

Product Description

Model Parameter		VY128A	VY208A	VY268A	VY368A	VY468A	VY618A	VY728A	VY868A	VY968A	VY1068A	VY1208A
Max.piling pressure(tf)		128	208	268	368	468	618	728	868	968	1068	1208
Max.piling speed(m/min)	Max	6.9	8.9	6.9	6.8	6.1	8.7	7.9	7.4	7.4	8.1	6.7
Max.piling speed(m/min)	Min	1.9	1.3	0.9	1.1	0.9	1	0.9	0.9	0.8	0.7	0.6
Piling stroke(m)		1.6	1.6	1.6	1.6	1.8	1.8	1.8	1.8	1.8	1.8	1.8
Move stroke(m)	Longitudinal Pace	1.6	2.2	3	3	3.6	3.6	3.6	3.6	3.6	3.6	3.6
Move stroke(m)	Horizontal Pace	0.4	0.5	0.6	0.6	0.6	0.6	0.7	0.7	0.7	0.7	0.7
Slewing angle(°)		12	12	12	10	10	10	10	8	10	8	8
Rise stroke(mm)		1580	1580	900	1000	1000	1100	1100	1100	1100	1100	1100
Pile type (mm)	Square pile	F200-F350	F200-F400	F300-F500		F300-F600					F400-F800
Pile type (mm)	Round pile	Ф200-Ф350	Ф200-Ф400	Ф300-Ф500		Ф300-Ф600					Ф400-Ф800
Min.Side Pile Distance(mm)		390	750	900	1005	1190	1610	1610	1720	1720	/	/
Min.Corner Pile Distance(mm)		1100	1400	1370	1480	1660	1785	1785	2055	2055	/	/
Crane	Max.hoist weight(t）	8	8	12	12	12	16	16	25	25	25	30
Crane	Max.pile length(m)	13	13	14	14	14	15	15	16	16	16	16
Power(kW)	Main engine	45	45	45	74	74	111	119	135	135	135	135
Power(kW)	Crane engine	22	22	30	30	30	30	30	45	45	45	45
Overall dimension(mm)	Work length	8000	10000	10500	12000	12000	13800	14000	14500	14800	15200	16000
	Work width	4110	4880	6310	6488	7320	8190	8290	8530	8910	9010	9110
	Transportation height	3250	3300	3176	3146	3146	3310	3310	3400	3475	3495	3845 (3455)
Total weight(t)		130	210	270	370	470	620	730	870	970	1070	1210

Frequently Asked Questions (FAQ)

What is the range of Max. piling pressure for the VY Series?

The VY Series Hydraulic Static Pile Driver offers a wide pressure range to accommodate different construction scales, starting from 128 tf (VY128A) up to a maximum of 1208 tf (VY1208A).

What pile types and sizes are compatible with these static pile drivers?

The series supports both square piles and round piles. Size compatibility ranges from F200-F350 mm for smaller models up to F400-F800 mm (and Ф400-Ф800 mm) for the heavy-duty VY1068A and VY1208A models.

How does the integrated crane capacity differ across the models?

The maximum hoisting weight of the integrated crane starts at 8 tons for the VY128A / VY208A models, increasing up to 30 tons for the VY1208A model, allowing for different pile lengths and weight options.

What is the minimum distance required for side and corner piling?

The minimum side pile distance ranges from 390 mm to 1720 mm, while the minimum corner pile distance ranges from 1100 mm to 2055 mm, depending on the machine size and model configurations.

What are the power requirements for the main engine and the crane engine?

Main engine power ranges from 45 kW to 135 kW, and the crane engine power ranges from 22 kW to 45 kW, ensuring reliable static pressure generation and efficient hoisting operations.
