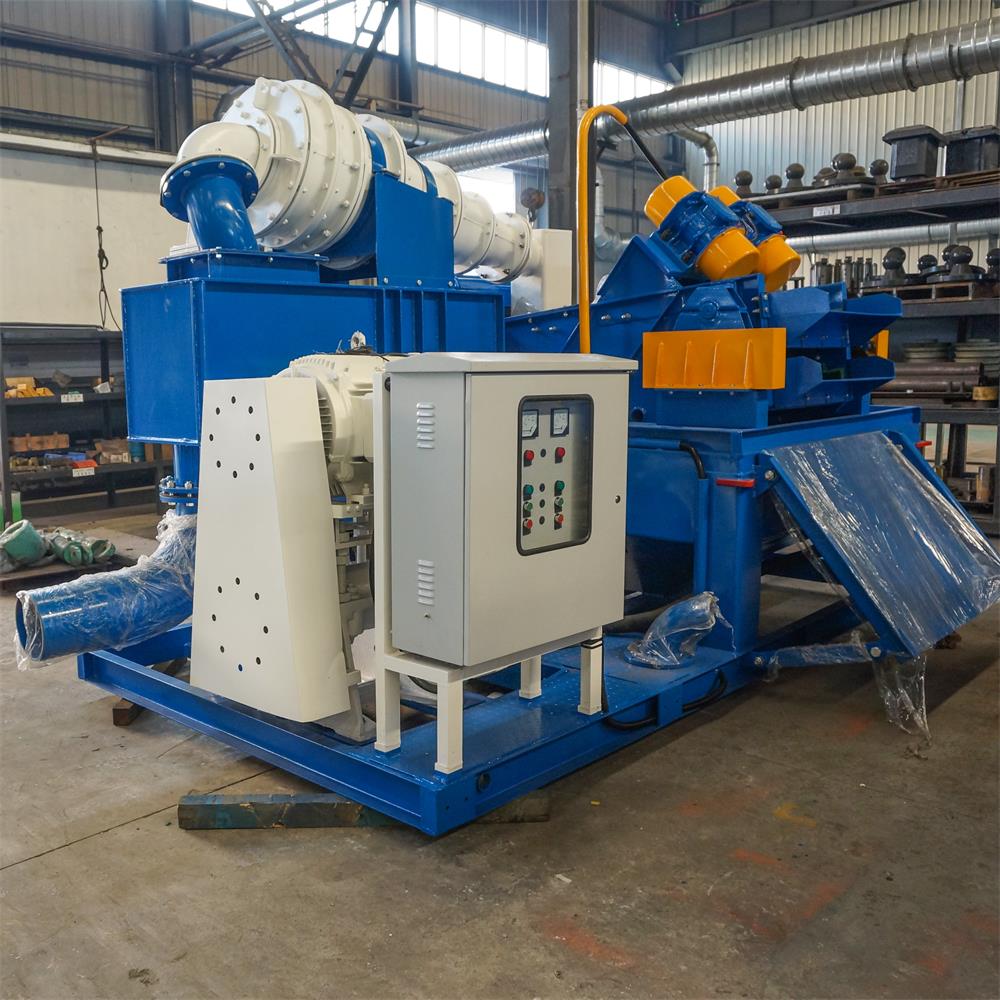

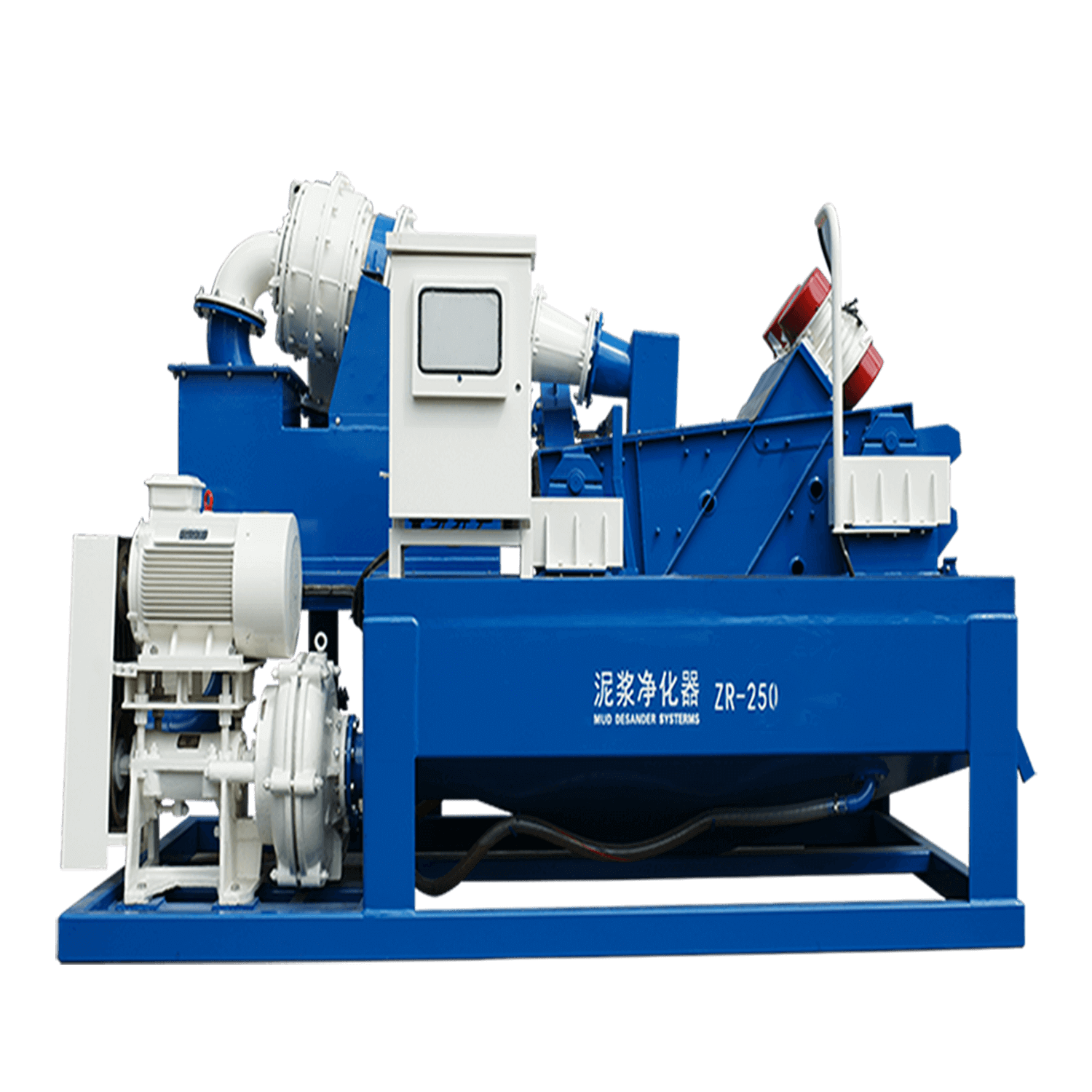

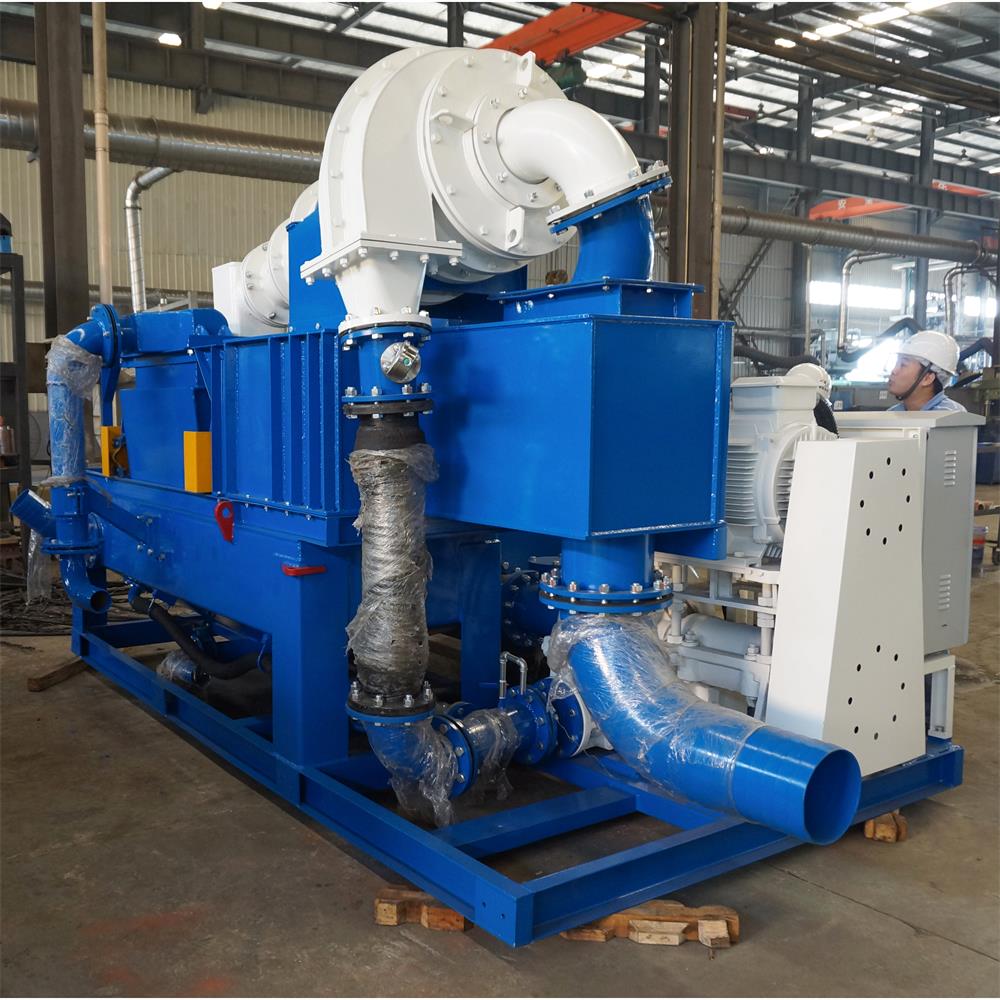

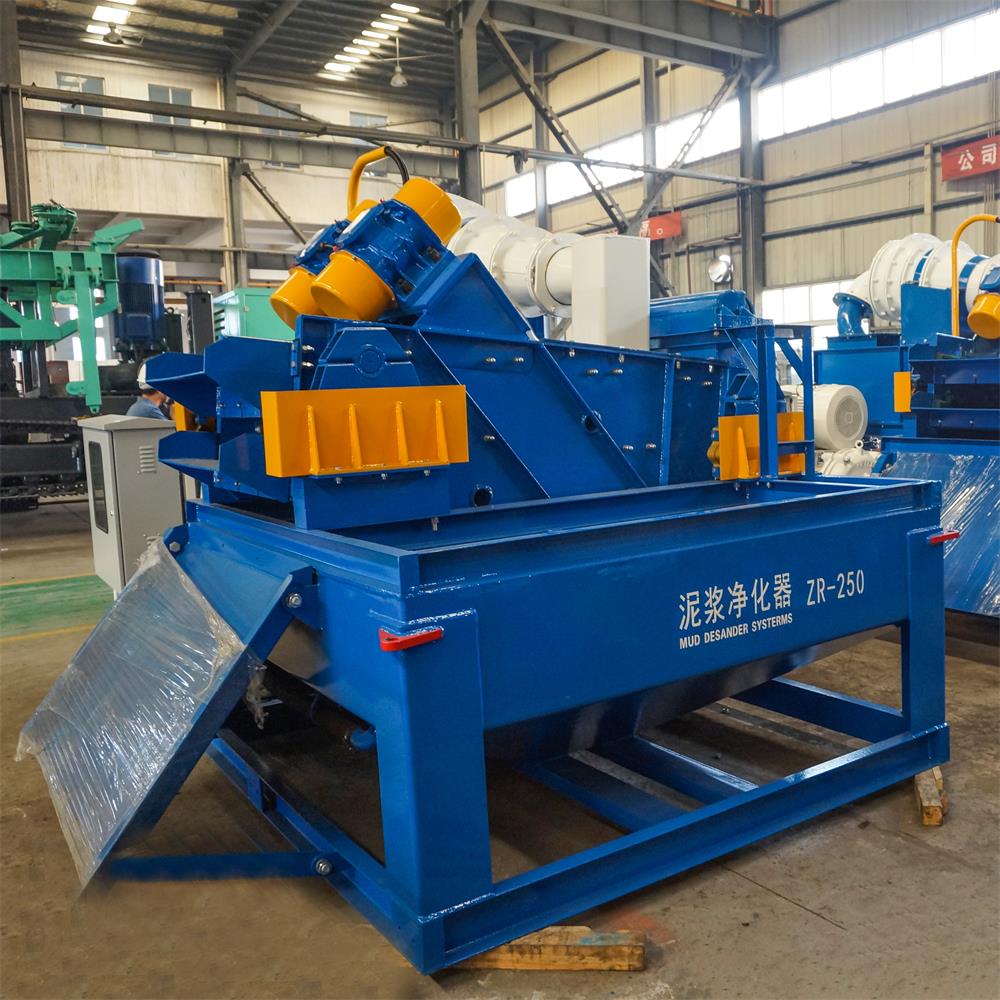

ZR250 mud desander is used to separate the mud, sand and gravel discharged by the drilling rig, part of the mud can be pumped back to the bottom of the hole for reuse. ZR series mud desander is mainly applicable to the mud purification and recovery system for pile foundation engineering, slurry balance shield construction and slurry pipe jacking construction with slurry wall protection and circulating drilling technology. This series of products can effectively reduce the construction cost and improve the construction efficiency. It is a necessary equipment for foundation construction.
| Name |
ZR250 |
| Maximum mud processing capacity /m/h |
250 |
| Desanding separation particle size /mm |
d50=0.06 |
| Slag screening capacity /t/h |
25-80 |
| Maximum water content of slag/% |
<30 |
| Maximum specific gravity of sludge /g/cm |
<1.2 |
| Maximum specific gravity that can handle sludge /g/cm |
<1.4 |
| Total installed power /Kw |
58(55+1.5*2) |
| Equipment dimensions /KG |
5300 |
| Equipment dimensions /m |
3.54*2.25*2.83 |
| Vibration motor power/KW |
3(1.5*2) |
| Vibration motor centrifugal force /N |
30000*2 |
| Mortar pump input power /KW |
55 |
| Mortar pump displacement /m/h |
250 |
| Cyclone separator (diameter)/mm |
560 |
| Main components/set |
This series includes 1 mud tank, 1 combined filter (coarse filtration and fine filtration) |
Note: The maximum specific gravity of the sludge: the maximum specific gravity of the sludge when the maximum purification and sand removal efficiency is reached, the viscosity of the Markov funnel is below 40s(the viscosity of the Sauce funnel is below 30s), and the solid content is <30%
-
1
Fully purify the mud, effectively control the performance index of the mud, reduce the Sticking Accident and improve the hole forming quality.
-
2
The slurry is recycled to save slurry making materials. Greatly reduce the outward transportation cost and pulp making cost of waste pulp.
-
3
The effective separation of mud and sand by the equipment is conducive to improving the drilling efficiency.
-
4
Safe and convenient operation, simple maintenance, stable and reliable operation.
Frequently Asked Questions
FAQ What is the primary function of the ZR250 mud desander?
The ZR250 mud desander is designed to separate mud, sand, and gravel discharged by drilling rigs during construction. A portion of the purified mud can then be pumped back to the bottom of the hole for reuse.
FAQ Which construction applications is the ZR series mud desander suitable for?
It is mainly applicable to mud purification and recovery systems for pile foundation engineering, slurry balance shield construction, and slurry pipe jacking construction involving slurry wall protection and circulating drilling technology.
FAQ What is the maximum processing capacity and separation particle size of this equipment?
The ZR250 mud desander features a maximum mud processing capacity of 250 m³/h and achieves a desanding separation particle size of d50=0.06 mm.
FAQ How does the ZR250 mud desander help lower project costs?
By recycling slurry, the desander saves on raw slurry-making materials. It significantly reduces the transportation costs of disposing of waste pulp as well as overall pulp production costs.
FAQ What are the power requirements and key components of the system?
The total installed power is 58 kW (including a 55 kW mortar pump and two 1.5 kW vibration motors). The main components consist of 1 mud tank and 1 combined filter system providing both coarse and fine filtration.
